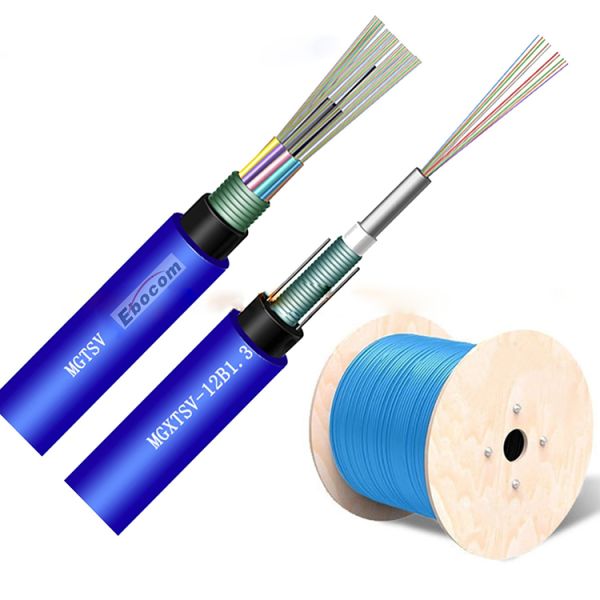

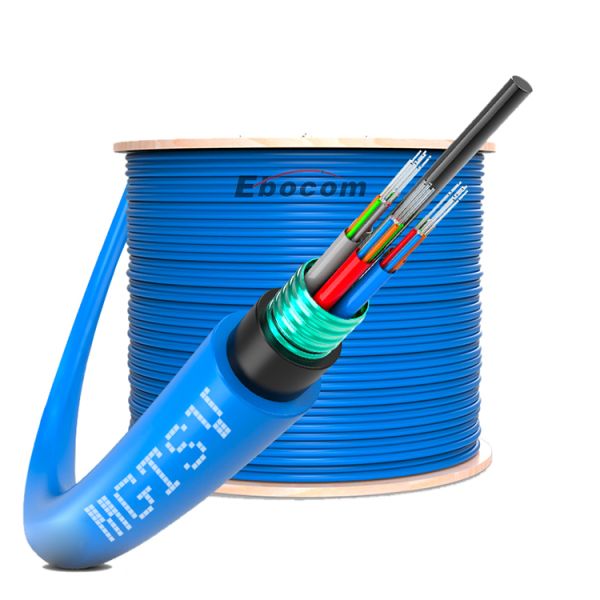

MGTSV Flame Retardant Mining Fiber Optical Cable 2-144 Cores for Mining Application Strength Member Steel Wire Tape
MGTSV Flame Retardant Mining Fiber Optical Cable 2-144 Cores for Mining Application Strength Member Steel Wire Tape
MGTSV Flame Retardant Mining Fiber Optical Cable 2-144 Cores for Mining Application Strength Member Steel Wire Tape
MGTSV Flame Retardant Mining Fiber Optical Cable 2-144 Cores for Mining Application Strength Member Steel Wire Tape
MGTSV Flame Retardant Mining Fiber Optical Cable 2-144 Cores for Mining Application Strength Member Steel Wire Tape
MGTSV Flame Retardant Mining Fiber Optical Cable 2-144 Cores for Mining Application Strength Member Steel Wire Tape
Specifications
Brand Name :
EBOCOM
Model Number :
MGTSV
Certification :
ISO TLC
Place of Origin :
Shandong，China
MOQ :
2000M
Price :
EXW ≥2000m $0.25/M ≥5000m $0.24/M
Payment Terms :
T/T
Supply Ability :
10KMS/day
Delivery Time :
7-15 days
Packaging Details :
1. Iron-wooden drum or non-fumigation wooden drum,normal wooden drum. 2. Drum size can be designed,details will calculation for suitable for containers.
Cable Model :
MGTSV fiber optic cable
Strength Member :
steel wire tape
Material of Jacket :
PE Flame Retardant PE/lszh
Tube :
Central Loose Tube
Bend Radius :
Static 10*Cable-D Dynamic 20*Cable-D
Operating Temperature :
-40°c~+70°c
color :
black
Fiber count :
4-288cores
Description

Product description

The MGTSV cable is a specialized, flame-retardant fiber optic cable designed specifically for use in underground mines, tunnels, and hazardous industrial environments. It is widely used to support communications, video surveillance, and intelligent monitoring systems where safety and durability are paramount.

MGTSV Flame Retardant Mining Fiber Optical Cable 2-144 Cores for Mining Application Strength Member Steel Wire Tape

Application

Underground Mining: Provides reliable voice, data, and image transmission for coal, gold, and iron ore mines.Tunnel & Transit Systems: Used extensively in subway systems and highway tunnels to establish robust emergency communication networks.Hazardous Atmospheres: Its explosion-proof and flame-retardant properties make it ideal for high-risk and petrochemical fields

3. Structure parameters:

Counts 2-30 32-36 38-60 62-72 74-96 98-120 122-144
Max.fiber counts per tube 6 6 12 12 12 12 12
Units(Tubes or Fillers) 6 6 6 6 8 10 12
Cable Diameter(mm) 10.6 11.2 11.5 12.1 13 14.6 15.8
Weight(Kg/km) 74 75 75 75 100 120 143
Fiber Type G652D G657A1 A2 50/125 62.5/125
Tensile Strength(N) Long/Short Term:1900/4800
Crush Resistance(N/100mm) Long/Short Term:300/1000
Bending Radius(mm) Static/Dynamic:10D/20D
Temperature(ºC) Storage /Operation:-40ºC~70ºC
