Specifications
Model Number :
OPGW-48B1-50[51;9]
Custom :
Customized Available
Strengthening Structure :
FRP Strength Member
Brand Name :
EBOCOM
Jacket Color :
black or as requested
MOQ :
2000m
Delivery Time :
5-8days
Length :
2/3/4km one drum
Cable Type :
Non metal self-supporting
Payment Terms :
T/T
Cores :
48cores
Central Strength Menber :
FRP
Supply Ability :
4000MS/day
Material Shape :
Round wire
Price :
EXW ≥2000m $900/KM ≥10000m $895/KM
Cable Color :
Black
Structure :
Loose tube
Certification :
ISO TLC
Place of Origin :
China
Production Capacity :
200km Per Day
Packaging Details :
1. Iron-wooden drum or non-fumigation wooden drum,normal wooden drum. 2. Drum size can be designed,details will calculation for suitable for containers.
Customization :
Available
Fibercount :
Typically 2 to 144 fibers
Package :
Wooden Drum/Customized
Fiber Options :
Itu G652D, G657A, Om1, Om2, Om3, Om4
Description
OPGW 72B1-150 Optical Ground Wire Cable 72 96 144 Core for 110KV 220KV Transmission Lines
Product Overview

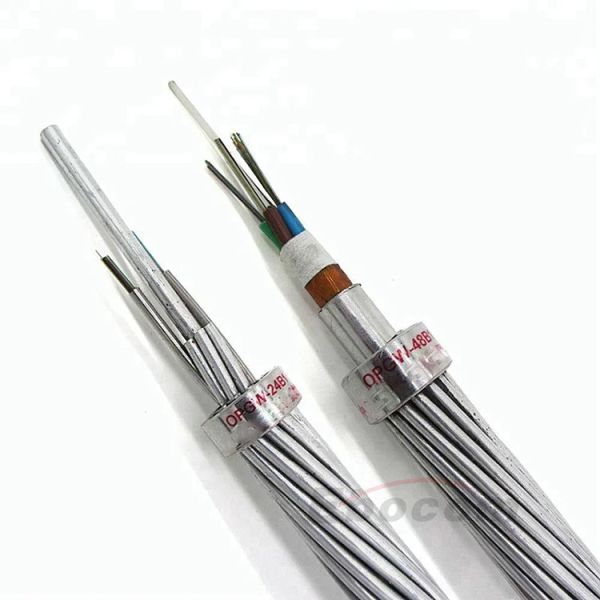

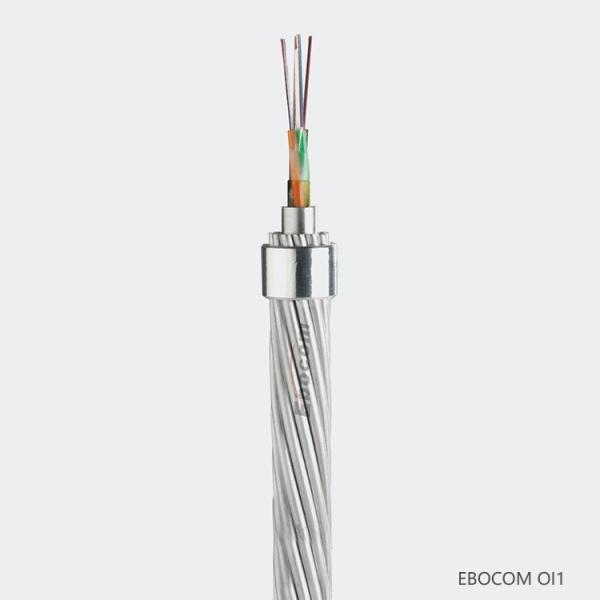

Our OPGW 72B1-150 Optical Ground Wire Cable is engineered for high-voltage power transmission systems, offering the dual function of a traditional ground wire and a high-capacity fiber optic communication line. Specifically designed for 110KV and 220KV transmission towers, this overhead line provides exceptional mechanical strength and superior short-circuit current capacity.

With options ranging from 72, 96, to 144 cores, this OPGW cable utilizes premium single-mode fibers (G.652D/B1) housed in lightning-resistant stainless steel tubes, ensuring uninterrupted data transmission under extreme environmental conditions.

Key Features
  • Dual Functionality: Serves as both a reliable grounding wire and a high-speed fiber optic communication backbone.
  • Excellent Short-Circuit Capacity: The 150mm² cross-section design handles high fault currents safely on 110KV and 220KV networks.
  • Robust Protection: Stainless steel loose tubes offer superior mechanical shielding against lightning strikes, wind loading, and ice.
  • High Fiber Count Availability: Easily scalable with 72, 96, or 144 core configurations to support future telecom expansion.
  • Long Lifespan: Anti-corrosion aluminum-clad steel wires ensure a service life matching or exceeding the power grid infrastructure.
Technical Specifications
Parameter Specifications
Product Type OPGW (Optical Ground Wire)
Model OPGW-72B1-150 / Customized
Fiber Count 72 Core, 96 Core, 144 Core
Fiber Type G.652D (B1.3) Single-mode Fiber
Cross Section Area 150 mm²
Application Voltage 110KV, 220KV, 500KV Overhead Transmission Lines
Structure Stainless Steel Tube Center/Layer Stranded
Outer Wire Material Aluminum-Clad Steel Wire (ACS) & Aluminum Alloy Wire (AA)
Short-Circuit Capacity High Fault Current Rating
Standards Compliant IEEE 1138, IEC 60794-4-10
OPGW 72B1-150 Optical Ground Wire Cable 72 96 144 Core for 110KV 220KV Transmission Lines
Applications

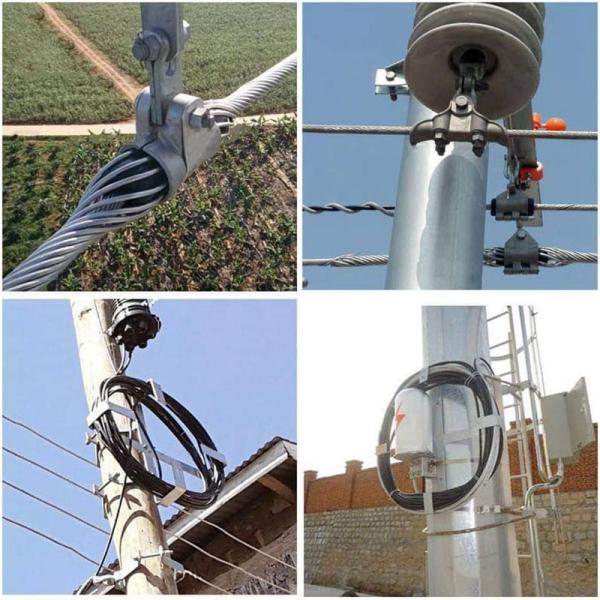

  • Overhead electrical power lines rehabilitation and upgrades (110KV and 220KV grids)
  • High-voltage transmission tower grounding and telecommunications routing
  • Smart grid infrastructure, substation automation, and long-distance backbone networks
Looking for a Reliable OPGW Cable Manufacturer?

We offer high-quality OPGW 72B1-150 cables with customizable fiber counts (72, 96, 144 core) tailored to your grid requirements. To save your logistics costs and project time, we also provide a one-stop sourcing service for all matching hardware and accessories (tension clamps, suspension clamps, and joint boxes) shipped in the same container.
