Flame Retardant Mining Fiber Cable MGTSV G652D 96 core Double Armoured for Communication
Flame Retardant Mining Fiber Cable MGTSV G652D 96 core Double Armoured for Communication
Flame Retardant Mining Fiber Cable MGTSV G652D 96 core Double Armoured for Communication
Flame Retardant Mining Fiber Cable MGTSV G652D 96 core Double Armoured for Communication
Flame Retardant Mining Fiber Cable MGTSV G652D 96 core Double Armoured for Communication
Flame Retardant Mining Fiber Cable MGTSV G652D 96 core Double Armoured for Communication
Specifications
Model Number :
MGTSV
Fiber count :
4-288cores
MOQ :
2000M
Delivery Time :
7-15 days
color :
black
Payment Terms :
T/T
Strength Member :
steel wire tape
Operating Temperature :
-40°c~+70°c
Price :
EXW ≥2000m $0.7/M ≥5000m $0.68/M
Material of Jacket :
PE Flame Retardant PE lszh
Supply Ability :
10KMS/day
Cable Model :
MGTSV fiber optic cable
Bend Radius :
Static 10*Cable-D Dynamic 20*Cable-D
Delivery date :
7-15DAYS
Certification :
ISO TLC
Brand Name :
EBOCOM
Fiber type :
G652D G657A1 G657A2
Place of Origin :
Shandong，China
Packaging Details :
1. Iron-wooden drum or non-fumigation wooden drum,normal wooden drum. 2. Drum size can be designed,details will calculation for suitable for containers.
Description

Product description

MGTSV cable is a specialized, flame-retardant fiber optic cable specifically engineered for underground mining operations and communication networks in hazardous environments.

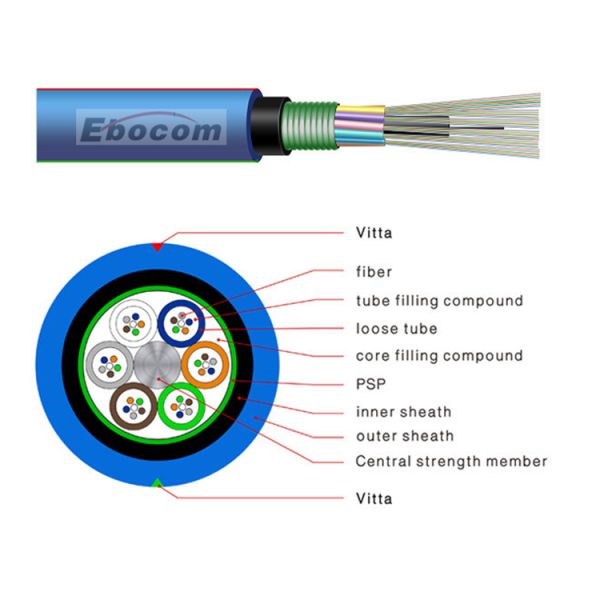

MG: Designed for mining applications (underground coal, gold, or iron mines).T: Filled structure (typically a water-blocking gel or compound inside the tubes).S: Steel tape armor (provides mechanical strength, crush resistance, and rodent protection).V: PVC (Polyvinyl Chloride) outer sheath, which provides flame retardancy and distinctive coloring

Application

Coal mines, gold mines, iron ore mines, and tunnel shafts.

Flame Retardancy: Crucial for mitigating safety risks and preserving structural communication lines during mining accidents.Mechanical Armor: Corrugated steel tape shielding prevents rat bites and high-impact physical crushing from shifting underground terrain.

High Identifiability: Often manufactured with a bright blue flame-retardant PVC jacket, making it easy to identify underground

2.Features

Excellent fire resistance.

High-strength, hydrolysis-resistant loose-sleeve tubing.

Double-layer wrapping and single-layer reinforcement design provide superior compressive strength, waterproofing, and rodent resistance. The loose-sleeve tubing is wrapped in non-woven fabric for waterproofing. Special internal filling ensures optimal fiber protection.

Blue PVC outer layer: fire resistant; blue for easy identification.

Compressive strength and flexibility.

3. Technical parameters

Cable Type Fiber Count Tubes+Fills Cable Diameter
mm		 Cable Weight
Kg/km

Tensile Strength

Long/Short

Term N

Crush Resistance
Long/Short

Term N/100m

 Bending Radius
Static/Dynamic
mm
MGTSV-2～6 2～60 5 12.2 156 1000/2000 500/1500 15D/30D
MGTSV-62～72 62～72 6 13.8 210 1750/3500 500/1500 15D/30D
MGTSV-74～96 74～96 8 15.1 242 1750/3500 500/1500 15D/30D
MGTSV-98～120 98～120 10 17.2 280 1750/3500 500/1500 15D/30D
MGTSV-122～144 122～144 12 19.0 320 1750/3500 500/1500 15D/30D
MGTSV-146～216 146～216 18 19.0 320 1750/3500 500/1500 15D/30D
