MGTSV Flame Retardant Cable 72 Cores G652D G657A1 for Duct Mine Mining Application
MGTSV Flame Retardant Cable 72 Cores G652D G657A1 for Duct Mine Mining Application
MGTSV Flame Retardant Cable 72 Cores G652D G657A1 for Duct Mine Mining Application
MGTSV Flame Retardant Cable 72 Cores G652D G657A1 for Duct Mine Mining Application
MGTSV Flame Retardant Cable 72 Cores G652D G657A1 for Duct Mine Mining Application
MGTSV Flame Retardant Cable 72 Cores G652D G657A1 for Duct Mine Mining Application
MGTSV Flame Retardant Cable 72 Cores G652D G657A1 for Duct Mine Mining Application
MGTSV Flame Retardant Cable 72 Cores G652D G657A1 for Duct Mine Mining Application
Specifications
Material of Jacket :
PE Flame Retardant PE/lszh
color :
black
Fiber count :
4-288cores
Delivery Time :
7-15 days
Payment Terms :
T/T
Supply Ability :
10KMS/day
Operating Temperature :
-40°c~+70°c
Packaging Details :
1. Iron-wooden drum or non-fumigation wooden drum,normal wooden drum. 2. Drum size can be designed,details will calculation for suitable for containers.
Tube :
Central Loose Tube
Place of Origin :
Shandong，China
Certification :
ISO TLC
Bend Radius :
Static 10*Cable-D Dynamic 20*Cable-D
Brand Name :
EBOCOM
Strength Member :
steel wire tape
MOQ :
2000M
Price :
EXW ≥2000m $1.2/M ≥5000m $1.1/M
Model Number :
MGTSV
Cable Model :
MGTSV fiber optic cable
Description

1.Product description

The MGTSV cable is a specialized, flame-retardant optical fiber cable designed specifically for the rigorous, hazardous environments of the mining industry. It provides crucial, uninterrupted communication and data transmission inside underground tunnels, mine shafts, and roadways

MGTSV Flame Retardant Cable 72 Cores G652D G657A1 for Duct Mine Mining Application

2.Features

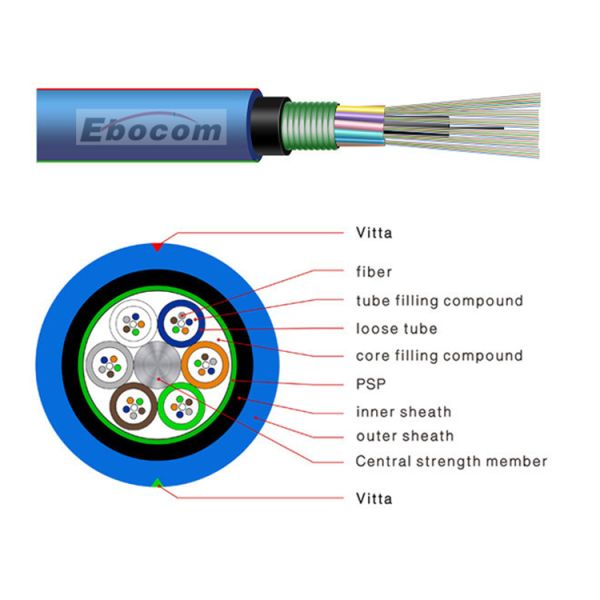

Key Introduction & StructureCore Protection: The cable features a loose-tube, jelly-filled structure that protects the delicate optical fibers from moisture and water damage.

Central Strength Member: A galvanized steel wire provides high tensile strength, preventing the cable from stretching or breaking under heavy stress.

Steel Tape Armor: A corrugated steel tape armor encases the core, protecting it against crush damage, rodent bites (such as rats), and potential impacts from falling rocks or heavy machinery.

Flame-Retardant Jacket: It is typically finished with a robust, flame-retardant blue Polyvinyl Chloride (PVC) or Polyethylene (PE) outer sheath, designed to self-extinguish and prevent the spread of fire

3.Applications
  • Coal & Hard-Rock Mines: Widely used in coal, gold, and iron mines to establish high-speed, reliable monitoring networks.
  • Safety & Emergency Systems: Serves as the lifeline for communication and control systems, ensuring smooth operations and emergency response in accident-prone subterranean areas.
  • Tunnel & Shaft Routing: Ideal for vertical shafts, underground roadways, and complex tunnel environments that require high mechanical and crush resistance.
  • Industrial & Municipal Tunnels: Frequently utilized in subway tunnels, underground pipelines, and transportation systems that demand stringent flame-retardant safety standards
