Specifications
Brand Name :
Yahong
Model Number :
YH50120
Certification :
CE / ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T , L/C , Western Union, MoneyGram
Supply Ability :
100 pcs per month
Delivery Time :
5-7 days after received your payment
Packaging Details :
lining--anti-static film package firstly, waterproof, moistureproof. Intermediate--around the perimeter of the box, there is bubble. Outer--export standard packing, fumigation-free plywood.
Product Name :
Heavy Gantry CNC Cutting Machine
Cutting Material :
Stainless steel , aluminum , iron , carbon steel
LCD Display Dimension :
10.4 inches
Effective Cutting size :
4400*10000mm
Cutting Speed :
0 - 8000 mm/min
Drive Mode :
Bilateral drive
Standard :
CE / ISO
Cutting Mode :
Plasma / Flame
Height Control :
Arc voltage height control
Ignition device :
Auto ignition device
Description

Heavy Gantry Flame / Plasma Cutting CNC Machine 4400 * 10000 mm Servo Motor

Description:

Heavy Gantry CNC plasma cutter is an excellent model designed and manufactured by Xuzhou Yahong CNC Equipment Factory. Its main characteristics is that this model uses bilateral drive mode so that the machine can operate smoothly, have high locating accuracy and simple & good appearance. Moreover, the modularized design makes machine components have strong exchange ability and equipment function be expanded more simply & conveniently. The user can configure plasma cutting torches in different sizes according to the process requirements. Its advantages is high automation, easy operation, high accuracy, high reliability, low price, and simple operation & maintenance.

Technical Parameters for Heavy Gantry CNC Cutting Machine:

1 Cutting shape Steel plate with any plane shapes fromed by straight lines and arcs
2 LCD Display Dimension 10.4 Inches
3 Effective Cutting Size 4400*10000mm
4 Railway Size 5000*12000mm
5 Plasma Cutting Thickness 0.5--20mm ( Depends on plasma power source capacity)
6 Flame Cutting Thickness 5--150mm
7 Lifting body 1 lifting body standard
8 Cutting Speed 0-8000mm per minute
9 Height Control Electric Height Control+Arc Voltage Height Control(THC)
10 Drive Mode Bilateral drive
11 Cutting Mode flame and plasma
12 Ignition device Auto ignition device
13 File transmission USB transmission
14 Gas Pressure Max. 0.1Mpa
15 Oxygen Pressure Max.0.7Mpa
16 Cutting Gas

Flame: Oxygen+ Acetylene/ Propane/ Coal gas

Plasma :air
17 Software FastCAM Standard (support Auto CAD/ Solidworks/ CAXA/ Types etc.)
18 Cutting accuracy ±0.5mm
19 Power Supply Voltage/Frequency 220V 50HZ / 60HZ
20 Rated Power Supply 1500W
21 Working Temperature -10℃-60℃, Relative Humidity, 0-95%.

Applications:

CNC plasma cutting machine is now widely used in industries such as machine tool manufacturing, Petro-chemical equipment, light-industrial machinery, shipbuilding, pressure vessel, mining machinery, electric power, bridge construction, aerospace, steel structure etc.

Competitive Advantage:

1. graphic display function.

2. English interface and other 8 languages.

3. Excellent graph library ,48 graphic.

4. steel plate correction function .

5. Kerf can be automatically compensated.

6. Cutting can continue when power fails.

7. Continuous return can be done.

8. Positioning and cutting can be done randomly.

9. Off-line cutting can be done.

10. Online upgrading function.

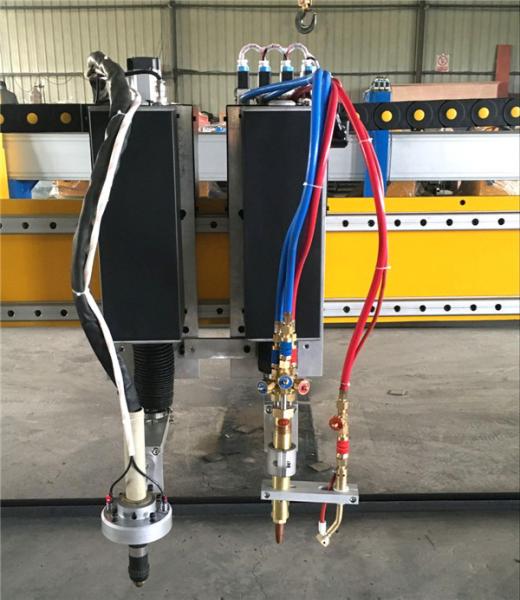

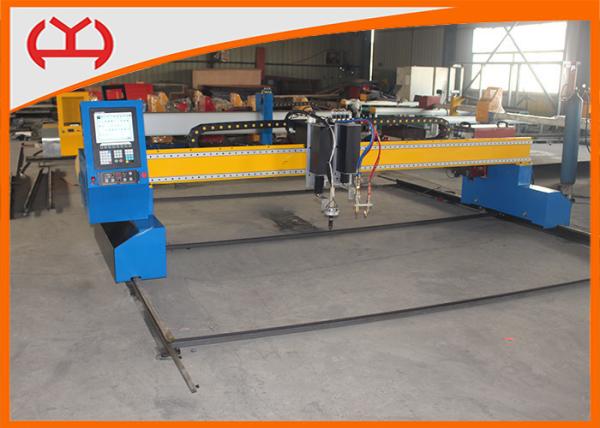

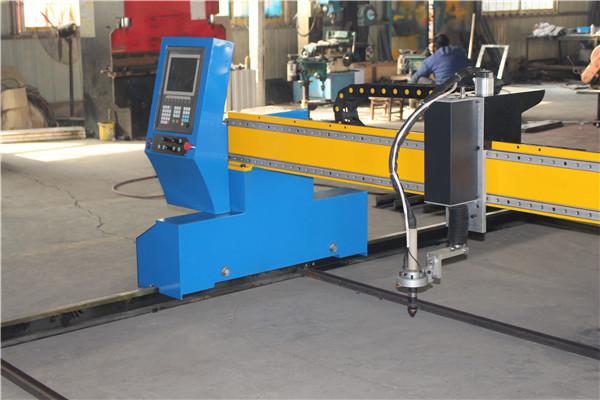

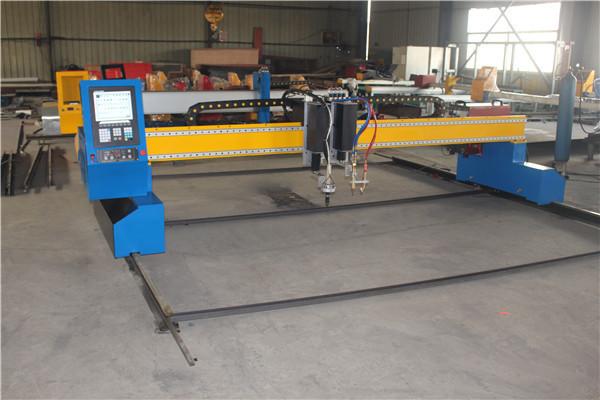

Heavy Gantry CNC Cutting Machine:

Heavy Gantry Flame / Plasma Gantry CNC Cutting Machine 4400 * 10000 mm Servo Motor
