12.8V 105Ah High Crank LiFePO4 Battery1344Wh 1200CCA For Extreme Starting And Deep Cycle OEM ODM Ready For Wholesale Distributors
12.8V 105Ah High Crank LiFePO4 Battery1344Wh 1200CCA For Extreme Starting And Deep Cycle OEM ODM Ready For Wholesale Distributors
12.8V 105Ah High Crank LiFePO4 Battery1344Wh 1200CCA For Extreme Starting And Deep Cycle OEM ODM Ready For Wholesale Distributors
12.8V 105Ah High Crank LiFePO4 Battery1344Wh 1200CCA For Extreme Starting And Deep Cycle OEM ODM Ready For Wholesale Distributors
12.8V 105Ah High Crank LiFePO4 Battery1344Wh 1200CCA For Extreme Starting And Deep Cycle OEM ODM Ready For Wholesale Distributors
12.8V 105Ah High Crank LiFePO4 Battery1344Wh 1200CCA For Extreme Starting And Deep Cycle OEM ODM Ready For Wholesale Distributors
12.8V 105Ah High Crank LiFePO4 Battery1344Wh 1200CCA For Extreme Starting And Deep Cycle OEM ODM Ready For Wholesale Distributors
12.8V 105Ah High Crank LiFePO4 Battery1344Wh 1200CCA For Extreme Starting And Deep Cycle OEM ODM Ready For Wholesale Distributors
12.8V 105Ah High Crank LiFePO4 Battery1344Wh 1200CCA For Extreme Starting And Deep Cycle OEM ODM Ready For Wholesale Distributors
12.8V 105Ah High Crank LiFePO4 Battery1344Wh 1200CCA For Extreme Starting And Deep Cycle OEM ODM Ready For Wholesale Distributors
Specifications
Brand Name :
Yunfan
Model Number :
YF12105-HC
Certification :
MSDS UN38.3
Place of Origin :
China
MOQ :
100
Price :
call for pricing
Payment Terms :
T/T
Supply Ability :
1000PCS/month
Delivery Time :
5-8 working days
Packaging Details :
UN carton package
Cell Chemistry :
LiFePO₄ (Lithium Iron Phosphate)
Nominal Voltage :
12.8V
Rated Capacity :
105Ah
Usable Energy :
1344 Wh (1.344 kWh)
Cold Cranking Amps (CCA) :
1200A
Cycle Life :
≥4000 cycles @ 80% DoD (typical LiFePO4 performance)
Charge Voltage :
14.6V (CC/CV)
Recommended Charge Current :
30‑50A
Max Charge Current :
50A
Discharge Cut-off Voltage :
10V
Continuous Discharge Current :
100A
Peak Discharge (cranking) :
1200A for 1‑3 seconds
Operating Temperature (Discharge) :
-20°C ~ 65°C (-4°F ~ 149°F)
Charge Temperature :
0°C ~ 45°C (32°F ~ 113°F)
Dimensions (L×W×H) :
230 × 175 × 212 mm
Weight :
Approx. 10 kg (22 lbs)
Approx. 10 kg (22 lbs) :
ABS / Metal (customizable)
Terminals :
Standard M8 (custom available)
Certifications :
UN38.3, MSDS, CE (pack); IEC62619, UL1642 (cells)
Warranty :
3 / 5 / 10 years optional
Protections :
Overcharge, over‑discharge, over‑current, short circuit, temperature, cell balancing
Description

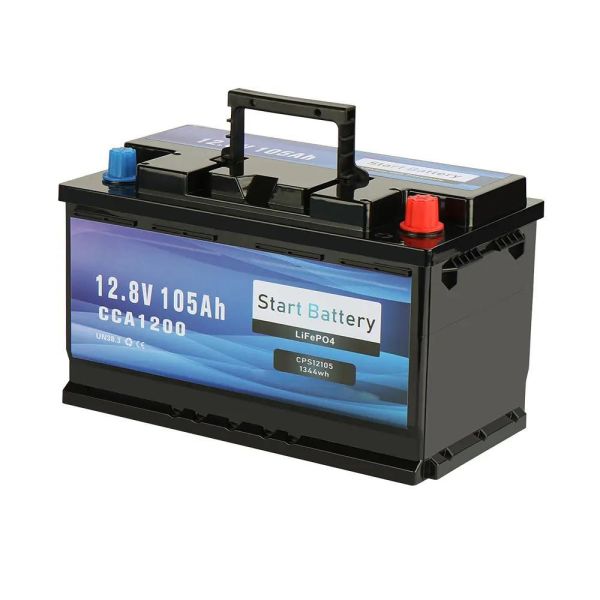

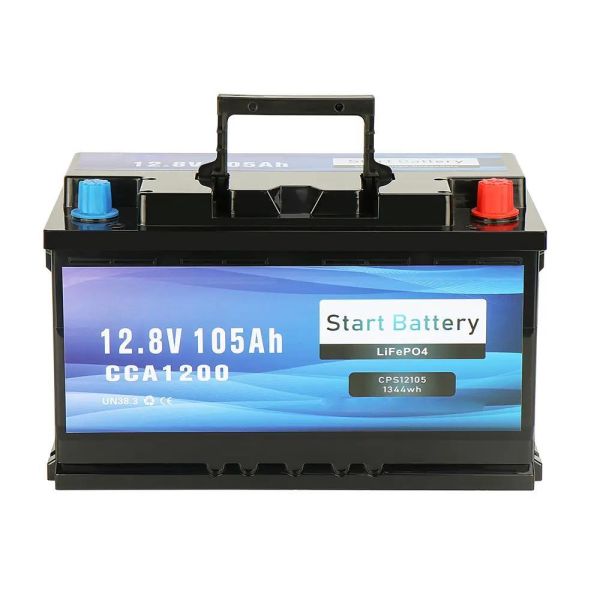

YF12105-HC: 12.8V 105Ah High Crank LiFePO4 Battery
1344Wh 1200CCA For Extreme Starting And Deep Cycle Applications - OEM ODM Ready For Wholesale Distributors
Product Overview
The YF12105-HC is a high-performance 12.8V 105Ah lithium iron phosphate (LiFePO₄) battery engineered for applications requiring both massive cranking power and deep-cycle endurance. With 1344Wh of energy and an outstanding 1200 Cold Cranking Amps (CCA), this single battery replaces separate starter and house banks in many vehicles and vessels.
Engineered with automotive-grade LiFePO₄ cells and a smart Battery Management System (BMS) featuring cell balancing and comprehensive protection (overcharge, over-discharge, over-current, short circuit, temperature), the YF12105-HC delivers safe, maintenance-free performance. Its compact dimensions (230×175×212mm) and lightweight design (only 10kg) make it an ideal drop-in replacement for heavier lead-acid batteries.
Core Advantages
  • Exceptional Cranking Power (1200 CCA) - Starts large diesel engines in cold weather down to -20°C, outperforming most lead-acid batteries
  • True Dual-Purpose Design - 105Ah capacity (1344Wh) powers both starting and deep-cycle applications with 100A continuous discharge
  • Massive Weight & Space Savings - 10kg vs. 25-35kg for equivalent lead-acid (60-70% lighter) with compact footprint
  • Ultra-Long Cycle Life - Designed for >4000 cycles at 80% DoD, providing 8-10 years of daily use
  • Smart BMS with Full Protection - Comprehensive safety features with active cell balancing and temperature monitoring
  • Fast Recharge & High Efficiency - Accepts 50A charge current for ~2 hour full recharge with low internal resistance
  • Fully Certified for Global Shipping - UN38.3, MSDS, CE certified with cells meeting IEC62619, UL1642 standards
Target Applications
Application Why It's a Perfect Fit Customer Benefit
Heavy-Duty Trucks & Diesel Pickups 1200CCA starts cold diesels; 105Ah runs cabin electronics Reliable starts, lighter weight, longer life
Marine - Large Outboards & Inboards Dual-purpose: start engine + run fish finders, livewells, radios Replace two batteries with one, save space and weight
RVs & Campervans Powers starter, lights, water pump, fridge, inverter Single battery for both chassis and house loads
Off-Road & Overland Vehicles Vibration-resistant, deep cycles for winches & aux lighting No second battery needed; more cargo capacity
Backup Power & Solar Storage 1344Wh capacity, 100A discharge supports 1000W+ inverter Silent, instant backup during grid outages
Electric Trolling Motors Lightweight, long runtime, 100A continuous Extended fishing trips without heavy lead-acid
Manufacturing Partnership Benefits
Your Business Challenge How Yunfan Factory Solves It
Need reliable, high-CCA starting battery 1200CCA real-world tested, not just a label
Customers complain about lead-acid weight & short life 10kg vs 30kg, 4000+ cycles - compelling ROI
Want to sell under your own brand Full private label - from casing to carton to manual
Need compatibility with various systems Standard 12.8V, works with most alternators
International shipping & certification UN38.3, MSDS, CE ready - no customs delays
Flexible order quantities MOQ from 10 units (standard) or 50 units (custom)
After-sales technical support Remote BMS log analysis, replacement unit policy
Packaging & Global Transport
  • Individual heavy-duty carton with high-density foam inserts for drop and vibration protection
  • Palletised for bulk orders with secure strapping and stretch wrap
  • Full documentation included: UN38.3 test report, MSDS, QC test data, CE declaration
  • Shipping partners: DHL, FedEx, and sea freight forwarders to all major markets
Frequently Asked Questions
What is the MOQ for standard vs. custom branded units?
Standard (no custom logo/packaging): 10 units
Full private label (logo, carton, manual): 50 units
Sample units (1-5 pcs) available for engineering evaluation
Can this battery be charged by a standard alternator?
Yes, but the alternator must be set to a LiFePO4-compatible voltage (14.6V absorption, ≤13.6V float). Many modern alternators work fine. For older alternators with fixed 14.4V output, it will still charge but may not reach 100%. We recommend a DC-DC charger for best performance.
Can I connect multiple YF12105-HC in parallel or series?
Parallel: Yes, up to 4 units (12.8V, 420Ah, 5.376kWh)
Series: Yes, up to 4 units for 24V (2 units) or 48V (4 units) systems. BMS is designed for series operation.
What is the real-world CCA performance at low temperatures?
The 1200 CCA rating is measured at 0°C. At -20°C, expect approximately 80-85% of rated CCA - still superior to lead-acid, which can lose 50% or more.
What certifications do you include?
We provide UN38.3, MSDS, CE for each battery. Cell-level IEC62619, UL1642 available on request.
What is the typical lead time?
Standard models: 15-20 days after payment
Custom branded: 25-30 days (depending on artwork and tooling)
How does warranty work across borders?
Standard 5-year warranty (3-year and 10-year options available). Fault diagnosis via voltage/capacity tests or BMS logs. We send replacement units; defective units can be returned to our local consolidation hub.
Ready to Build Your High-CCA Lithium Battery Brand?
The YF12105-HC is the reliable, lightweight, and long-lasting starting and deep-cycle battery that your customers demand for trucks, boats, RVs, and off-grid systems. With Yunfan Factory as your manufacturing partner, you get engineering depth, supply chain reliability, and true white-label flexibility.
