Fiber Adapter Fiber Coupler LC APC SM MM DX SX
LC to LC coupler for connecting fiber optic connectors; Angle-free polished high retention phosphor bronze, high temperature resistant, acid and alkali resistant, high bundle (high density) zirconium oxide sleeve.
With good optical properties and high mechanical stability.
There are two options for LC to LC coupler: with skylight and without skylight
LC to LC coupler has a variety of dust caps to choose from, and the color of the dust cap can be customized
Product Description
1. Apply for CATV, LAN, Telecom network, test equipment, LC connectors
2. Multimode or Single Mode, OM3,OM4 optional
3. Ceramic sleeve, ABS housing
4. Insertion Loss≤ 0.2dB
5. Operating temp.: -40° C~+85° C
6. Durability > 1000 times

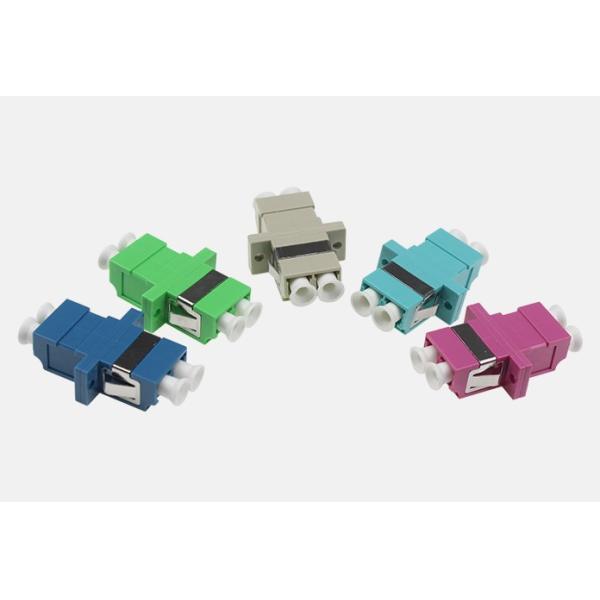

7. Color: Blue (upc/SM), Green (apc), Beige (pc/MM), Aqua(OM3),Violet(OM4)
8.Adapter is supplied with dust caps.
More products
All the adapters in the picture are on sale, please contact customer service for consultation
YingFeng produce diversfied types of adapters including FC,SC,ST,LC,MTRJ,E2000,MPO,FC-SC,FC-ST,SC-ST,LC-FC,LC-SC etc.
FC, SC, ST, and LC adapters are the most widely used in fiber optic networks, with each type having its own unique features and benefits. FC (Ferrule Connector) is a threaded connector that provides excellent mechanical stability, making it ideal for high vibration environments. SC (Subscriber Connector) is a push-pull connector that is easy to install and provides good performance in high-density applications. ST (Straight Tip) is a bayonet-style connector that is easy to install and durable, making it ideal for harsh environments. LC (Lucent Connector) is a small form factor connector that is ideal for high-density applications.
Company Show
Zhejiang Yingfeng Optical Communication Co., Ltd. is an enterprise integrating R&D, production, sales and service. Specializing in the manufacture and sale of products in the field of optical fiber communication. We are committed to providing first-class connection solutions, site solutions, data center solutions and professional services for domestic and foreign operators.
Our Certificate
Frequently Asked Questions
1.How long will it take to ship?
......Ship out about 15 days after the order is confirmed.
2.Are you a factory or a trader?
......We are the factory.Welcome to visit our factory at any time.
3.What's your MOQ?
......Low MOQ, 1pc for sample checking is available
4.Do you provide customized services?
......Yes, we provide customized services, According to customer requirements and description
