We make acrylic bathtub forming machines, bathtub forming moulds

The acrylic bathtub/tray making line need the equipments as follows,

1.acrylic bathtub forming machines--9800USD

2.bathtub forming moulds--about 650USD/piece

3.resin mixer--550USD/piece

4.resin spray gun with fiber chopper(automatic)--5500USD/set

5.bathtub edge trimming machine--5600USD/set

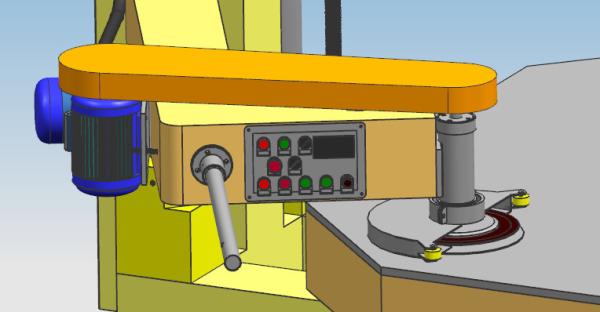

The detail information of the trimming machine:

The machine tool is a kind Of special equipment used for edge trimming of bathtub in steam room Its worktable can be classified into 2000×2000mm worktable and 2400×2400 worktable, which makes the product adapt to edge trimming of bathtub of different sizes. General grinding wheel blade, tdngsten carbide alloy saw blade and special diamond grinding wheel blade may be used, which makes it have wide application. Overall welding is applied and the worktable is given stress treatment. The process precision is high. There is no interface around the cylinder body. The machine bed can add tumbler digital readout device according to requirements of customers, which is the first choice for sanitary factory to update equipments.

Main technical parameter
1 Dimension working table (L×W)…………………………2000×2000(2200×2200 or 2400×2400)mm

2 Maximum distance between work table center to vertical arm………1500mm

3 Maximum distance between work table and pressure plate………….1120mm
4 Rotate speed of work table (adjustable)………………………………..0-2r/min
5 Maximum ascend and descend distance of the tumbler……………...50-400mm
6 Dimension of common used grinding wheel……………………………Φ400×Φ25.4mm
7 Rotate speed of main axis………………………………………………..3650 r/min
8 Power of main motor………………………………………………………N=3KW
9 Motor power of work table………………………………………………..N=0.37KW
10 Power of the maximal rising height of tumbler………………………..N=0.37KW
11 Operation power…………………………………………………………0.4～0.6Mpa
12 Appearance dimension (L×W×H)...............................................3280×2400×2850mm
13 Machine bed weight…………………………………………………1300kg
