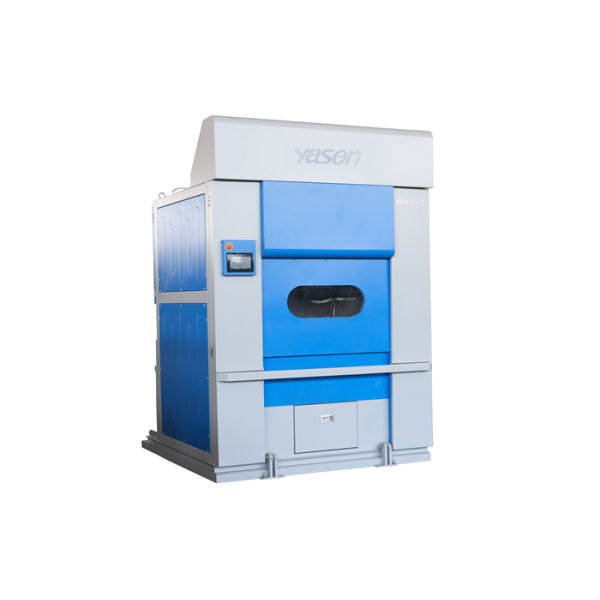

Laundries Industrial Tumble Dryer High-Efficiency Energy-Saving Integrated Dryer
Laundries Industrial Tumble Dryer High-Efficiency Energy-Saving Integrated Dryer
Specifications
Brand Name :
YASEN
Certification :
CE/OHSAS18001/ISO14001
Place of Origin :
Shanghai, China
MOQ :
1pc
Price :
$2500.00 - $6000.00/sets
Model Number :
HGPX-2000Z
Product name :
Laundries Industrial Tumble Dryer
Cylinder Speed :
28 (VFD Adjustable)
Heating :
Natural Gas / Steam / Electric Heating (optional)
Warranty :
1 year
Application :
Laundries
Capacity :
100kg
Description
The YASEN HGPX-2000Z is an industrial-grade integrated drying equipment designed specifically for professional laundry facilities. It integrates high-efficiency air duct technology with intelligent control systems. Its core axial forward air duct design ensures hot air penetrates fabric loads uniformly, significantly boosting thermal energy utilization by over 20% compared to conventional dryers.

Equipped with a 7-inch touchscreen intelligent programming system, the device can precisely match drying curves for different fabric types such as bed sheets, towels, and work uniforms. Combined with its tilted automatic discharge function, it effectively reduces manual labor intensity, making it a core solution for efficient linen processing in hotels, hospitals, and professional laundries.


Core Technical Specifications


Parameter Item Specific Specification
Model HGPX-2000Z
Rated Capacity 100kg/batch
Drying Efficiency Approximately 35-45 minutes/batch
Heating Method Natural Gas / Steam / Electric Heating (optional)
Thermal Energy Utilization Rate ≥85%
Control Method 7-inch touchscreen with intelligent programming
Overall Dimensions 2500×2200×3200mm (L×W×H)
Equipment Weight Approximately 3800kg
Discharge Mode Tilted automatic discharge
Safety Configuration Over-temperature protection, wind pressure monitoring, emergency stop button


Application Scenarios


  • Hotels & Resorts: Batch drying of bed sheets, duvet covers, towels, and other linen
  • Medical Institutions: Sanitary-grade drying of patient gowns, surgical towels, and medical textiles
  • Professional Laundries: Large-scale drying for commercial linen service operations
  • Large Enterprises & Institutions: Regular cleaning and drying of employee uniforms and public textiles
  • Textile Printing & Dyeing Plants: Setting and drying of finished fabrics


Frequently Asked Questions


Q1: What energy-saving advantages does this dryer offer over traditional models?

A: Its axial forward air duct design enables uniform hot air penetration, minimizing heat loss. The integrated intelligent temperature control system adjusts heating power dynamically based on fabric moisture levels, delivering a 20%-30% higher overall energy efficiency than conventional dryers.

Q2: What types of fabrics can the dryer handle?

A: It is suitable for cotton, linen, chemical fiber, blended fabrics, and more. The touchscreen allows presetting of drying programs for different materials to prevent fabric damage or incomplete drying.

Q3: How is operational safety ensured?

A: The dryer is equipped with multiple safety features, including over-temperature protection, wind pressure anomaly monitoring, and an emergency stop button. Its enclosed air duct design also prevents hot air leakage and fire risks.

Q4: Can it integrate with other laundry equipment?

A: Yes, as a core unit of the YASEN IWS Integrated Washing System, it seamlessly connects with washers, ironers, and other equipment to enable fully automated linen processing from washing to drying and ironing.
