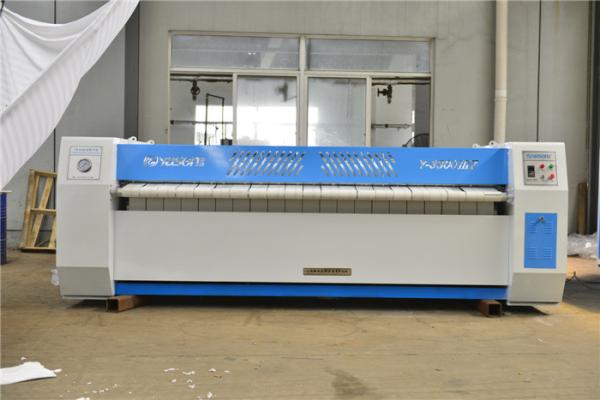

800mm Roll Diameter Single Roller Iron Steam for Prison Laundry Shop Flatwork Ironing
800mm Roll Diameter Single Roller Iron Steam for Prison Laundry Shop Flatwork Ironing
800mm Roll Diameter Single Roller Iron Steam for Prison Laundry Shop Flatwork Ironing
800mm Roll Diameter Single Roller Iron Steam for Prison Laundry Shop Flatwork Ironing
800mm Roll Diameter Single Roller Iron Steam for Prison Laundry Shop Flatwork Ironing
800mm Roll Diameter Single Roller Iron Steam for Prison Laundry Shop Flatwork Ironing
800mm Roll Diameter Single Roller Iron Steam for Prison Laundry Shop Flatwork Ironing
800mm Roll Diameter Single Roller Iron Steam for Prison Laundry Shop Flatwork Ironing
800mm Roll Diameter Single Roller Iron Steam for Prison Laundry Shop Flatwork Ironing
800mm Roll Diameter Single Roller Iron Steam for Prison Laundry Shop Flatwork Ironing
800mm Roll Diameter Single Roller Iron Steam for Prison Laundry Shop Flatwork Ironing
800mm Roll Diameter Single Roller Iron Steam for Prison Laundry Shop Flatwork Ironing
800mm Roll Diameter Single Roller Iron Steam for Prison Laundry Shop Flatwork Ironing
800mm Roll Diameter Single Roller Iron Steam for Prison Laundry Shop Flatwork Ironing
Specifications
Place of Origin :
Shanghai, China
Brand Name :
YASEN
Certification :
ISO9001:2008
Packaging Details :
WOODEN PACKAGE
Supply Ability :
100 Set/Sets per Month
Price :
$5,600.00/sets >=1 sets
MOQ :
1pc
Product name :
Single Roller Iron Steam Ironer Machine
Warranty :
1 Year
Heating :
Steam
Roll Diameter(mm) :
800
Function :
Prison Laundry Flatwork Ironing
Capacity :
1.6m,2.5m,2.8m,3m,3.3m
Power Supply :
380/3/50 (V/p/Hz)
Brand :
YASEN
Description
800mm Roll Diameter Single Roller Iron Steam for Prison Laundry Shop Flatwork Ironing
The 800mm roll diameter single roller iron steam is a specialized piece of equipment designed for the rigorous demands of prison laundry shops. With a focus on efficiency and durability, this flatwork ironing system ensures that all laundry items are pressed to a pristine finish, maintaining the highest standards of hygiene and cleanliness.
The key feature of this machine is its large 800mm roll diameter, which provides a generous pressing surface, enabling it to handle larger laundry items with ease. The single roller design, combined with advanced steam technology, ensures that heat is evenly distributed across the entire pressing surface, resulting in a smooth and wrinkle-free finish.
Product Specifications
Attributes Y-1600I Y-2500I Y-2800I Y-3000II Y-3300III
Max Feeding Width (mm) 1600 2500 2800 3000 3300
Rolls Quantity 1 1 1 2 3
Roll Diameter (mm) 800 800 800 800 800
Ironing Speed (m/min) 0-9 0-9 0-9 0-18 0-25
Electric Heating Power (kw) 18 27 36 64 96
Steam Pressure (Mpa) 0.3-0.6 0.3-0.6 0.3-0.6 0.3-0.6 0.3-0.6
Steam Consumption (kg/h) 80 120 250 250 320
Steam Inlet (Inch) G1.5" G1.5" G1.5" G1.5" G1.5"
Drain Outlet (Inch) G1.5" G1.5" G1.5" G1.5" G1.5"
Rated Voltage (V) 3P/220V/380V 3P/220V/380V 3P/220V/380V 3P/220V/380V 3P/220V/380V
Motor Power (kw) 0.75 0.75 1.5 1.5 2.2
Dimension (L.W.H) (mm) 1600x1300x1270 3500x1300x1270 3840×1300×1270 4040x2410x1420 4340x3350x1420
N.W. (kg) 750 1100 1300 3050 4350
800mm Roll Diameter Single Roller Iron Steam for Prison Laundry Shop Flatwork Ironing 800mm Roll Diameter Single Roller Iron Steam for Prison Laundry Shop Flatwork Ironing 800mm Roll Diameter Single Roller Iron Steam for Prison Laundry Shop Flatwork Ironing 800mm Roll Diameter Single Roller Iron Steam for Prison Laundry Shop Flatwork Ironing 800mm Roll Diameter Single Roller Iron Steam for Prison Laundry Shop Flatwork Ironing
Product Overview
Y series roller automatic flat-work ironing machine is a new product developed by our company with Sino-foreign technology. It is suitable for star-level hotels, restaurants, hospitals, railways, large washing centers, washing-dyeing factories, and industrial-mining enterprises. It is used for ironing and finishing flat fabrics such as bedsheets, bedcovers, and tablecloths after washing and extracting.
Key Features
  • Efficiently irons fabrics with duplex and no trace, ensuring high-quality ironing effect
  • Constructed with high-precision 304 stainless steel drum for long service life
  • Frequency conversion drives allow users to adjust ironing speed based on different fabrics, improving efficiency
  • Programmable computer control with multi-language control panel and large screen LCD for easy operation
  • Uses frequency-conversion motor, reducer, and chains transmission for smooth operation
  • Equipped with buffer and auto-adjustment conveying system - no guide strips needed, precise conveyance
  • Safe electrical-pneumatic design with emergency stop function to ensure operator safety
After-Sales Service
  • Complete machine guaranteed for 1 year
  • Lifelong technical support
  • Guaranteed spare parts supply
  • Engineers available for overseas machinery service
Installation and Testing
  • Free technical training at factory
  • Free technical guidance through network
  • On-site service available under contract
Warranty
Main spare parts (excluding consumable accessories) are covered by ONE YEAR warranty for manufacturing defects with free shipping.
800mm Roll Diameter Single Roller Iron Steam for Prison Laundry Shop Flatwork Ironing 800mm Roll Diameter Single Roller Iron Steam for Prison Laundry Shop Flatwork Ironing 800mm Roll Diameter Single Roller Iron Steam for Prison Laundry Shop Flatwork Ironing 800mm Roll Diameter Single Roller Iron Steam for Prison Laundry Shop Flatwork Ironing 800mm Roll Diameter Single Roller Iron Steam for Prison Laundry Shop Flatwork Ironing
