Specifications
Place of Origin :
Shanghai, China
Brand Name :
YASEN
Warranty :
1 Year
After-sales Service Provided :
Video technical support, Field installation, commissioning and training, Free spare parts, Online support, Engineers available to service machinery overseas
Power :
0.75-2.2
Weight :
1500kg-4350kg
Size :
4040x2410x1420mm
No. of roller :
1-5
Max Feeding Width :
2500mm,3000mm,3300mm
Ironing speed :
0-25m/min
Motor Power :
0.75kw-2.2kw
heating way :
steam or electric
Roller material :
Stainless steel
Description :
ironing machine/ Flatwork Ironer
Usage :
Hotel Used Commercial Laundry Equipment
Certification :
CE; ISO
Packaging Details :
WOODEN PACKAGE
Port :
Shanghai port
Supply Ability :
50 Set/Sets per Month
Price :
$6,500.00/sets >=1 sets
MOQ :
1pc
Description

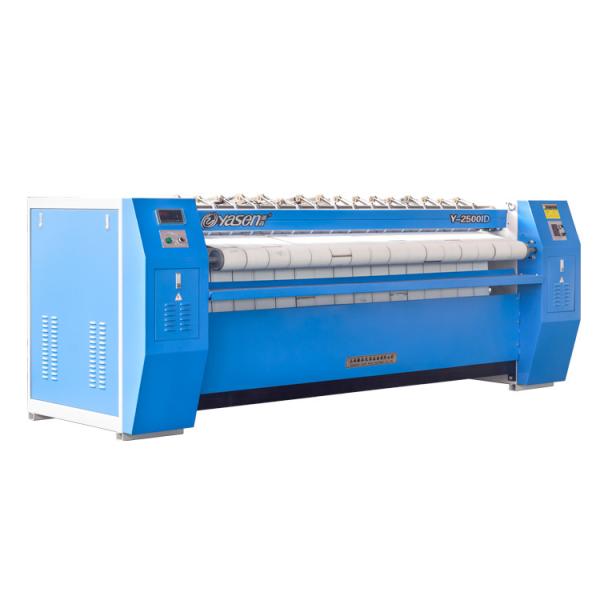

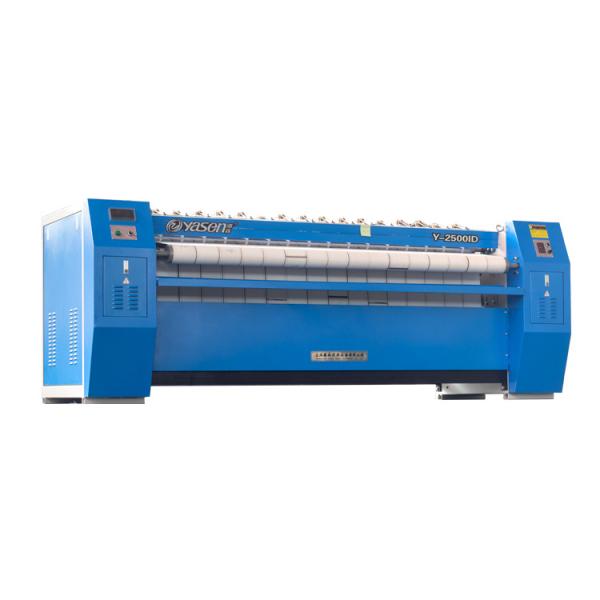

Flatwork Ironing Machine - Laundry Equipment
Flatwork Ironing Machine speed Laundry Equipment 0.75-2.2 Power 1500kg-4350kg Capacity Flatwork Ironing Machine speed Laundry Equipment 0.75-2.2 Power 1500kg-4350kg Capacity
Applications
Y series roller automatic flat-work ironing machine is a new product developed with Sino-foreign technology. Suitable for star-level hotels, restaurants, hospitals, railways, large washing centers, washing-dyeing factories, and industrial-mining enterprises. Used for ironing and finishing flat fabrics such as bedsheets, bedcovers, and tablecloths after washing and extracting.
Key Features
  • Efficiently irons fabrics with duplex and no trace, ensuring high-quality ironing results
  • Constructed with high-precision 304 stainless steel drum for long service life
  • Frequency conversion drives allow speed adjustment based on fabric type, improving efficiency
  • Programmable computer control with multi-language panel, large LCD screen, and user-friendly interface
  • Frequency-conversion motor, reducer, and chain transmission for smooth operation
  • Equipped with buffer and auto-adjustment conveying system - no guide strips needed
  • Safe electrical-pneumatic design with emergency stop function for operator safety
Technical Specifications
Attributes Y-2500I Y-3000II Y-3300III
Max Feeding Width (mm) 2500 3000 3300
Rolls Quantity 1 2 3
Roll Diameter (mm) 800 800 800
Ironing Speed (m/min) 0-9 0-18 0-25
Electric Heating Power (kw) 27 64 96
Steam Pressure (Mpa) 0.3-0.6 0.3-0.6 0.3-0.6
Steam Consumption (kg/h) 120 250 320
Steam Inlet (Inch) G1.5" G1.5" G1.5"
Drain Outlet (Inch) G1.5" G1.5" G1.5"
Gas Consumption (m³/h) 6m³ 12m³
Gas Inlet (Inch) G1.5" G1.5"
Rated Voltage (V) 220/380/415 220/380/415 3P/380/50HZ
Motor Power (kw) 0.75 1.5 2.2
Dimension L×W×H (mm) 3540×1470×1420 4040×2410×1420 4340×3350×1420
Net Weight (kg) 1500 3050 4350
After-Sales Service
  • One-year warranty for the complete machine
  • Lifelong technical support
  • Guaranteed spare parts supply
  • Overseas service engineers available
Installation and Testing
  • Free technical training at factory
  • Free technical guidance through network
  • On-site service under contract
Warranty
Main spare parts (excluding consumable accessories) are covered by a one-year warranty with free shipping for manufacturer defects.
