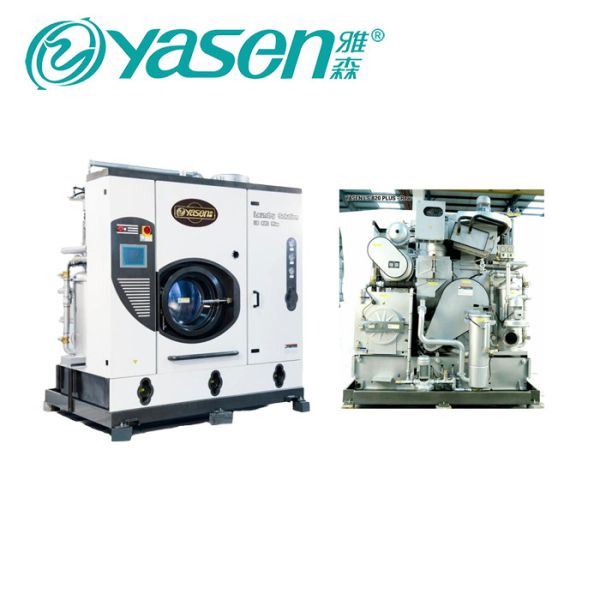

16kg Perc Dry Cleaning Machine With 45 Centrifugal Filter Volume
16kg Perc Dry Cleaning Machine With 45 Centrifugal Filter Volume
16kg Perc Dry Cleaning Machine With 45 Centrifugal Filter Volume
16kg Perc Dry Cleaning Machine With 45 Centrifugal Filter Volume
Specifications
Place of Origin :
Shanghai, China
Brand Name :
YASEN
Packaging Details :
Wooden packing
Supply Ability :
30 Set/Sets per Month dry cleaning machines price list
Price :
$8,000.00 - $30,000.00/sets
MOQ :
1pc
Product name :
Hydrocarbon Dry Cleaning Machine
Rated capacity(kg) :
8,10,12
Solvent :
Hydrocarbon
Diameter :
800mm
Volume :
170
depth :
340
Centrifugal Filter Volume :
45
Brand :
YASEN
Description
16kg Perc Dry Cleaning Machine With 45 Centrifugal Filter Volume
The Hydrocarbon Dry Cleaning Machine is a specialized piece of equipment that utilizes hydrocarbon solvents for the efficient and environmentally friendly cleaning of garments, linens, and other textiles. It is designed to provide a safe and cost-effective solution for dry cleaning operations in various industries, including hospitals, hotels, and commercial laundries.

Features and Specifications
  • Solvent Type: The machine uses hydrocarbon solvents, which are known for their excellent cleaning power and low environmental impact.
  • Cleaning Capacity: Depending on the model, the Hydrocarbon Dry Cleaning Machine can handle various cleaning capacities, ranging from 8kg to larger capacities suitable for commercial use.
  • Environmental Protection: The machine is designed with environmental protection in mind. It has a solvent recycling rate of up to 95%, significantly reducing solvent consumption and waste.
  • Multiple Tanks: The solvent tank system typically consists of three tanks, allowing for efficient solvent distribution and recycling.
  • Cooling Method: The solvent recycling process utilizes water cooling, ensuring stable and efficient operation of the machine.

Working Principle
  • Loading: Garments, linens, or other textiles are loaded into the machine's drum or basket.
  • Solvent Application: The hydrocarbon solvent is distributed throughout the drum, thoroughly soaking the items to be cleaned.
  • Agitation: The drum rotates or agitates to loosen dirt, stains, and other impurities from the textiles.
  • Extraction: The solvent, along with the loosened dirt and stains, is extracted from the textiles through the use of filters and separators.
  • Solvent Recycling: The extracted solvent is then sent to the recycling system. Here, it is filtered, cooled, and reconditioned for reuse.
  • Drying: After the cleaning process, the textiles are dried by circulating warm air through the drum, removing any residual solvent.
  • Unloading: Once dried, the cleaned textiles are unloaded from the machine and ready for use.

Product Parameters
Name: Perchloroethylene dry cleaning machine
LS Series
Attributes LS-612C LS-608C LS-610C
Washing Capacity (kg) 12 8 10
Capacity of drum (L) 198 140 170
Washing Speed (r/min) 38 38 38
Extracting Speed (r/min) 400 400 400
Hydraulic Pump Power (kw) 0.55 0.55 0.55
Drive Motor Power (kw) 2.2 1.5 2.2
Filter Motor (kw) 0.55 0.55 0.55
Power Supply (V) 220/380/415 220/380/415 220/380/415
Frequency (Hz) 50 50 50
Dimension (L.W.H) (mm) 1820×1330×2200 1680×1250×1970 1680×1250×1970
N.W. (kg) 1280 980 1150
Category LS 816 LS 820 LS 825
Washing Capacity (kg) 16 20 25
Capacity of volume (L) 280 340 425
Capacity of diameter (mm) Φ900 Φ900 Φ900
Power Supply (V/P/Hz) 380/3/50 380/3/50 380/3/50
Drive Motor Power (kw) 2.2 3 4
Hydraulic Pump Power (kw) 0.75 0.55 0.55
Power electric heating (kw) 23.7 24.5 24.5
Power steam heating (kw) 8.7 9.5 10.5
Steam pressure (MPa) 0.4-0.6 0.4-0.6 0.4-0.6
N.W. (kg) 1850 2020 2280
Dimension (L.W.H) (mm) 2015×1570×2250 2015×1662×2250 2015×1795×2250

Key Features
  • With washing, extracting, and drying function in one machine.
  • Fully automatic and fully enclosed, easy to operate, repair and testing more convenient.
  • Stainless steel drum, good appearance.
  • With recycle working system, recycling rate can reach to 99.8%, save solvent (perchloroethylene), no pollution to the air, no harm to the users.
  • Heating type: electricity or steam.
After Sales Service
The whole machine has been guaranteed for 1 year.
Providing lifelong technical support.
Guarantee of spare parts supply.
Engineers available to service machinery overseas.
