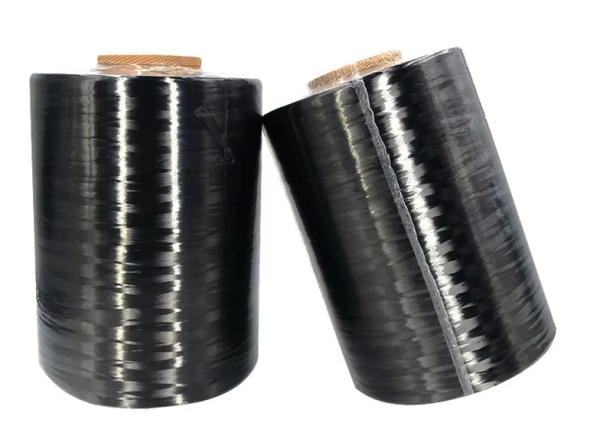

Carbon Fiber High Strength Mould Flame Retardant Yarn Fireproof Conductive Lightweight
Carbon Fiber High Strength Mould Flame Retardant Yarn Fireproof Conductive Lightweight
Specifications
Brand Name :
Delitex
Certification :
CE / ISO
Place of Origin :
Jiangsu, China
MOQ :
500KG
Payment Terms :
L/C,T/T
Delivery Time :
7-15 work days
Material :
100% Carbon Fiber
Yarn Type :
Filament
Pattern :
Raw
Technics :
RING SPUN
Spec :
1K, 3K, 6K, 12K, 24K, 48K, etc
Strength :
High Strength
Description

Carbon Fiber High Strength Mould Fireproof Conductive Lightweight Fiament Flame Retardant Carbon Fiber Yarn

Product Description
Carbon fiber is mainly composed of carbon elements, with characteristics such as high temperature resistance, friction resistance, thermal conductivity, and corrosion resistance. Its appearance is fibrous, soft, and can be processed into various fabrics. Due to the preferred orientation of its graphite microcrystalline structure along the fiber axis, it has high strength and modulus along the fiber axis direction. Carbon fiber has a low density, therefore it has a higher specific strength and specific modulus. The main use of carbon fiber is as a reinforcing material to composite with resins, metals, ceramics, and carbon, making advanced composite materials. Carbon fiber reinforced epoxy resin composite materials have the highest specific strength and specific modulus among existing engineering materials.
Compared with products made of other materials, carbon fiber materials integrate characteristics such as lightweight, strength, and corrosion resistance. The strength is more than 68 times greater than that of steel, and the elastic modulus is 1.8-2.6 times greater than that of steel. The density of carbon fiber is 1/4 that of steel, and even when making composite materials, the density does not change much. Carbon fiber has a small coefficient of thermal expansion, good thermal conductivity, and a decrease in thermal conductivity with increasing temperature. It has good resistance to high and low temperatures, as well as good resistance to sudden cooling and rapid heating. Carbon fiber has excellent conductivity, with a high modulus carbon fiber resistivity of 7.75 at 25 ℃ × 10-2 Ω· m, 1.5 for high-strength carbon fiber × 10-1 Ω· m. Carbon fiber has good stability, such as strong acid resistance, resistance to corrosion and immersion of concentrated hydrochloric acid and sulfuric acid, radiation resistance, and ability to absorb toxic gases.
Carbon fiber has good compatibility with other materials. Carbon fiber has a light weight, good bending performance, and good processability, making it suitable for different component shapes. Carbon fiber has a large degree of freedom in design and is easy to shape, which can meet the performance requirements of different products. During construction, there is no need for large equipment, the process is simple, and there is no damage to the original structure.
There are several main properties.
1) Light in weight, with a density of 1/4 that of steel and 1/2 that of aluminum alloy; 2) High strength, with a tensile strength of over 3500 MPa, which is 10 times stronger than steel; 3) High modulus, with an elastic modulus of over 230 GPa; 4) Resistant to ultra-high temperature, can be used at 2000 ℃ under non oxidizing atmosphere conditions; 5) Low temperature resistance, even at -180 ℃, carbon fibers still have elasticity; 6) Acid resistance, oil resistance, corrosion resistance, and strong durability; 7) Low thermal expansion coefficient, high thermal conductivity, resistant to rapid cooling and heating, and will not explode even when suddenly dropped from a high temperature of 3000 ℃ to room temperature; 8) Good wear resistance; 9) Good conductivity
Name
Carbon Fiber Yarn
Composition
Carbon Fiber
SPEC
1K, 3K, 6K, 12K, 24K, 48K etc
Technology
Spinning Process
Feature
Fireproof, Flame retardant, High temperature resistance, High strength, High modulus, Chemical resistance,Electrical insulation etc.

Carbon Fiber High Strength Mould Flame Retardant Yarn Fireproof Conductive Lightweight

Carbon Fiber High Strength Mould Flame Retardant Yarn Fireproof Conductive Lightweight

APPLICATION AREA
The main application form of carbon fiber is as a reinforcement for resin materials, and the carbon fiber reinforced resin (CFRP) formed has excellent comprehensive performance. It is used in electric vehicles, trucks, wind turbine blades, fuel cells, power cables, pressure vessels, uranium enrichment ultra-high speed centrifuges, special pipes, public infrastructure, medical and industrial equipment, sports and leisure products, as well as fashionable daily necessities and other fields, Has practical and potential applications
