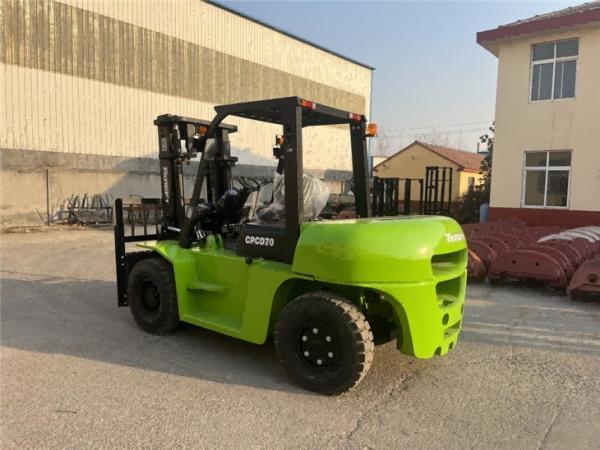

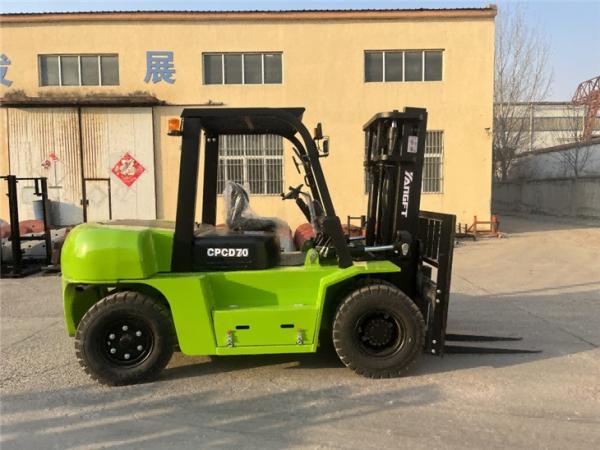

The 7-ton diesel forklift adopts advanced technology and design to provide users with a more efficient, safe and intelligent work experience. It is equipped with a high-definition display screen and intelligent control system, making the operation process simpler and more accurate. At the same time, the forklift also has a high degree of maneuverability and reliability, and can adapt to a variety of working environments on different roads and workplaces.

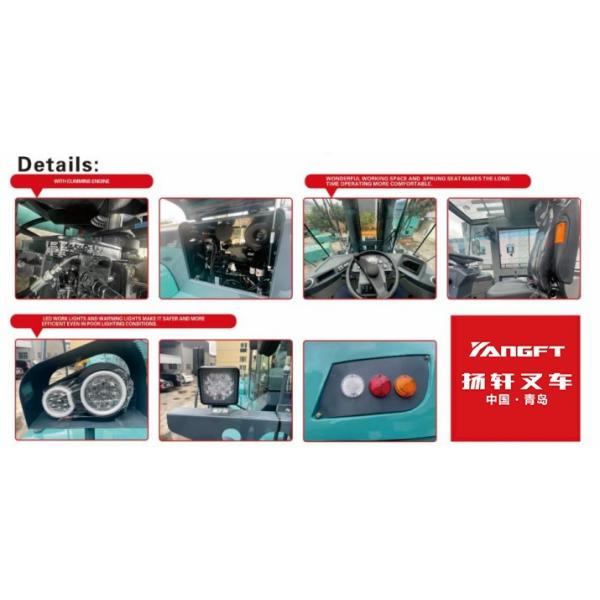

Details show

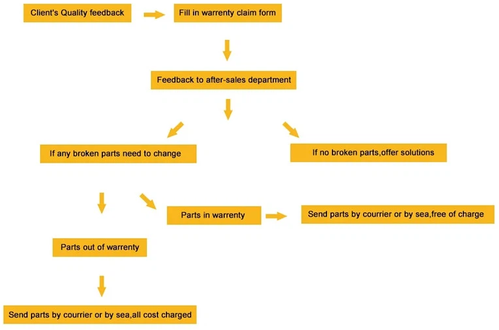

Our survice

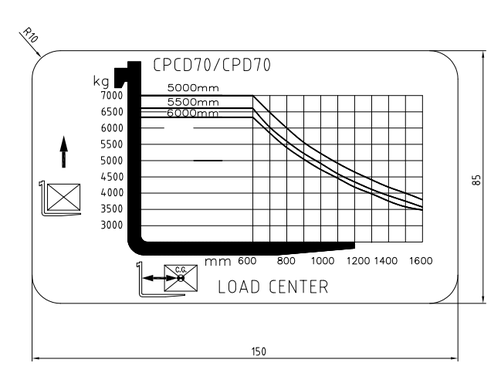

Load curve diagram

Other Attributes

Brand name	Yangft
After warranty service	Video technial support
Certification	CE.ISO
Port	Qingdao Shandong

MODEL				CPCD70
CHARACTERISTICS	POWER			DIESEL
	CAPACITY		kg	7000
	LOAD CENTRE		mm	600
	LIFT HEIGHT		mm	3000
	MIN. TURNING RADIUS		mm	3370
PERFORMANCE	TRAVEL SPEED	LOAD/NO LOAD	km/h	26/28
	LIFT SPEED	LOAD/NO LOAD	mm/s	500/530
DIMENSIONS	TOTAL LENTH	WITH FORK	mm	4780
		WITHOUT FORK	mm	3600
	TOTAL WIDTH		mm	1970
	MAX. HEIGHT		mm	4400
	MAST HEIGHT		mm	2450
CHASSIS	TYRE	FRONT		8.25-15NHS
		REAR		8.25-15NHS
	WHEELBASE		mm	2250
	SERVICE WEIGHT	NO LOAD	kg	9600
POWER	BATTERY	VOKTAGE/CAPACITY	V/Ah	2*12/80
	ENGINE	MODEL		6110
		RATED POWER	kw/r.p.m	83/2000
		RATED TORQUE	Nm/r.p.m	465/1300-1500
		CYLINDERS		6
