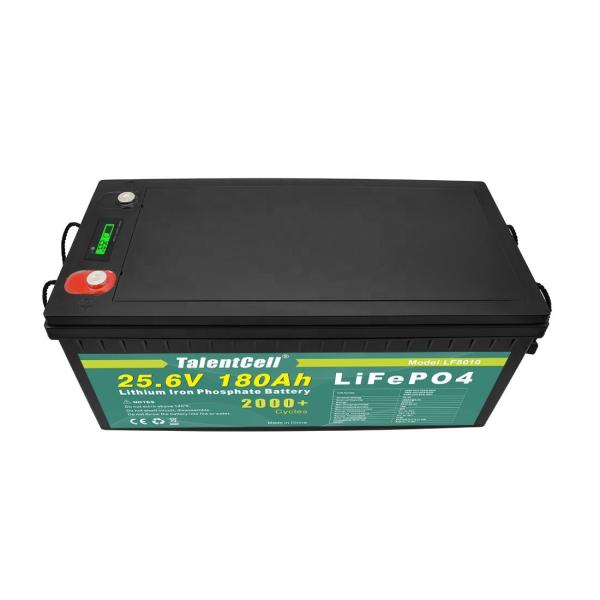

12v 24v 48v 200Ah 300Ah Lifepo4 Rechargeable Battery Pack 25.6V 180Ah
12v 24v 48v 200Ah 300Ah Lifepo4 Rechargeable Battery Pack 25.6V 180Ah
12v 24v 48v 200Ah 300Ah Lifepo4 Rechargeable Battery Pack 25.6V 180Ah
12v 24v 48v 200Ah 300Ah Lifepo4 Rechargeable Battery Pack 25.6V 180Ah
12v 24v 48v 200Ah 300Ah Lifepo4 Rechargeable Battery Pack 25.6V 180Ah
12v 24v 48v 200Ah 300Ah Lifepo4 Rechargeable Battery Pack 25.6V 180Ah
12v 24v 48v 200Ah 300Ah Lifepo4 Rechargeable Battery Pack 25.6V 180Ah
12v 24v 48v 200Ah 300Ah Lifepo4 Rechargeable Battery Pack 25.6V 180Ah
Specifications
Brand Name :
Yabopower
Certification :
CE/IEC/RoHS/UN38.3/FCC
Model Number :
LF8010 LCD 25.6V 180Ah
Place of Origin :
Guangdong, China
Packaging Details :
Safety industrial package.
Standard export package per pieces .
To be negotiated.(Pallet-Container)
Supply Ability :
100000 Piece/Pieces per Month
Price :
$779.80 - $875.00/pieces
Warranty :
3years
Application :
Golf Carts, electric vehicles, UPS, Solar & Wind Power System, Golf Cart,Electric Vehicle , E-bike, E-rickshaw etc,Lighting, UPS , Solar &Wind Power System, Golf Cart , Electric Vehicle
Weight :
31KG
Product Name :
25.6V 180Ah
Cycle Life :
2000 Times
Dimension :
522*238*217*217mm
Category :
Rechargeable Batteries
Warranty Time :
12 Moths
Samples Time :
5 days
Lead Time :
7 days
OEM/ODM :
Warmly Welcomed
Terminal :
M8
Port :
Shenzhen or Hongkong
Description
High Quality 12v 24v 48v 180Ah 200Ah 300Ah Rechargeable 24v Lifepo4 Battery
Product Description
Electrical
Characteristics
Nominal Voltage
25.6V
Nominal Capacity
180Ah@0.2C
Energy
4608Wh
Internal Resistance
≤35mΩ
Cycle Life
2000 Cycles @ 0.2C Charging/Discharging ,Until 70% Capacity
Self Discharge
≤3.5% per month at 25℃
Standard Charging
Max.Charging Voltage
28.0~29.2V
Charging Mode
At 0℃~45℃ temperature, charged to 29.2V at a constant current of 0.2C5A, and then,changed continuously with constant voltage of 29.2V until the current was not more than 0.02C(A).
Charging Current
20A
Max.Charging Current
35A
Standard Discharging
Discharging Current
20A
Max. Continuous Current
35A
Max.Pulse Current
70A(<3S)
Discharging Cut-off Voltage
20.0
Operating Condition
Charge Temperature
0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
Discharge Temperature
-20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity
Storage Temperature
0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
Water Dust Resistance
IP55
Structure
Cell & Format
GSP4017320,8S1P
Casing
Plastic
Dimension(L*W*H*TH)
522*238*217*217
Weight
Approx. 31Kg
Terminal
M8
Details Images

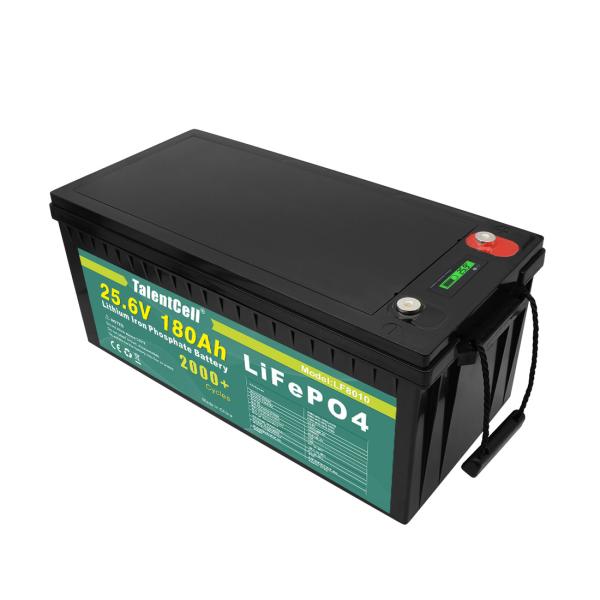

12v 24v 48v 200Ah 300Ah Lifepo4 Rechargeable Battery Pack 25.6V 180Ah

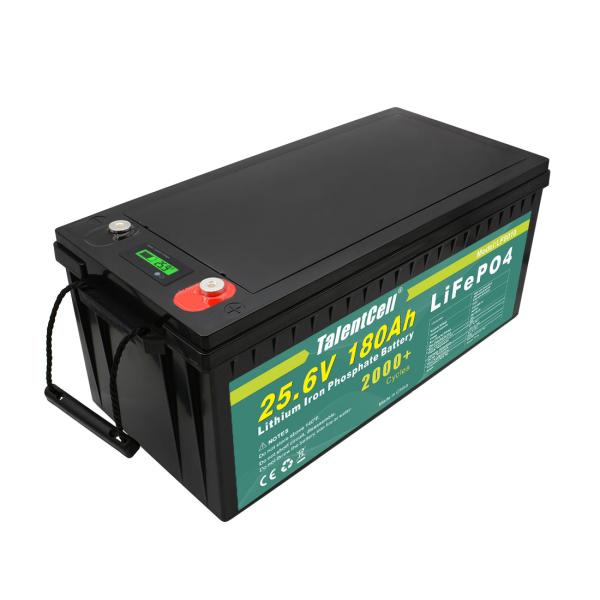

12v 24v 48v 200Ah 300Ah Lifepo4 Rechargeable Battery Pack 25.6V 180Ah
12v 24v 48v 200Ah 300Ah Lifepo4 Rechargeable Battery Pack 25.6V 180Ah
Test Chart
12v 24v 48v 200Ah 300Ah Lifepo4 Rechargeable Battery Pack 25.6V 180Ah

Features

◆ Using the technology of lithium iron phosphate cell, superior safety,thousands of cycles, 100%DOD, under normal conditions. ◆ Built-in automatic protection for over-charge, over discharge, over current and over temperature. ◆ Free of maintenance . ◆ Internal cell balancing. ◆ Lighter weight: About 40% ~50% of the weight of a comparable lead acid battery. ◆ Can be charged using most standard lead-acid charges (set). ◆ Wider temperature range:-20℃~60℃. ◆ Support for Series application expansion (up to 51.2V) and two in parallel.
Application
12v 24v 48v 200Ah 300Ah Lifepo4 Rechargeable Battery Pack 25.6V 180Ah
Product Advantage
12v 24v 48v 200Ah 300Ah Lifepo4 Rechargeable Battery Pack 25.6V 180Ah

why choose us?

1. Longer Cycle Life , >2000 cycles @1C 100%D0D , Offers up to 20 times longer , cycle life and five times longer , float/calendar life than lead acid battery , helping to minimize replacement cost and reduce total cost of ownership .

2. Superior Safety , Lithium iron Phosphate chemistry eliminates the risk of explosion or combustion due to high impact overcharging or short circuit situation .

3. Wider Temperature Range : 20°C-60°℃ .

4. Support 4pcs 12V Batteries Connect In Series To Get48V .

5. Lighter Weight , About 40% of the weight of a comparable lead acid battery A 'drop in' replacement for lead acid batteries .

6. Balancing BMS with balancing function .

Company Profile
12v 24v 48v 200Ah 300Ah Lifepo4 Rechargeable Battery Pack 25.6V 180Ah
12v 24v 48v 200Ah 300Ah Lifepo4 Rechargeable Battery Pack 25.6V 180Ah
Product packaging
12v 24v 48v 200Ah 300Ah Lifepo4 Rechargeable Battery Pack 25.6V 180Ah
12v 24v 48v 200Ah 300Ah Lifepo4 Rechargeable Battery Pack 25.6V 180Ah

FAQ

Q1. Can I have a sample order?

A. Yes, we welcome sample order to test and check quality.

Q2. What about the lead time?

A. Sample needs 3 days, mass production time needs 5-7 weeks, it depends on order quantity.

Q3. Do you have any MOQ limit?

A. Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ, 1pc for sample checking is available.

Q4. How do you ship the goods and how long does it take to arrive?

A. It usually takes 5-7 days to arrive. Airline and sea shipping is also optional.

Q5. How to proceed with an order?

A. Firstly let us know your requirements or application. Secondly, We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places a deposit for formal order. Fourthly We arrange the production.

Q6. Is it OK to print my logo on the product?

A. Yes. Please inform us formally before our production and confirm the design firstly based on our sample. Q7.Which certificates do you have?

A:We have CE/FCC/ROHS/UN38.3/MSDS ...etc.

Q8. How about warranty?

A:3 year warranty.
