Cable Fault Tester Accurately Locating Underground Cable Faults
Cable Fault Tester Accurately Locating Underground Cable Faults
Cable Fault Tester Accurately Locating Underground Cable Faults
Cable Fault Tester Accurately Locating Underground Cable Faults
Cable Fault Tester Accurately Locating Underground Cable Faults
Cable Fault Tester Accurately Locating Underground Cable Faults
Cable Fault Tester Accurately Locating Underground Cable Faults
Cable Fault Tester Accurately Locating Underground Cable Faults
Cable Fault Tester Accurately Locating Underground Cable Faults
Cable Fault Tester Accurately Locating Underground Cable Faults
Specifications
Brand Name :
XZH TEST
Model Number :
XHHD530M
Certification :
CE ISO
Place of Origin :
Xi'an city,Shaanxi,China
MOQ :
1set
Payment Terms :
T/T
Supply Ability :
2000 unit/year
Delivery Time :
5-8 work days
Packaging Details :
wooden packaging
Description

XHHD530M


Description

The hidden buried line fault detector is a dedicated instrument for power, broadcasting, post and telecommunications sectors, industrial and mining areas, and rural regions to locate underground cables (including direct - buried armored cables) and detect their faults. It identifies cable direction, precise underground position, approximate burial depth, and various faults like leakage and broken core—covering lines under paddy fields, cement/asphalt roads, bricks, stones, and building walls. It can also detect above - ground waterproof wires and cables with proper methods.

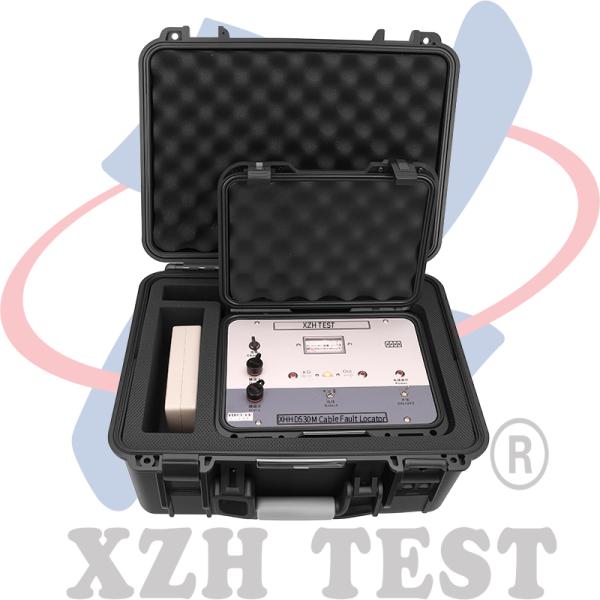

Transmitter

The transmitter panel is equipped with "power switch", "power indication"; "output selection", "high, medium, low"; "output indication" and "K measurement" switching switches, and the indicator light indicates the switching position; "output·KΩ measurement" shares an output terminal, which is switched by the "output·indication" and "KΩ measurement" switches; set "output 2" output terminal; square meter head indicates output and KΩ resistance. It can check the line on, off, mixed, and measure the size of the ground leakage resistance.

Output signal form

pulse period 1.34±0.15mS. Width 0.2 ±0.1mS intermittent period 1.8±1S.

Output voltage

pulse period Upp high range greater than 1000V, medium range greater than 60V, low range greater than 30V.

KΩ measurement

It can check the side line on, off, mixed and leakage group size, and determine the nature of the fault.

The "output 2" output terminal

It can output peak pulse short-circuit current 1-5A.

Output power

Pulse power greater than 2.5W (when high-end load resistance is 80KΩ).

Power supply

8.4V.


Instrument principle and structure

This instrument consists of a transmitter, a receiver, a probe and a head, a pair of plugs and plugs, connecting wires, etc.

Transmitter (1) Mainly outputs continuous pulse signals, which is the signal source for finding faults. (2) kΩ function, can detect the continuity, disconnection, mixing and leakage resistance of the line, and determine the nature and type of fault. (3) "Output 2" output terminal outputs large current


Packing list

Item

Name

Qty.

1

Transmitter

1

2

Receiver

1

3

Probe

1

4

Probe head

1

5

Insert rod(red black)

2

6

Connection lines

2

7

Charger

1
