Underground Cable Fault Pinpointer
Underground Cable Fault Pinpointer
Specifications
Brand Name :
XZH TEST
Model Number :
XHDD503C
Certification :
CE/ISO
Place of Origin :
China
MOQ :
1unit
Payment Terms :
T/T
Supply Ability :
2000units/year
Delivery Time :
5-8 work days
Packaging Details :
wooden box
Price :
Price Negotiable
Display Resolution :
1024*600
Portability :
Portable and lightweight
Product Name :
High-Speed Magnetic Field Propagation for Fast and Accurate Fault Point Detection
Signal Channels :
Sound channel and magnetic field channel
Power Supply :
Built-in lithium-ion battery pack (8.4V, 4.4Ah)
Dimensions :
479X387X210mm (with PVC case)
Probe Material :
Black aluminum alloy
Description

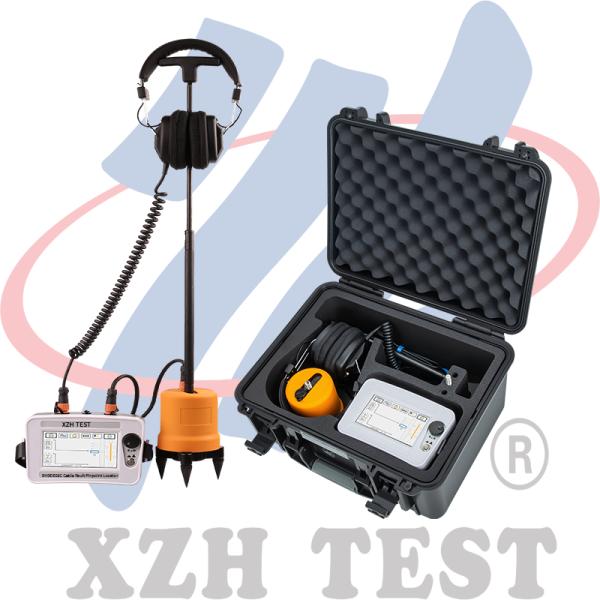

XHDD503C underground cable fault pinpoint locator

Introduction

To accurately locate power cable fault points, the cable fault location instrument uses the acoustic and magnetic synchronization method. The electronic flashover, generated by the impact discharge generator, is detected and amplified by a specialized probe. The precise location of the fault is determined through auditory and visual judgment. This device completes the precise positioning of cable faults within a rough measurement range and collects the time difference between acoustic and magnetic signals. It integrates advanced positioning technology with path-assisted testing, offering multiple test modes and a variety of informative prompts to efficiently and accurately locate cable faults.


Features


1. 5-inch touch-high brightness LCD ensures visibility under sunlight.
2. Adopt acoustic and magnetic synchronous positioning technology to automatically calculate the acoustic and magnetic time difference.can be manually adjusted to adapt to various environments.
3. It has background noise reduction technology and can choose from a variety of filtering methods. It has path deviation indication.
4. Equipped with multi-layer physical isolation signal sensors, waterproof grade IP65. Built-in large-capacity lithium battery, long standby time, equipped with fast charger.
5. Small and lightweight, easy to operate, and simple human-machine interface.


Technical indicators

1

Filter parameters

All-pass: 100Hz~1600Hz.

Low pass: 100Hz~300Hz.

Qualcomm: 160Hz~1600Hz.

Bandpass: 200Hz~600Hz.

2

Channel gain

8 levels adjustable.

3

Magnetic channel gain

8 levels adjustable.

4

Output gain

16 levels (0~112db)

5

Output impedance

350Ω

6

Acoustomagnetic positioning accuracy

less than 0.2m.

7

Path identification accuracy

less than 0.5m.

8

Power supply

4*18650 standard lithium batteries.

9

Standby time

more than 8 hours.

10

Volume

428L×350W×230H

11

Screen pixels

854-480

12

Brightness

800nit

13

Transmission speed unit

0-100ms

14

Accuracy

1ms

15

Sound bandwidth

100-1.6khz

16

Magnetic coil bandwidth

100-20kHZ

17

Both sound and magnetism are

greater than 75db

19

Ambient temperature

-25~65℃; Relative humidity: ≤90%.


Packing list

Underground Cable Fault Pinpointer
Product Details

Underground Cable Fault Pinpointer






























































Underground Cable Fault Pinpointer
