Electric Power Cable Path Meter Fault Locator Cable Pipeline Detector
Electric Power Cable Path Meter Fault Locator Cable Pipeline Detector
Electric Power Cable Path Meter Fault Locator Cable Pipeline Detector
Electric Power Cable Path Meter Fault Locator Cable Pipeline Detector
Specifications
Brand Name :
XZH TEST
Model Number :
XHGX507
Certification :
CE ISO
Place of Origin :
China
MOQ :
1unit
Payment Terms :
T/T
Supply Ability :
100 Pieces /Year
Delivery Time :
5-8work days
Packaging Details :
wooden box
Customized :
Customized
Transport Package :
Wooden
Specification :
72.5x43x21cm
Trademark :
XZH TEST
Origin :
China Xi′an
Customization :
Available
After-sales Service :
Warranty Certificate
Warranty :
1 Year
Description

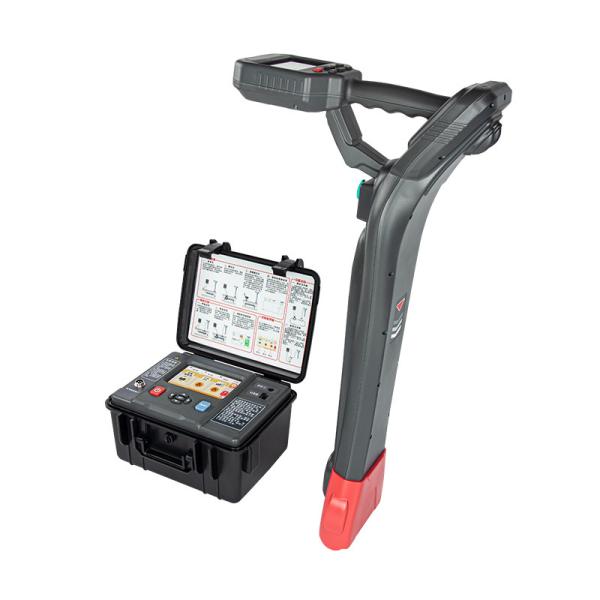

XHGX507 Cable fault comprehensive tester(cable pipeline locator)
Description:
Our company has long been committed to the research of cable fault testing. The cable fault intelligent tester has been used by thousands of users and has a high reputation in the field of power cable testing. The XHGX507 cable fault comprehensive tester developed by the company using the latest concept is especially suitable for fast and accurate positioning of cable-to-ground insulation faults, (live) path finding, cable identification, and deep positioning.
The XHGX507 cable pipe locator is designed based on the electromagnetic induction method and the application of the communication principle. Contains more user-friendly design in use. The large-screen LCD displays the signal strength, and the bars, arrows and voice prompts make it easy for the operator to determine the location of the cable underground and the point of failure. One person can complete all operations.
XHGX507 cable fault comprehensive tester(cable pipe locator) can be used to find the cable (live or uncharged) path and identification, but also can be used to find the direct buried cable fault. It can complete tasks that were only possible with the past few sets of instruments.
The XHGX507 cable fault comprehensive tester changes the traditional cable fault location concept. It does not require high-voltage test equipment, AC power supply, and waveform analysis. The wiring is simple and clear, and the method of use is easy to learn. In the past, when we searched for the cable path and identified the cable, it was necessary to test the power failure of the cable, and some running cables could not be powered off, so that it can easily solve the problem of finding and identifying the path of the live cable. It can also directly find the path and identification of 50Hz live cables.
Instrument features:
  1. All-digital locator, clear display and reliable positioning
  2. Portable and lightweight, easy to use, quick to find
  3. Built-in rechargeable battery, no utility power is needed for testing
  4. With cable buried depth display, current display
  5. Large-screen LCD graphic display, no earphones required during testing
  6. Built-in ohmmeter can measure cable loop resistance
  7. With two functions of cable location and fault finding
  8. Insulation faults to ground up to 2MΩ can be found
  9. With backlight function to adapt to night operation

All accessoris
Electric Power Cable Path Meter Fault Locator Cable Pipeline Detector
Technical specification
Transmitter
Working frequency low frequency (815Hz), intermediate frequency (8kHz), high frequency (33 kHz),
radio frequency (83 kHz)
Working mode direct connection method, coupling method (caliper method), induction method
Matching load 5 ohms-3000 ohms
Impedance display 5 digits
Overheating and over current automatic protection
Power output low gear, middle gear, high gear. Max 10W

Receiver
Working frequency low frequency (815Hz), intermediate frequency (8kHz), high frequency (33 kHz),
radio frequency (83 kHz), Passive frequency 50Hz
Antenna mode valley method (zero value mode), crest method (peak mode), step voltage
method and clamp current method (A-frame)
Current indication display the effective current value of the cable under test (unit: mA)
Working temperature -10ºC+55ºC
Power indicator graphic display
Battery life continuous work> 8 hours: intermittent work> 16 hours
Signal strength indication ladder diagram, digital range 0-999
Gain control manual adjustment, dynamic range of 100dB
Detection depth the maximum detection depth is around 10 meters
Maximum detection distance The cable with good insulation can be up to 15km in the direct connection
method
Depth measurement press the depth key to display three digits, the maximum depth can be
measured up to 10 meters
Accuracy Low frequency: ±(1-5)%≤2.5m Radio frequency: ±(5-12)%≤2.5m
