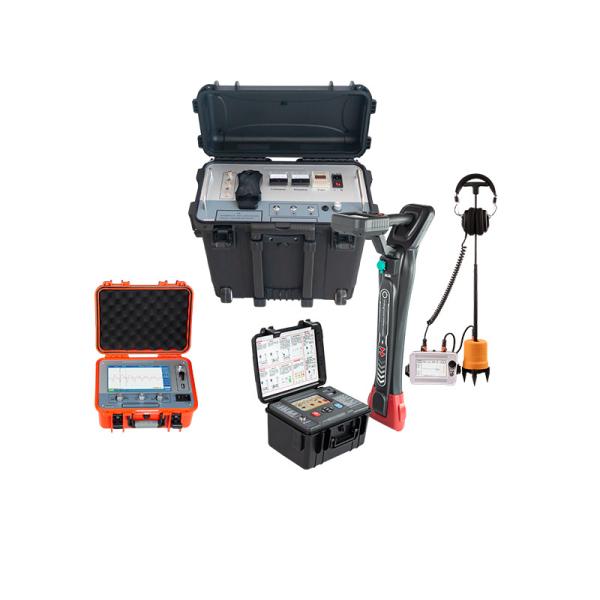

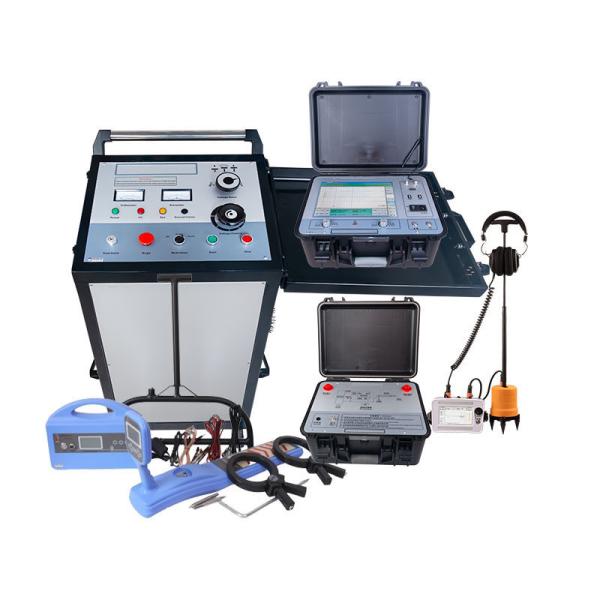

Portable cable fault location system

502A2+503C+507C+535-2L

Portable 400V 11kV Underground Cable Fault Locator System


System function

1.Use DC or high-voltage pulse to make the cable fault point flash over and discharge

2.Use the traveling wave reflection principle to make a rough measurement of all types of cable main insulation faults

3.Use the acoustic-magnetic synchronization method to make a precise measurement of all types of cable main insulation fault

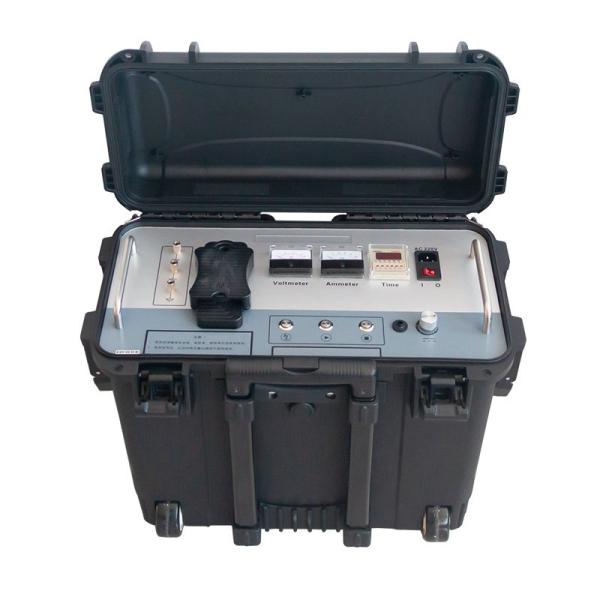

I,High voltage surge generator XHHV535-2L

Output mode EMP(impulse), DC(withstand voltage)
Output voltage 0-32kV
Built-in capacitor 2μF
Discharge energy Max. 1024J
Impact power 250W peak
Impulse rate Automatic impact for about 6 seconds
Surge voltage levels switch Manual
Voltage adjustment type Continuous
Indication High-voltage side voltage metering, indication of output voltage and current in real time
Operating modes switch Manual
Minimum Output current in DC mode 7.5mA at 32kV
Safe protection With zero start protection function, safe and reliable
Discharge Unique high-voltage measurement design, in the stop state, it will automatically discharge the internal capacitance of the device
Working power AC 220V±15% ,50Hz±1Hz(60Hz)
DC withstand voltage testing Output voltage adjustable and indication range 0-32kV, output current indication range 0-20A
Safety Over-voltage, Over-current, Overheating protection.
Automatic discharge after operation
Protection rating Not lower than IP54
Total weight Not more than 30kg

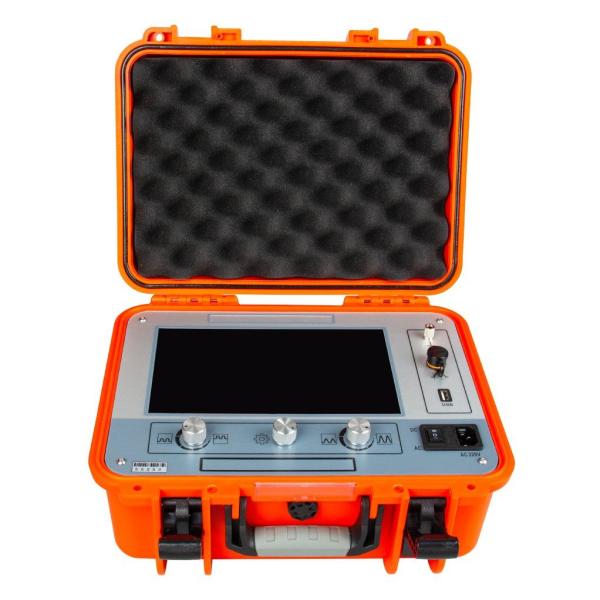

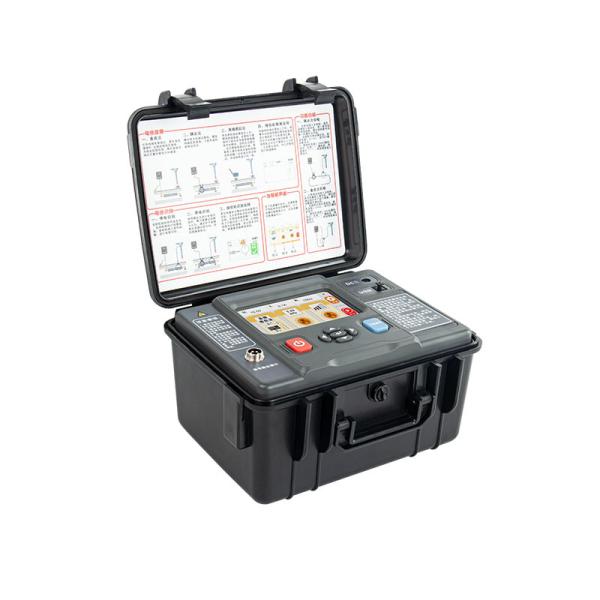

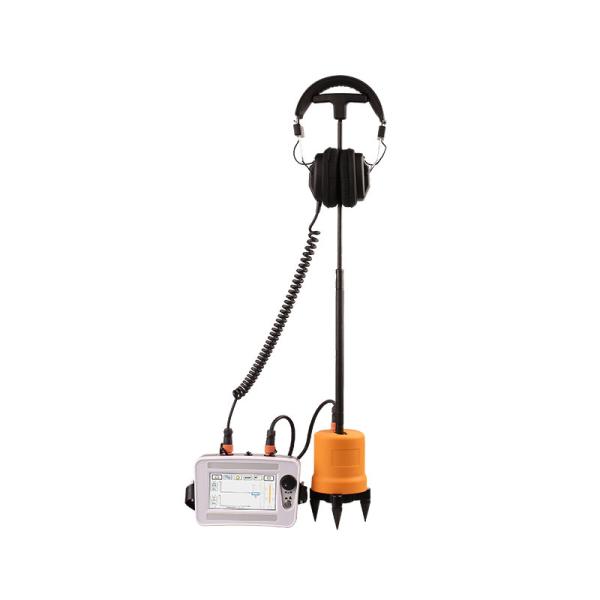

II,TDR cable fault locator XHGG502A2

Fixed-point mode Standard mode, enhanced mode, noise reduction mode, custom mode (ms, waveform)
Fixed point method Intelligent time difference method, electromagnetic inspection method, acoustic measurement method
Positioning accuracy Fixed point: 0.1m, Path: 0.1m
Display TFT ultra-bright 5-inch, 800×480 true color
language Graphical language is more intuitive
Gain 120dB, fully automatic adjustment, also can be adjusted manually
Frequency range 100~1600Hz
Dynamic Range 0~112dB(16 gears)
Synchronous trigger Acoustic fully automatic synchronous trigger; magnetic field fully automatic synchronous trigger
Detection range 0.00~99.99ms,75mV~75V
Probe Automatic mute, fully digital metal intelligent probe
Headphone 600Ω military-grade strong noise reduction and anti-interference technology
Working power 4*18650 Standard lithium battery
Working hours More than 8 hours
Ambient temperature -25~65ºC; relative humidity: ≤90%
Weight Host 0.6kg; Sensor 1.4kg
Waterproof grade IP65


IV,Cable path comprehensive tester XHGX507C

Receiver
Function Pipeline detection (cable position tracking, direction display, depth measurement, current measurement), cable identification, A-frame fault finding (optional function)
Power 8.4V large capacity rechargeable lithium battery
Input method Built-in receiving coil, flexible caliper, A-frame (optional function)
