Specifications
Model NO. :
XHDT702
Customized :
Customized
Output Current :
10A,1A Automatic Shift
Measuring Range :
10A:1momega;~2omega; 1A:2omega;~20omega;
Transport Package :
Wooden Box with Foam Inside
Trademark :
XZH TEST
Origin :
China Xi′an
Supply Ability :
1000pieces/Year
Customization :
Available
Warranty :
12 Months
Test Mode :
Saved Test
Description

Product Description

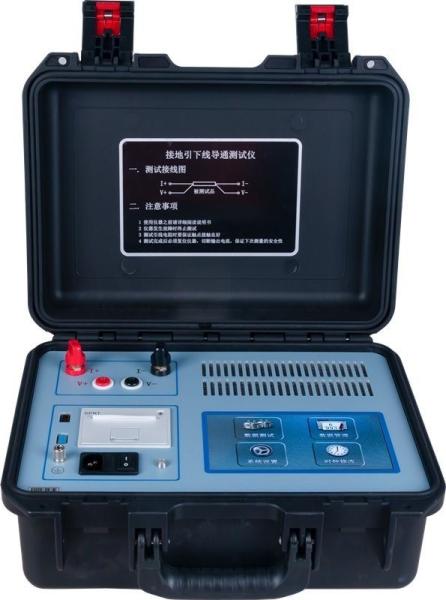

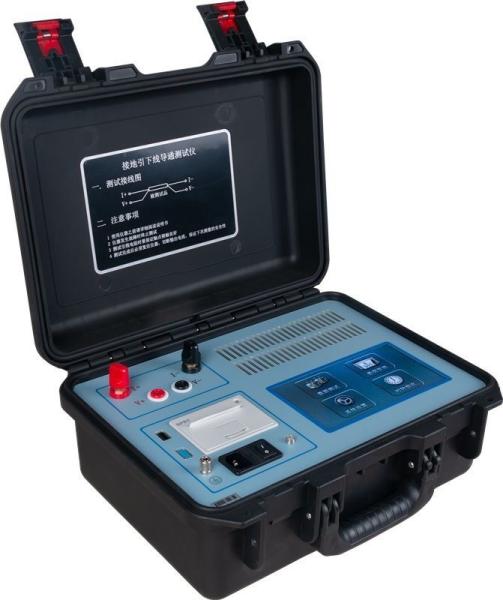

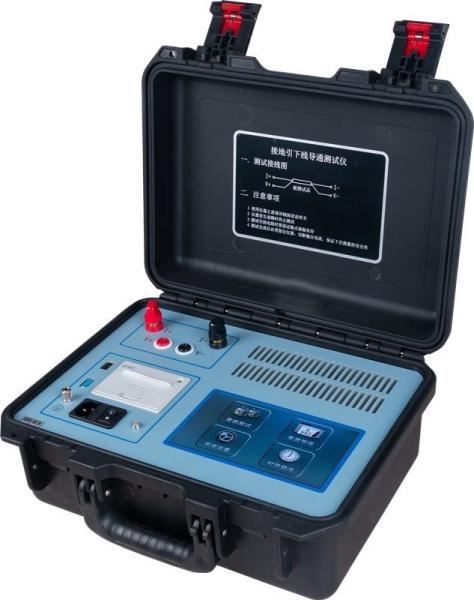

XHDT702 Grounding Down Conductor Tester

XHDT702 is specially designed for down conductors. The connection between the ground down conductors of power equipment and the ground network is the fundamental guarantee for the safe operation of power equipment. The connection between the power supply equipment and the grounding down conductor grounding grid. During long-term operation of power equipment, the connection may be affected by factors such as moisture, and the joint may rust or even break, resulting in the connection of the ground down conductor to the grounding grid. The point resistance increases, which cannot meet the requirements of power regulation, and there are hidden dangers of unsafe operation of the device.


XHDT702 Grounding Conductor Tester with 10A 1A Auto Shift
XHDT702 Grounding Conductor Tester with 10A 1A Auto Shift


XHDT702 Grounding Conductor Tester with 10A 1A Auto Shift
XHDT702 Grounding Conductor Tester with 10A 1A Auto Shift


Product Parameters

Main feature:

  1. The whole machine is controlled by high-speed single-chip microcomputer, with high automation and easy operation.
  2. The instrument adopts new power supply technology, with many current gears and wide measuring range.
  3. Intelligent power management technology, the instrument always works in the minimum power state, effectively reducing the internal heat of the instrument and saving energy.
  4. 320K240 dot matrix ultra-small pixel 65K true color LCD, clear display under strong light
  5. The instrument comes with power-down storage and can store 1000 sets of test data, which can be viewed at any time.
  6. The instrument comes with a lithium battery, built-in charger, integrated design, easy to operate
    Main technique:
  1. Output current: 1A, 3A, 5A, 10A
  2. Resolution: 0.1μΩ
  3. Range: 10mΩ-10Ω (1A Grade)
  4. 5mΩ-3Ω (3A Grade)
  5. 1mΩ-2Ω (5A Grade )
  6. 0.8mΩ-0.8Ω (10A Grade)
  7. Accuracy: ± (0.5% ± 2 words)
  8. Working temperature: 0 ~ 40 ° C
  9. Working humidity: <90% RH, no condensation
