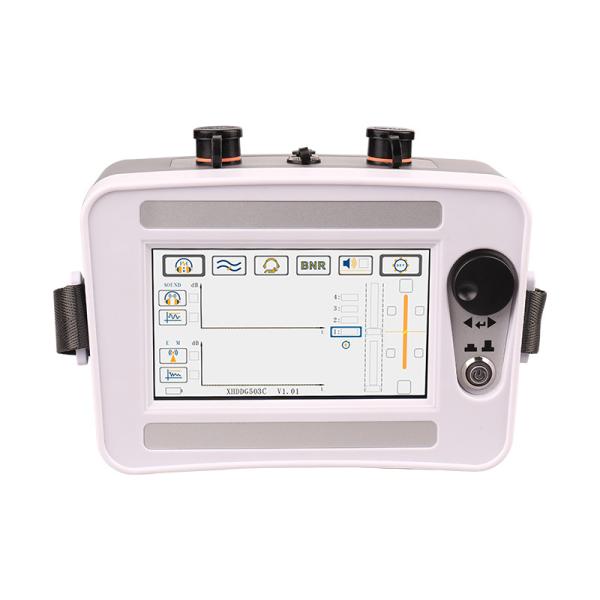

Highly Accurate TDR Cable Fault Locator cable fault pinpoint locator
Highly Accurate TDR Cable Fault Locator cable fault pinpoint locator
Highly Accurate TDR Cable Fault Locator cable fault pinpoint locator
Highly Accurate TDR Cable Fault Locator cable fault pinpoint locator
Highly Accurate TDR Cable Fault Locator cable fault pinpoint locator
Highly Accurate TDR Cable Fault Locator cable fault pinpoint locator
Specifications
Brand Name :
XZH TEST
Model Number :
XHDD503C
Certification :
XHDD503C
Place of Origin :
China
MOQ :
1 unit
Payment Terms :
T/T
Supply Ability :
2000 units per year
Delivery Time :
5-8 days
Packaging Details :
wooden packaging
Ambient Temperature :
-25～65℃
Relative Humidity :
≤90％
Detection Accuracy (Positioning) :
≤0.1m
Detection Accuracy (Path) :
≤0.5m
Description
XHDD503C

Introduction

Utilizing the acoustic and magnetic synchronization method, the cable fault location instrument is a powerful tool for accurately identifying power cable fault points. The electronic flashover, generated by the impact discharge generator, is captured and amplified by a specialized probe. The exact location of the fault is pinpointed through auditory and visual cues. This device completes the precise positioning of cable faults within a rough measurement range and collects the time difference between acoustic and magnetic signals. It integrates advanced positioning technology with path-assisted testing, offering multiple test modes and a variety of informative prompts to efficiently and accurately locate cable faults.


Features


1. 5-inch touch-high brightness LCD ensures visibility under sunlight.
2. Adopt acoustic and magnetic synchronous positioning technology to automatically calculate the acoustic and magnetic time difference
3. It has background noise reduction technology and can choose from a variety of filtering methods. It has path deviation indication.
4. Built-in large-capacity lithium battery, long standby time, equipped with fast charger.
5. Small and lightweight, easy to operate, and simple human-machine interface.


Technical indicators

Channel gain

8 levels adjustable.

Magnetic channel gain

8 levels adjustable.

Output gain

16 levels (0~112db)

Output impedance

350Ω

Power supply

4*18650 standard lithium batteries.

Standby time

more than 8 hours.

Screen pixels

854-480

Brightness

800nit

Transmission speed unit

0-100ms

Accuracy

1ms

Sound bandwidth

100-1.6khz

Magnetic coil bandwidth

100-20kHZ

Both sound and magnetism are

greater than 75db


Packing list
