Cable Fault Locator With Acoustic-Magnetic Synchronization For Accurate Location
Cable Fault Locator With Acoustic-Magnetic Synchronization For Accurate Location
Cable Fault Locator With Acoustic-Magnetic Synchronization For Accurate Location
Cable Fault Locator With Acoustic-Magnetic Synchronization For Accurate Location
Cable Fault Locator With Acoustic-Magnetic Synchronization For Accurate Location
Cable Fault Locator With Acoustic-Magnetic Synchronization For Accurate Location
Specifications
Brand Name :
XZH TEST
Model Number :
XHDD503C
Certification :
CE ISO
Place of Origin :
China
Payment Terms :
T/T
MOQ :
1unit
Supply Ability :
2000unit/year
Delivery Time :
5-8work days
Packaging Details :
wooden box
Description
XHDD503C underground cable fault pinpoint locator

Introduction

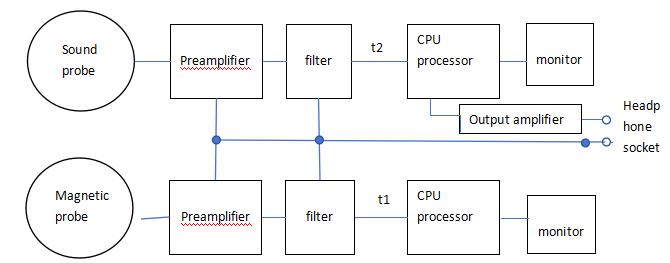

The cable fault locator is a powerful tool for accurate power cable fault positioning via acoustic-magnetic synchronization. Electronic flashover from the impact discharge generator is detected and amplified by a specialized probe; fault location is confirmed through audio-visual judgment. It enables precise positioning within a rough measurement range, collects acoustic-magnetic signal time difference, integrates advanced positioning tech with path-assisted testing, and offers multiple test modes plus informative prompts for efficient, accurate fault location.


Features

  1. 1.Boasting a 5-inch touch high-brightness LCD, the device ensures clear visibility when used under sunlight.​
  1. 2.By utilizing acoustic-magnetic synchronous positioning technology, it can automatically calculate the acoustic-magnetic time difference, and users can make manual adjustments to suit various environmental conditions.​
  1. 3.The device is equipped with background noise reduction technology, allows selection among multiple filtering methods, and provides path deviation indication to enhance usability.​
  1. 4.It incorporates multi-layer physically isolated signal sensors and meets the IP65 waterproof standard. Additionally, a large-capacity lithium battery is integrated for extended standby time, and a fast charger is provided as a complement.​
  1. 5.With its small size and lightweight design, the device is easy to handle, and its human-machine interface is simple, enabling convenient operation.​


Technical indicators

Power supply

4*18650 standard lithium batteries.

Standby time

more than 8 hours.

Screen pixels

854-480

Brightness

800nit

Transmission speed unit

0-100ms

Accuracy

1ms

Sound bandwidth

100-1.6khz

Magnetic coil bandwidth

100-20kHZ

Both sound and magnetism are

greater than 75db


Packing list

Cable Fault Locator With Acoustic-Magnetic Synchronization For Accurate Location

Cable Fault Locator With Acoustic-Magnetic Synchronization For Accurate Location
