Remote Control Power Cable Spiker Puncture Instrument Double Gun Cable Stabbing Device With Voice Broadcast
Remote Control Power Cable Spiker Puncture Instrument Double Gun Cable Stabbing Device With Voice Broadcast
Remote Control Power Cable Spiker Puncture Instrument Double Gun Cable Stabbing Device With Voice Broadcast
Remote Control Power Cable Spiker Puncture Instrument Double Gun Cable Stabbing Device With Voice Broadcast
Remote Control Power Cable Spiker Puncture Instrument Double Gun Cable Stabbing Device With Voice Broadcast
Remote Control Power Cable Spiker Puncture Instrument Double Gun Cable Stabbing Device With Voice Broadcast
Remote Control Power Cable Spiker Puncture Instrument Double Gun Cable Stabbing Device With Voice Broadcast
Remote Control Power Cable Spiker Puncture Instrument Double Gun Cable Stabbing Device With Voice Broadcast
Specifications
Brand Name :
XZH Test
Model Number :
XHZS506YS
Certification :
CE/ISO
Place of Origin :
China
MOQ :
1unit
Payment Terms :
T/T
Supply Ability :
2000unit/year
Delivery Time :
5-8work days
Packaging Details :
wooden box
Description

XHZS506YS

Product Description

The dual-gun remote control cable stabbing device is divided into two parts: the dual-gun remote control cable stabbing device is a low-speed piston type special device designed for stabbing cables, its structure is reasonable and light, the installation is very convenient, and can be installed at any Angle. The controller of the double gun remote control cable pricker uses advanced electronic detection lines. The double gun remote control cable pricker can remotely launch an iron nail to the cable, causing a short circuit of the cable. If the cable is live, it must be shot and discharged. If it is not live, it is a power cut cable.


III.Technical parameter

1. Shooter: 2 gun bodies;

2. Remote control distance: more than 10 meters, you can remote control through the wall;

3. Control line length: 5 meters;

4. Fixture diameter: φ30-150mm;

5. Working power supply: charging AC 220V/50Hz, the built-in battery can work continuously for more than 10 hours;

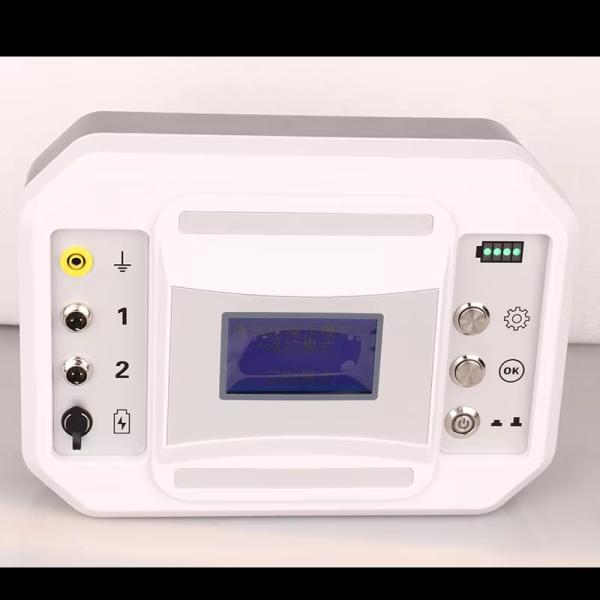

6. Controller: 270×230×120mm 2.5kg;

7. The whole set: 470×380×210mm 15.5kg (double gun 506YS).

Tie nail specification table:

Remote Control Power Cable Spiker Puncture Instrument Double Gun Cable Stabbing Device With Voice Broadcast

Features

1. When the Angle between the two guns is not 120°, at least one gun body can achieve the purpose of pricking and form a short circuit point;

2. Wired + wireless remote control, can be remote control wall;

3. Ac, DC dual use, built-in lithium battery pack and large capacity energy storage device, long charging time;

4. Human voice prompt and LCD display synchronous control and integration, simple operation;

5. Small size, light weight, very suitable for field use

Remote Control Power Cable Spiker Puncture Instrument Double Gun Cable Stabbing Device With Voice Broadcast
