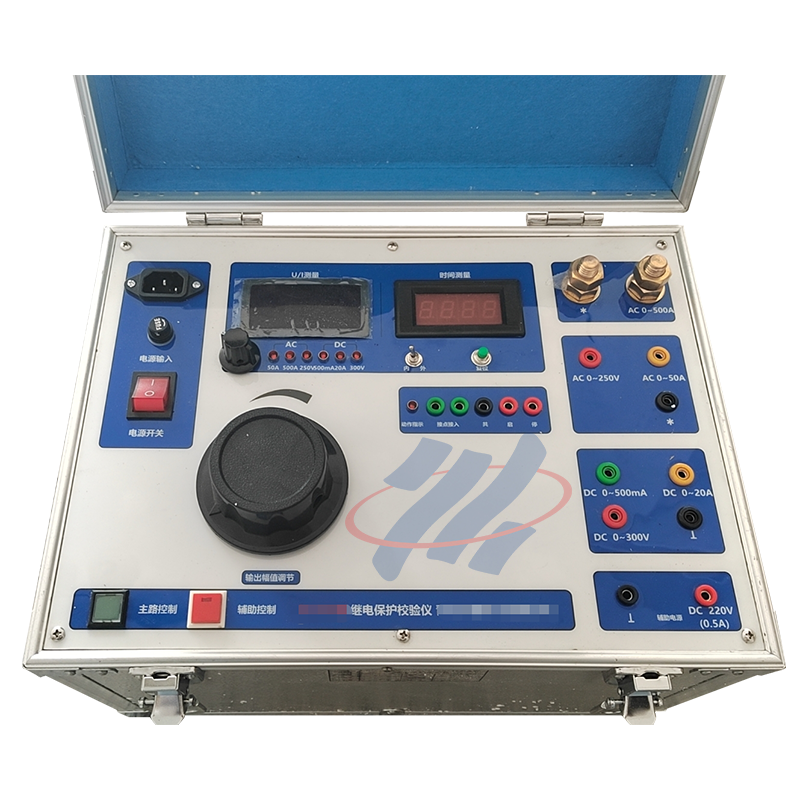

Single Phase Relay Tester with Real-time Display
Single Phase Relay Tester with Real-time Display
Specifications
Brand Name :
XZH TEST
Model Number :
XHJB612
Certification :
ISO CE
Place of Origin :
Xi'an Shaanxi China
MOQ :
1set
Payment Terms :
T/T
Supply Ability :
3000unit/year
Delivery Time :
5-8 work days
Packaging Details :
wooden packaging
Auxiliary Power Supply :
220V, 0～4A
Description

Product Description


XHJB612 Relay Protection Tester performs tests and calibration on electromagnetic, rectifier, transistor, and integrated circuit relays, covering operate/reset voltage/current and operate/reset time. It also measures parameters of reclosing relays such as operate value, reset value, charge and discharge time, and operate time. For GL and LL inverse-time relays, it tests starting current, induction element operate current, instantaneous operate current, and operate time.

Features


  • Large LCD with Chinese characters, easy to read.
  • Real-time contact status display; measurement ranges selectable by keys for easy operation.
  • Passive output signals for flexible auxiliary control in test applications.

    Single Phase Relay Tester with Real-time Display

    Technical Specifications

    ☆ Output: 4.5-digit digital voltmeter, 3.5-digit digital ammeter, 0.5% accuracy class

    AC Current: 0～5A, 0～50A, 0～150A

    AC Voltage: 0～250V, <5A

    DC Current: 0～20A

    DC Voltage: 0～250V, <5A; 0～12V, <0.5A

    ☆ Auxiliary Power Supply: 220V, 0～4A

    ☆ Time Measurement: 0～9999.9999S, Accuracy: 0.0001S

    ☆ Operating Power Supply: AC 220V ±10%, -15～40℃, 75% accuracy
