China Factor 40kV 6UF Oil-type Capacitor for High-Power Pulse
China Factor 40kV 6UF Oil-type Capacitor for High-Power Pulse
Specifications
Brand Name :
XZH Test
Model Number :
XHCC-6/40
Certification :
CE/ISO
Place of Origin :
China
MOQ :
1uint
Payment Terms :
T/T
Supply Ability :
2000unit/year
Delivery Time :
5-8 work days
Packaging Details :
wooden box
Description

Description
 XHCC-6/40 pulse capacitor 6--Rated capacitance 6uF 40--Rated voltage level 40kV

If the pulse capacitor accumulates the charging energy from a small - power power supply over a certain time duration and then discharges this energy quickly over a short time span when needed, it will generate a strong impact current and a high impact power. Given this situation, it can be mainly used in fields like high - voltage impulse discharge testing, high - energy physics, oscillation circuits, geological prospecting and so on.

Product performance

Voltage resistance between poles: 1.1~1.5Un 2s Pole to shell: 2Un 60s;

Insulation resistance: RC≥7500MΩ·uF;

Loss: ≤0.01 (1kHz).

Ambient temperature: -20~+50ºC;

Altitude: ≤2000 meters, if it is greater than 2000 meters, it will be explained separately;

Capacitance error: ±5%;

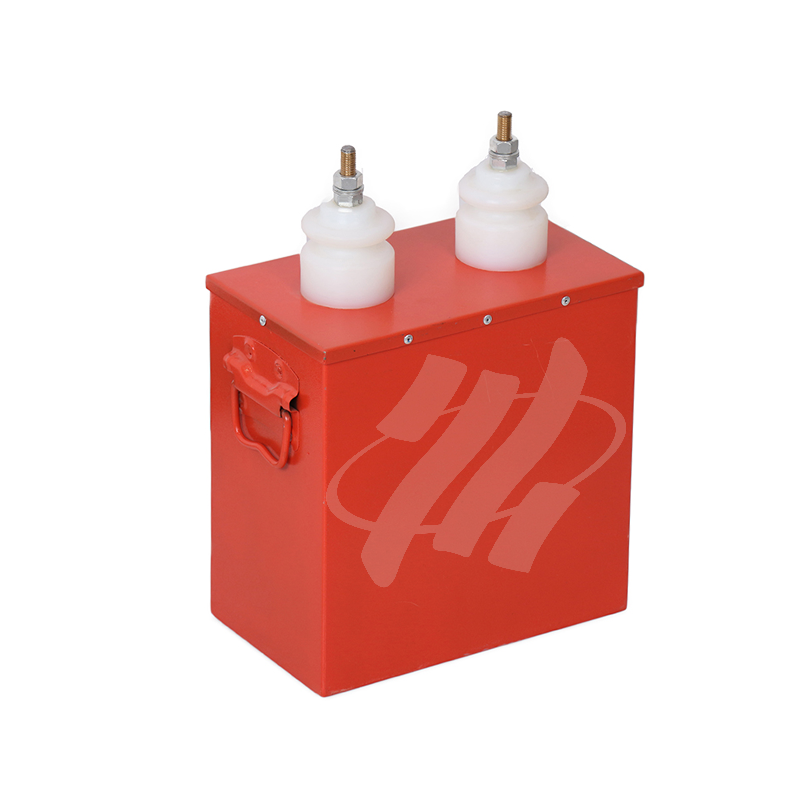

China Factor 40kV 6UF Oil-type Capacitor for High-Power Pulse


Precautions and Common Faults
1. It is strictly forbidden to hit and collided the high-voltage pulse capacitor, otherwise the internal film will be easily damaged.
2. When using Pulse Energy Storage Capacitors, please read the instructions and the content of the capacitor label to prevent overvoltage use.
3. During use, pay attention to the withstand voltage and safety distance of the connecting wire.
4. After the test is completed, the high voltage end must be fully discharged.
5. During use, if there is abnormal sound inside the capacitor, it is recommended to stop using it, as there is a risk of internal insulation damage.
6. If there are bulges or bulges on the capacitor shell, it is recommended to stop using it, as there is a risk of deterioration of the internal material and insulation reduction.
