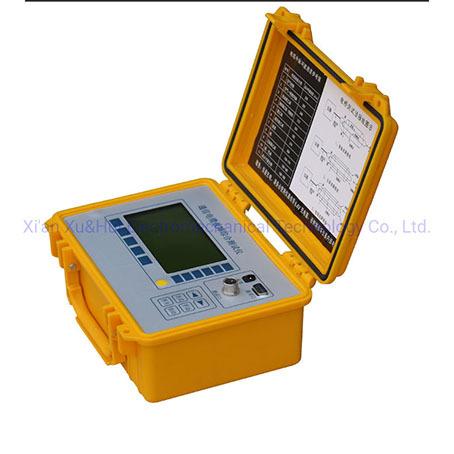

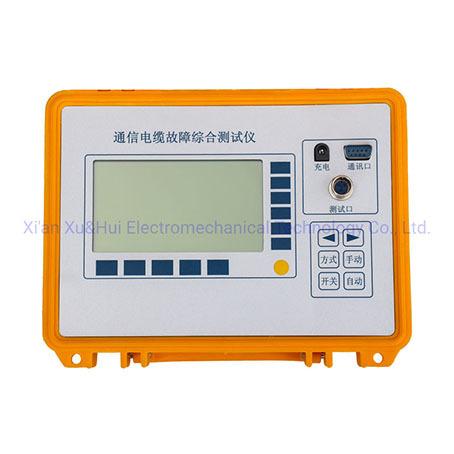

The XHGG500 fully automatic Telecom Cable Fault Locator is a high - tech product that utilizes modern microelectronic technology. It combines pulse reflection testing and intelligent electric bridge testing to accurately identify the location of faults such as those in urban lead sheath cables, plastic cables, user line breaks, crossed lines, gas leaks, poor insulation, and weak connections. The device significantly reduces troubleshooting time and labor intensity for line maintenance staff while increasing work efficiency. Moreover, it can be used in the acceptance and inspection of electrical cable line projects.

Both the display interface and operating system can be made in English

Main features

1. Both pulse reflection testing and intelligent electric bridge testing can test broken lines, crossing lines, bad insulation and other types of faults.
2. Automatic testing, just press the key for one time, the fault will be found.
3. Manual testing function is preserved.
4. English menu, easy to master and use.
5. With megameter and ohmmeter, enables to test insulation resistance and loop resistance.
6. Preserve 10 testing waveforms permanently, which are cannot lost after switch off, some parts replaces the functions of printer.
7. Technology of automatic gain and automatic impedance balance replaces the cumbersome potentiometer adjustment.
8. Background lights display supports night operation.
9. Rechargeable lithium battery, intelligent charge without duty.
10. Small dimension, light weight, portable design.

The Main Technical Parameters

1. Pulse reflection testing:
a.The largest measuring range is 8 km, you can choose suitable measurement range according to the length of cable.
b.Testing blind spot: 0 m.
c.Testing resolution:
1m when it is the minimum range.
8m when it is the maximum range.
d.Pulse width: 80ns-10μs with automatic adjustment
e.Automatic impedance balance adjustment
f.Automatic and manual gain adjustment.

2. Intelligent electric bridge testing:
a.Enable to test bad insulation resistance max: 100 MΩ.
b.Testing accuracy:±1%×cable length
c.The longest cable span: 9999m.
d.It can be divided into three segments to input diameters: 0.3mm-0.99mm

3. Others
a.Rechargeable time: 4 hours
b.Continued operating time: 6 hours
c.Dimension: 230×150×160mm
d.Weight: 2Kg
