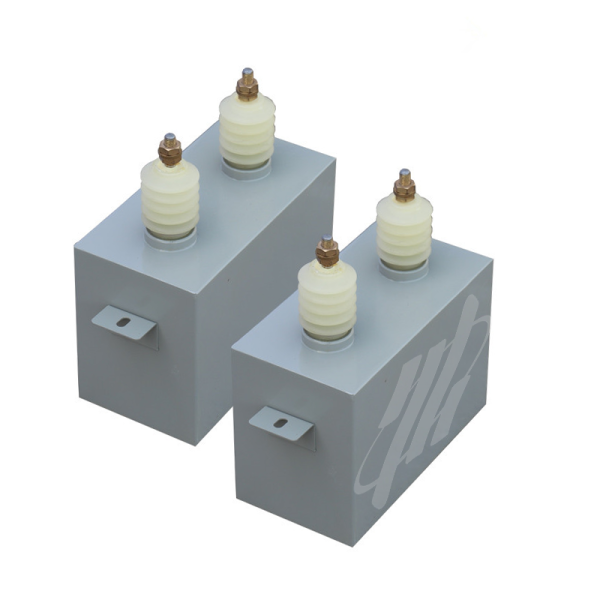

30kv 4UF Precision Pulse Energy Capacitor
30kv 4UF Precision Pulse Energy Capacitor
Specifications
Brand Name :
XZH Test
Model Number :
XHCC-4/30
Certification :
CE/ISO
Place of Origin :
China
MOQ :
1unit
Payment Terms :
T/T
Supply Ability :
2000 unit/year
Delivery Time :
5-8 work days
Packaging Details :
wooden box
Description

XHCC-4/30

Model NO.
XHCC-4/30

Rated Capacity
4UF

Transport Package
Wooden Case

Trademark
XZH TEST

Product Description

Product Description

In the world of electrical components, the pulse capacitor stands out. Imagine it as a tiny energy bank. It patiently absorbs the charging energy from a small - power supply over a certain period. When the need arises, it springs into action, releasing all that stored energy in the blink of an eye. This quick release creates a powerful impact current and a surge of energy. It's a key player in high - voltage impulse discharge tests, high - energy physics experiments, oscillation circuits, and geological exploration.


Product Parameters
  1. Ambient temperature: -20~+50ºC;
  2. Altitude: ≤2000 meters, if it is greater than 2000 meters, it will be explained separately;
  3. Capacitance error: ±5%;
  4. Voltage resistance between poles: 1.1~1.5Un 2s Pole to shell: 2Un 60s;
  5. Insulation resistance: RC≥7500MΩ·uF;
  6. Loss: ≤0.01 (1kHz).


Precautions and Common Faults
1. It is strictly forbidden to hit and collided the high-voltage pulse capacitor, otherwise the internal film will be easily damaged.
2. When using Pulse Energy Storage Capacitors, please read the instructions and the content of the capacitor label to prevent overvoltage use.
3. During use, pay attention to the withstand voltage and safety distance of the connecting wire.
4. After the test is completed, the high voltage end must be fully discharged.
5. During use, if there is abnormal sound inside the capacitor, it is recommended to stop using it, as there is a risk of internal insulation damage.
6. If there are bulges or bulges on the capacitor shell, it is recommended to stop using it, as there is a risk of deterioration of the internal material and insulation reduction.
