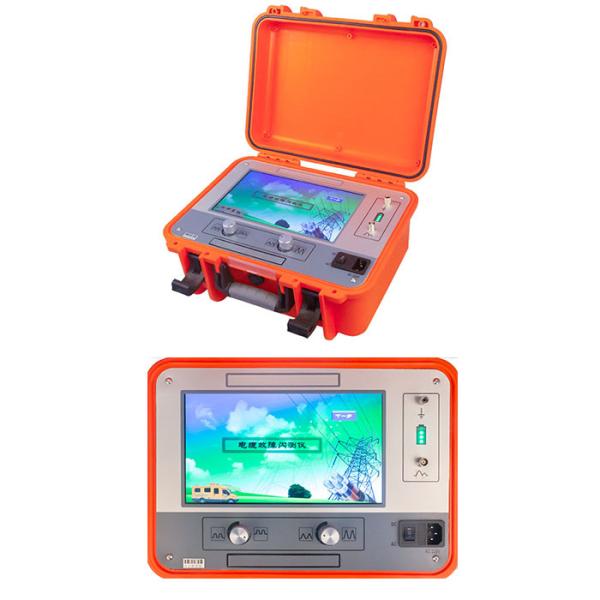

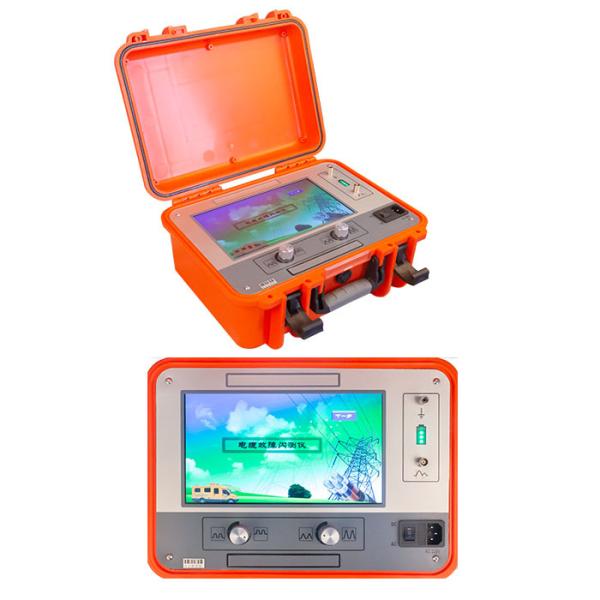

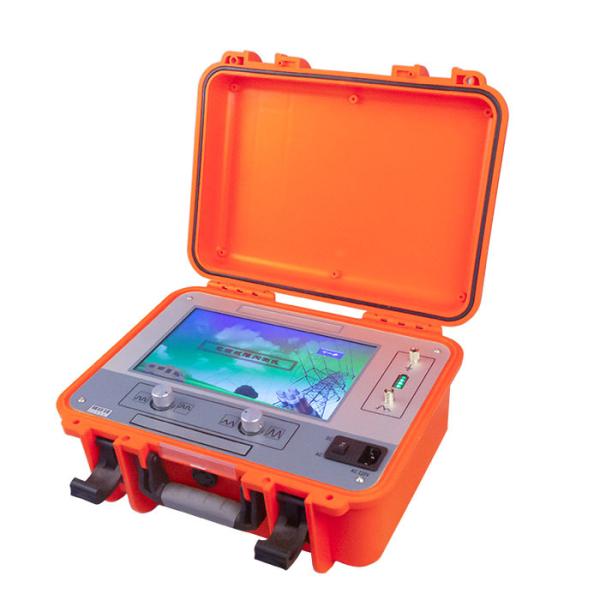

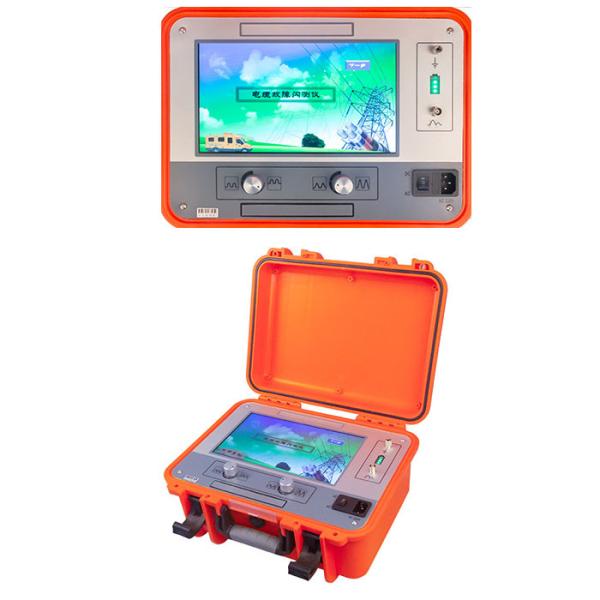

XHGG501D TDR cable fault locator is suitable for measuring low resistance, short circuit, open circuit and disconnection faults of various materials of various materials with different cross-sections and different media, high-frequency coaxial cables, local telephone cables, street light cables, and buried wires, and High-resistance leakage and high-resistance flashover faults.

1. Industrial grade 8"LCD display-viewing angle] 160°, working temperature -25ºC~+65ºC;

2. SCM centralized control, touch operation mode, strong anti-interference ability;

3. It has the functions of distance measurement, speed measurement and resistance measurement;

4. Fully automatic continuous sampling, never miss any discharge waveform;

5. Test method: flashover sampling, low-voltage pulse sampling

6. Pulse amplitude: 100Vpp

7. Pulse width: 0.1uS and 2uS

8. Measuring distance: Smax: 30km; Smin: 15m

9. Measurement error: absolute error of rough measurement: ±10m relative error of rough measurement: ±1%

10. Power supply mode: built-in lithium rechargeable battery, which can work continuously for 6 hours

It can also be connected to AC 220V±10% 50Hz power supply
Charging in non-working state.


English version available, welcome you contact us for more information.
---------------------------------------------------------------------------------------------------------------------------------------------------------

System

Cable fault location case

Cable Model :10kV XLPE cable.

Testing device: 1. TDR underground cable fault locator

2. DC High voltage surge generator
3. Cable fault pinpointer

Packaging: Wooden box

Shipping: DHL TNT FedEx and UPS etc.

Shipping time: 7-15 days if it's in stock.
