10kV Cable Sheath Fault Locator for Urban Network Transformation
10kV Cable Sheath Fault Locator for Urban Network Transformation
10kV Cable Sheath Fault Locator for Urban Network Transformation
10kV Cable Sheath Fault Locator for Urban Network Transformation
10kV Cable Sheath Fault Locator for Urban Network Transformation
10kV Cable Sheath Fault Locator for Urban Network Transformation
10kV Cable Sheath Fault Locator for Urban Network Transformation
10kV Cable Sheath Fault Locator for Urban Network Transformation
Specifications
Brand Name :
XZH TEST
Model Number :
XHHD523L
Certification :
CE/ISO
Place of Origin :
China
MOQ :
1 Unit
Payment Terms :
T/T
Supply Ability :
1000 units per year
Delivery Time :
5-8 work days
Packaging Details :
wooden packaging
Price :
Price Negotiable
Input Voltage :
220V (±10%), 50Hz (±2Hz)
Output Voltage :
0-10kV (square wave), adjustable
Output Current :
0-200mA
Output Capacity :
2kVA
Frequency Adjustment :
0.2Hz-5Hz (adjustable range)
Description
Chinese National Standard Compliant Cable Sheath Fault Locator for Urban Network Transformation
With the full deployment of urban network transformation projects, many power supply bureaus, construction teams, and design units are encountering 110kV XLPE cables for the first time. Due to time constraints and limited experience, many cables fail the withstand voltage test (10kV/1min).
Most outer sheaths use HDPE material, which passes factory DC 25kV/5min withstand voltage tests with leakage currents as low as tens of μA. Post-installation defects typically result from external damage during laying, including soil filling and cover issues. Operational defects may include termite damage, water ingress in grounding boxes, moisture penetration at grounding wire bifurcations, or insulation resistance reduction.
Our high-voltage cable outer sheath fault detector (output voltage ≤10kV) complies with Chinese national standard GB50150-2006 for cable sheath testing, including handover tests, preventive tests for cross-interconnect systems, and fault location. It quickly and accurately identifies grounding faults and leakage currents in 10kV-500kV single-core and three-core cables, while performing 5kV-10kV DC withstand voltage tests (1 minute) on HDPE and PVC sheaths.
Key Applications
  • Essential for maintenance of 10kV-500kV cable systems
  • Critical tool for ultra-high voltage cable engineering companies
  • Valuable for power transmission and transformation projects
Main Features
  • Over-current, overvoltage, and overheating automatic protection
  • Zero-start protection for enhanced safety
  • Self-discharge design automatically zeros high-voltage output

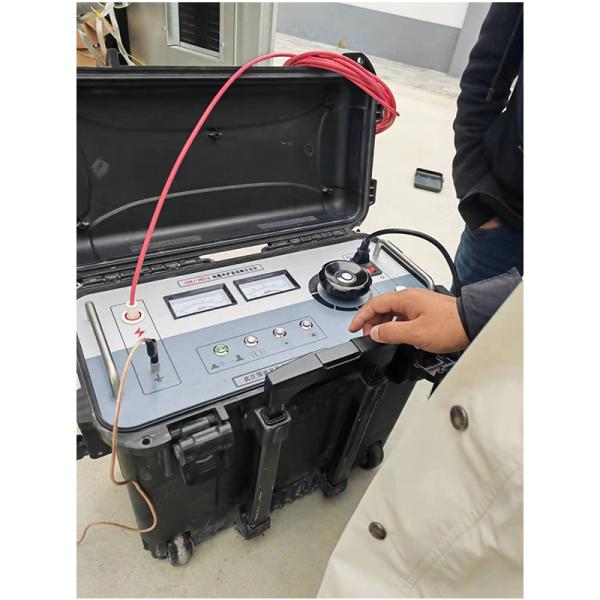

  • Dual-pointer current/voltage meter for clear readings
  • One-button switching between location and withstand voltage modes
  • No test range blind spots

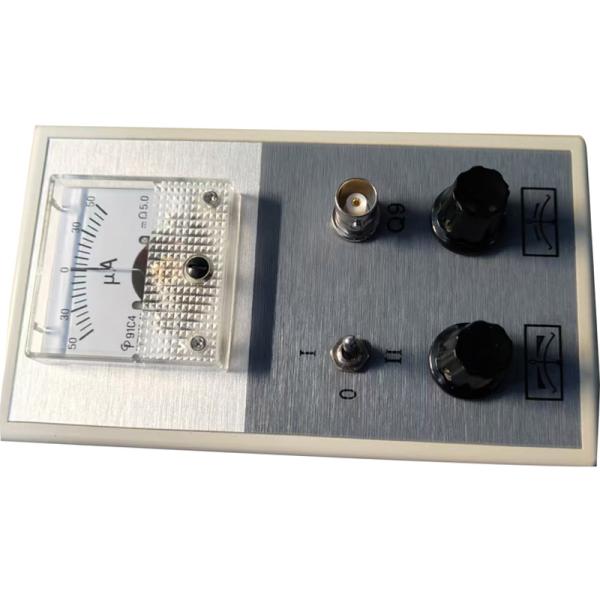

  • Adjustable receiver sensitivity for precise location
  • Over-current protection switch for both testing modes
Technical Specifications
Input Voltage 220V (±10%), 50Hz (±2Hz)
Output Voltage 0-10kV (square wave), adjustable
Output Current 0-200mA
Output Capacity 2kVA
Frequency Adjustment 0.2Hz-5Hz (adjustable range)
10kV Cable Sheath Fault Locator for Urban Network Transformation 10kV Cable Sheath Fault Locator for Urban Network Transformation 10kV Cable Sheath Fault Locator for Urban Network Transformation
