Acoustic and Magnetic Synchronization Underground Cable Fault Pippointer
Acoustic and Magnetic Synchronization Underground Cable Fault Pippointer
Specifications
Brand Name :
XZH Test
Model Number :
XHDD503
Certification :
CE/ISO
Place of Origin :
China
MOQ :
1unit
Supply Ability :
2000unit/year
Delivery Time :
5-8work days
Packaging Details :
wooden box
Payment Terms :
T/T
Description

XHDD503 Underground Cable Fault Pinpointer


Product Description


Description

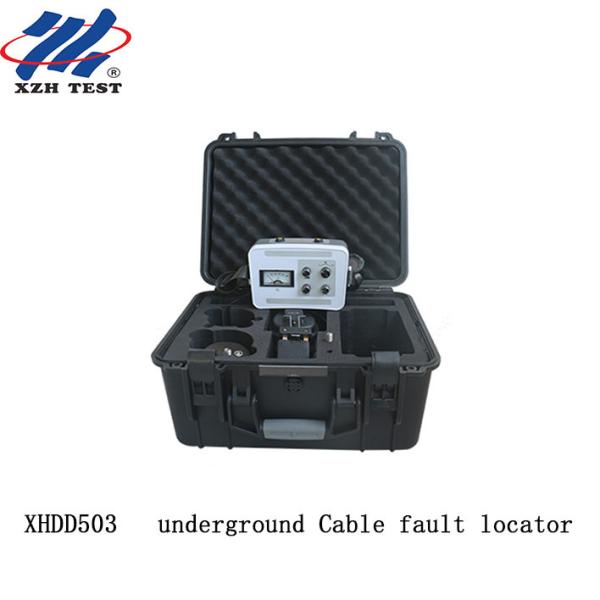

Developed independently by our company, the XHDD503 portable underground cable fault locator utilizes highly mature acoustic-magnetic synchronization detection technology, which has been refined over more than 50 years and is widely accepted by industry users. This compact and lightweight device comes in a protective PVC case for easy portability post-detection. It features a microammeter display and adjustable knobs for electrical level, frequency, and volume. Observing the microammeter pointer's swing allows you to monitor the magnetic field strength during flashover discharge at the fault point. The electrical level knob can be adjusted to set the magnetic field strength reference. During path detection, the frequency knob can be tuned to make the path signal more recognizable. When locating faults, the frequency knob can be adjusted to avoid radio signals, and the volume can be regulated to ensure clear sound signals.




Technical Parameters

Magnification 500,000 times
Positioning accuracy ±0.2m
Output impedance 350Ω
Working power supply Standard 3.7V 3200mAh battery 4 cells
Quiescent current <10mA
Detection depth: More than 10 meters
Working conditions Ambient temperature: -25~65ºC; Relative humidity: ≤90%.



Product Features
1. Synchronously receive vibration waves, sound waves and electromagnetic waves generated during discharge at the fault point;
2. The acoustic and magnetic channels are designed separately and powered separately, with stronger anti-interference ability;
3. Super magnification, detection depth is greater than 10 meters;
4. Ultra-low and low-power design, quiescent current is less than 10mA, and continuous operation is more than 20 hours;
5. Analog meter design, signal strength and trend are clear at a glance;
6. Zero level can be adjusted arbitrarily, suitable for various strong and weak scenes.


Packing List


Acoustic and Magnetic Synchronization Underground Cable Fault Pippointer


Acoustic and Magnetic Synchronization Underground Cable Fault Pippointer

Acoustic and Magnetic Synchronization Underground Cable Fault Pippointer
