Cable Fault Pinpointing Locator with Powerful Background Noise Reduction
Cable Fault Pinpointing Locator with Powerful Background Noise Reduction
Specifications
Brand Name :
XZH Test
Model Number :
XHDD503C
Certification :
CE/ISO
Place of Origin :
China
MOQ :
1unit
Payment Terms :
T/T
Supply Ability :
2000unit/year
Delivery Time :
5-8work days
Packaging Details :
wooden box
Description

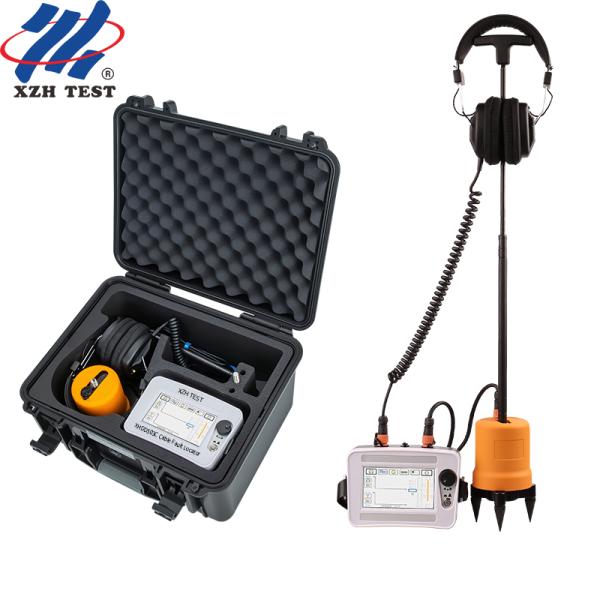

XHDD503C underground cable fault pinpoint locator

Introduction

As a powerful tool for identifying power cable fault points, the cable fault locator adopts the acoustic-magnetic synchronization method. Electronic flashover generated by the impulse discharge generator is detected and amplified via a specialized probe, and the fault’s precise location is determined through audio-visual judgment. This device achieves accurate cable fault positioning within a rough measurement range while collecting the time difference between acoustic and magnetic signals. Integrating advanced positioning technology with path-assisted testing, it offers multiple test modes and various informative prompts to locate cable faults efficiently and accurately.


Features

  1. A 5-inch touch-enabled high-brightness LCD guarantees visibility even under sunlight.
  1. Acoustic-magnetic synchronous positioning technology is adopted to automatically calculate the acoustic-magnetic time difference; manual adjustment is also available for adapting to different environments.
  2. It features background noise reduction technology, offers multiple filtering methods to choose from, and includes path deviation indication.
  3. Equipped with multi-layer physically isolated signal sensors, it has an IP65 waterproof rating. A large-capacity lithium battery is built-in for long standby time, along with a fast charger.
  1. It is small and lightweight, easy to operate, and comes with a simple human-machine interface.


Technical indicators

Filter parameters

All-pass: 100Hz~1600Hz.

Low pass: 100Hz~300Hz.

Qualcomm: 160Hz~1600Hz.

Bandpass: 200Hz~600Hz.

Channel gain

8 levels adjustable.

Magnetic channel gain

8 levels adjustable.

Output gain

16 levels (0~112db)

Output impedance

350Ω

Acoustomagnetic positioning accuracy

less than 0.2m.

Path identification accuracy

less than 0.5m.

Power supply

4*18650 standard lithium batteries.

Standby time

more than 8 hours.


Packing list
