Automatic Analysis TDR Cable Fault Locator Rough Measurement 65KM
Automatic Analysis TDR Cable Fault Locator Rough Measurement 65KM
Specifications
Brand Name :
XZH TEST
Model Number :
XHGG502A2
Certification :
ISO
Place of Origin :
Xi'an ShanXi China
MOQ :
1set
Payment Terms :
T/T
Supply Ability :
3000unit/year
Delivery Time :
5-8 work days
Packaging Details :
wooden packaging
Low voltage pulse amplitude :
100V±15%
Screen size :
10.1-inch full-color TFT touchscreen display
Minimum resolution :
0.1m
Description

Description

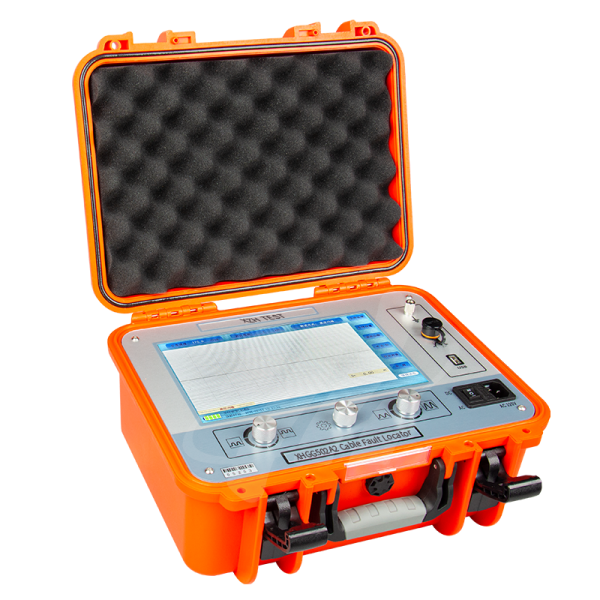

This cable fault locator is a special instrument for measuring and analyzing the status and fault distance of power cables.


With the function of testing cable wave speed, cable length and fault distance


The cable fault tester adopts an industrial-grade 10.1-inch touch-integrated computer, a simple operating software interface, industrial-grade integrated circuits and devices, and a built-in large-capacity lithium-ion battery, which is stable, reliable, and easy to use.


Technical specification


Low voltage pulse amplitude

100V±15%

Ranging range

≥65km

Test range

300m/1km/5km/25km/65km

Pulse width

0.125uS/0.50uS/2.50uS/7.25uS/10.0uS

Minimum resolution

0.1m

Test blind area

≤20m

Power supply mode

charging AC110V～240V, 50Hz/60Hz

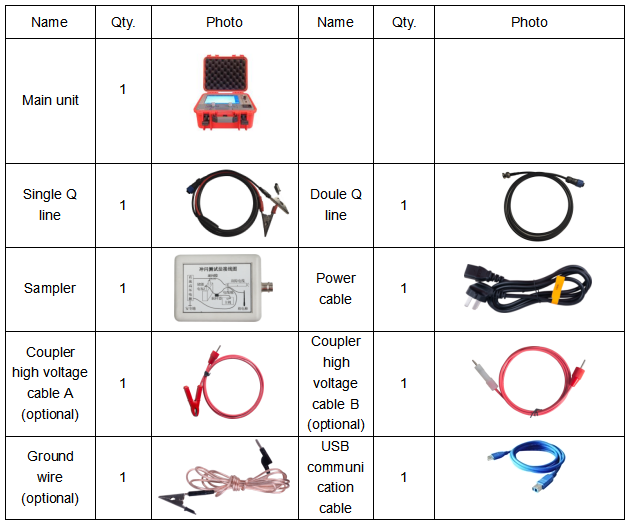

Packing list

Automatic Analysis TDR Cable Fault Locator Rough Measurement 65KM
