Automatic Analysis TDR Cable Fault Locator Minimum Resolution 0.10 M
Automatic Analysis TDR Cable Fault Locator Minimum Resolution 0.10 M
Specifications
Brand Name :
XZH TEST
Model Number :
XHGG502A2
Certification :
CE
Place of Origin :
XI'AN ShanXi
MOQ :
1SET
Payment Terms :
T/T
Supply Ability :
3000unit/year
Delivery Time :
5-8 work days
Packaging Details :
wooden packaging
Screen size :
10.1-inch full-color TFT touchscreen display
Distance range :
≥65km
sampling frequency :
80MHz
Description

Description


This cable fault locator is a special instrument for measuring and analyzing the status and fault distance of power cables. Cable speed measurement, cable length test, cable fault distance test.


Technical specification


Sampling frequency

80MHz

Low voltage pulse amplitude

100V±15%

Ranging range

≥65km

Test range

300m/1km/5km/25km/65km

Pulse width

0.125uS/0.50uS/2.50uS/7.25uS/10.0uS

Minimum resolution

0.1m

Test blind area

≤20m

Measurement error

≤±(0.5%×L+1m), L is the cable length

Power supply mode

charging AC110V～240V, 50Hz/60Hz



Automatic Analysis TDR Cable Fault Locator Minimum Resolution 0.10 M

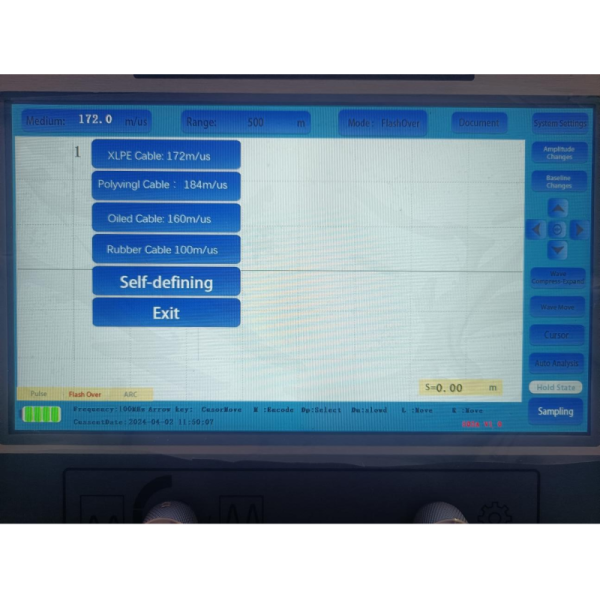

The system has an automatic ranging function


Automatic Analysis TDR Cable Fault Locator Minimum Resolution 0.10 M

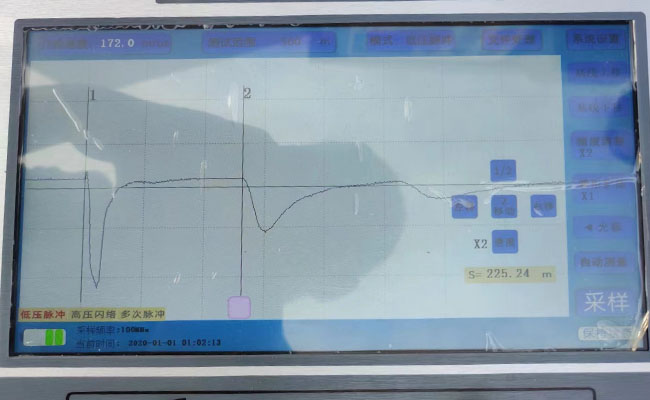

Low voltage pulse sampling interface


Automatic Analysis TDR Cable Fault Locator Minimum Resolution 0.10 M

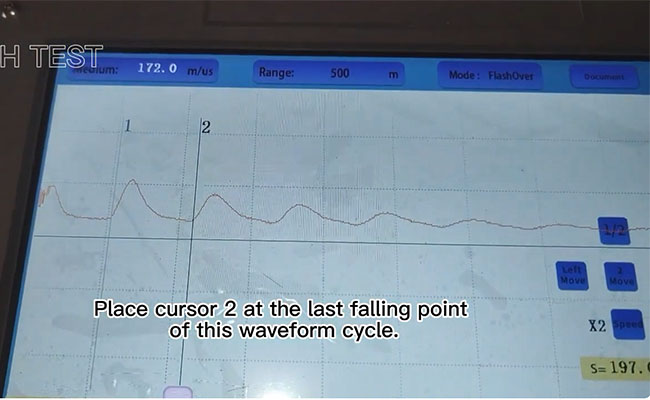

High voltage flashover(ICE) sampling interface

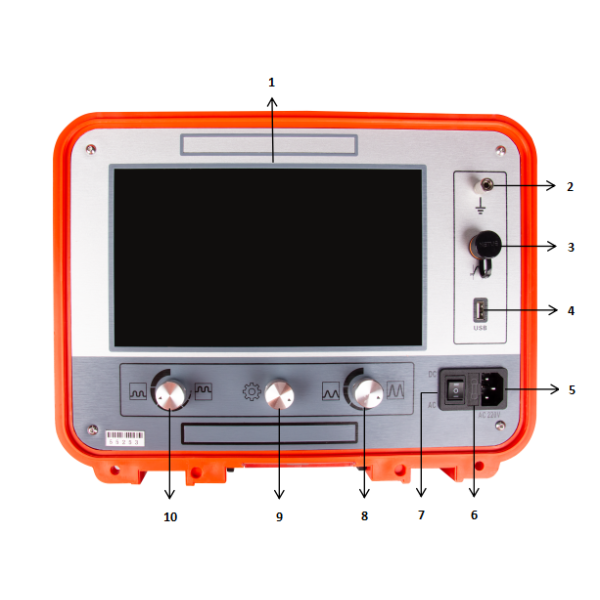

User Interface Introduction

Automatic Analysis TDR Cable Fault Locator Minimum Resolution 0.10 M

1. Display: 10.1-inch full-color TFT touchscreen display;

2. Grounding: Safety grounding terminal;

3. Signal: Low-voltage pulse method pulse signal output interface, high-voltage flashover method sampler, and multi-pulse method coupler receiving signal input interface;

4. USB: Import waveform files to a computer via USB communication;

5. Power Socket: Instrument operating power supply, AC 220V connection port/charging port;

6. Fuse: Fuse installation location for the AC 220V power supply system;

7. Power Switch: "I" position, using AC 220V power to power the system;

"II" position, using the internal battery to power the system; when the "Power Socket" is connected to AC 220V power, the battery is also charged;

"O" position, turning off the system power;

8. Amplitude: Adjust the amplitude knob when acquiring waveforms to change the amplitude of the acquired waveform;

9. Operation Knob: Rotary button for system interface operation control, rotate to select and press to confirm;

10. Displacement: When acquiring waveforms, adjust the displacement knob to change the baseline height of the acquired waveform.
