10 LV TDR Cable Fault Locator With 30km Range For Rough Underground Cable Detection
10 LV TDR Cable Fault Locator With 30km Range For Rough Underground Cable Detection
Specifications
Brand Name :
XZH TEST
Model Number :
XHGG501D
Certification :
ISO/CE
Place of Origin :
Xi'an ShanXi China
MOQ :
1set
Payment Terms :
T/T
Supply Ability :
3000unit/year
Delivery Time :
5-8 work days
Packaging Details :
wooden packaging
Description

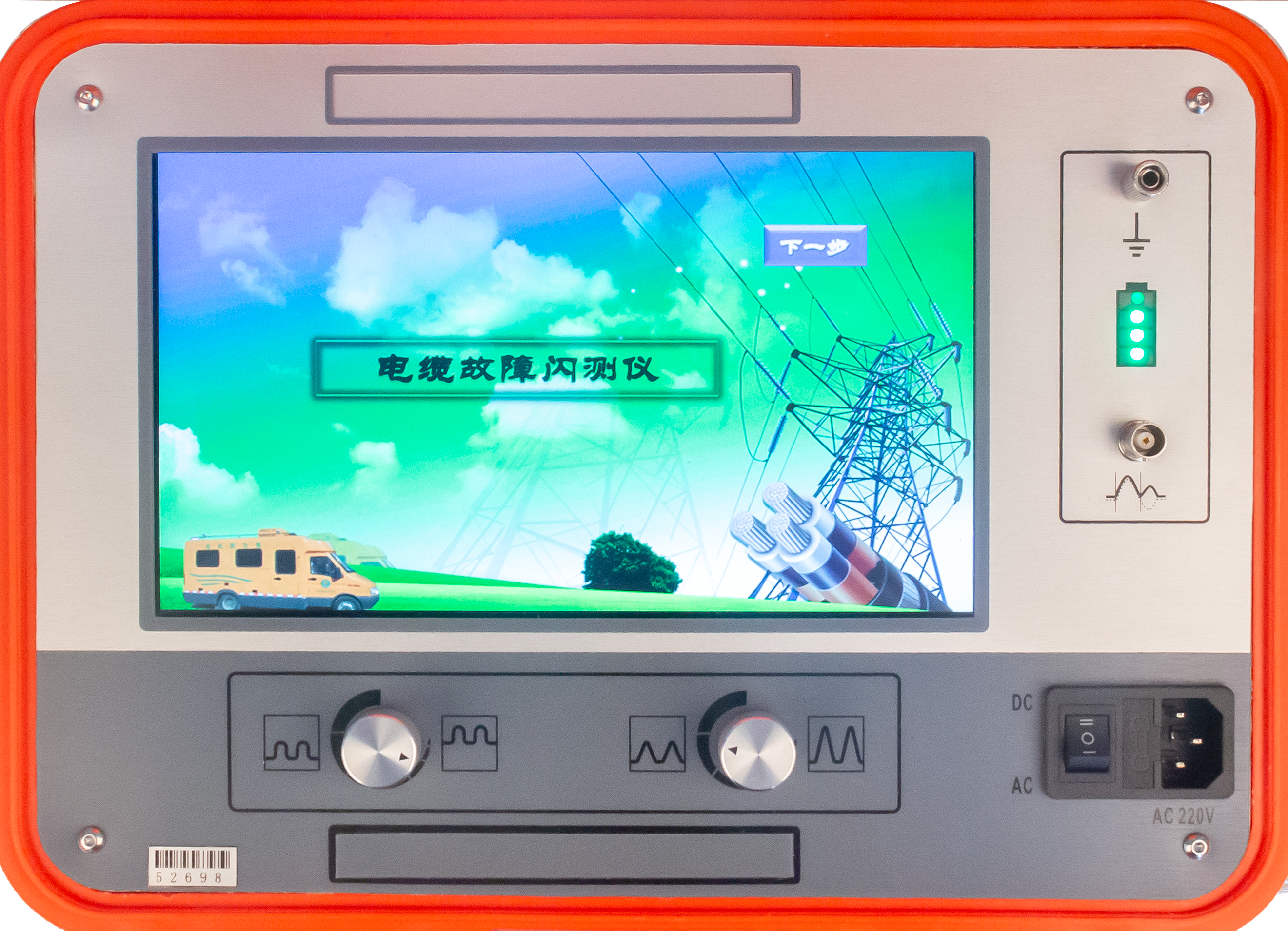

XHGG501D TDR Cable Fault Locator
The 10" LV TDR cable fault locator is a professional-grade diagnostic tool designed for precise detection and location of faults in low voltage cables up to 30km in length.

XHGG501D underground cable fault locator, simple operation software interface, single-chip centralized control, touch operation mode, built-in large-capacity lithium-ion battery, stable and reliable, easy to use.

Test Procedures for Power Cable Fault

The cable fault tester must go through the following steps to find power cable faults:

(1) Understand the faulty cable: withstand voltage level, cable length, insulation medium, insulation resistance, buried path, and the cause of the fault.

(2) Analysis of the nature of the cable fault: use the "low voltage pulse" of the cable fault tester to test the length of all phase wires of the faulty cable and calibrate the radio wave transmission speed of the faulty cable; use the insulation resistance tester to measure the fault insulation resistance value.

(3) Select the appropriate test method: use a cable fault tester to perform a rough test of cable faults.

(4) Precise measurement of cable fault points: including the search for the direction and depth of buried cables and fault points precise positioning.

(5) Error analysis: Carry out error analysis (measurement error, transmission speed misinterpretation error, instrument error) on the cable fault test results.

Technical Parameters


Sampling frequency 100MHz
Pulse width 0.1uS/2uS
Minimum resolution 0.5m


Industrial grade 10" LCD display, working temperature -20℃～+60℃
Single-chip centralized control, touch operation mode, strong anti-interference ability

10

English operation system is available
