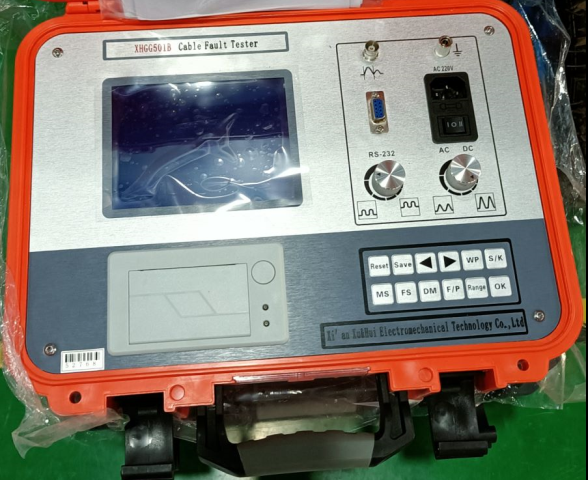

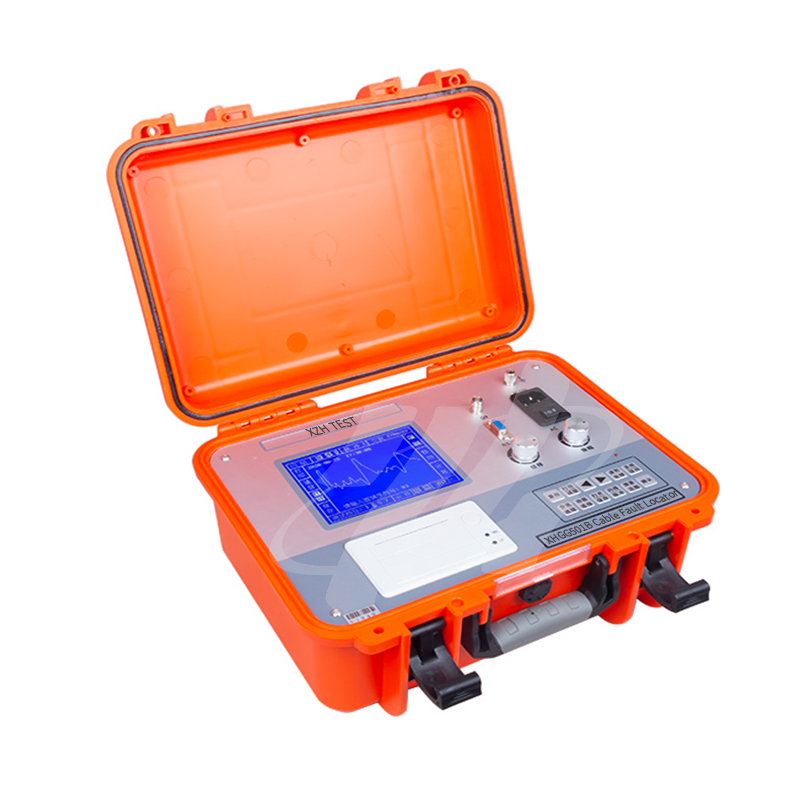

XHGG501B Smart LV TDR Cable Fault Locator with Printer
The Smart LV TDR Cable Fault Locator is an advanced diagnostic tool designed for efficient detection and location of faults in low voltage cables. Integrated with printing capability, this device provides immediate documentation of test results.
This cable fault tester is a specialized instrument for measuring and analyzing power cable fault conditions and distances. Utilizing modern electronic technology for signal filtering, acquisition, data processing, graphical display, and analysis, it can measure cable velocity, length, distance to faults, and resistance.
Key Features
Precision Time Domain Reflectometry (TDR) technology for accurate fault location
Integrated printing system for immediate result documentation
Smart interface with intuitive controls and clear display
Display control 5.7 inch industrial LCD
Sampling frequency

100MHz, minimum resolution 0.5m (100m/us)
Low voltage pulse Width 0.1uS and amplitude 100Vpp
Test method

Low voltage pulse, high voltage flashover method (ARC-single shot/ICE/Decay)

Test distance

 ≤30km

5.7-inch Printer LV TDR Cable Fault Locator for Accurate Underground Cable Detection

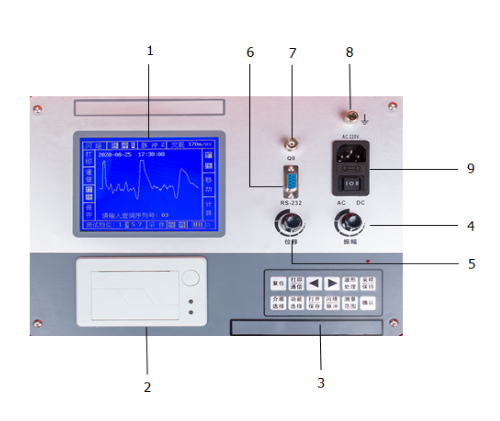

Display: all operations of the instrument are displayed through the display;
Printer: can randomly print the display content and test report;
Keyboard: 12 function keys to complete the basic operation of the instrument;
Amplitude adjustment: adjust the amplitude of the test waveform on the display;
Vertical displacement: adjust the up and down position of the test waveform on the display;
Communication: to achieve the local data output, complete the communication to the PC;
Q9 sampling port: fault test through it output and collect fault waveform;
Instrument safety grounding terminal;
Charging power supply: Press the switch to the "I" position and plug in the 220 AC system for 220V AC power supply.

Switch to "II" to use internal battery power.

Switch in the "II" position, plug in 220V AC, you can charge the battery, charging process, the instrument screen light.

Press the switch button to the "O" bit to shut down;
