Smart LV TDR Cable Fault Locator with Impulse Current Testing
Smart LV TDR Cable Fault Locator with Impulse Current Testing
Specifications
Brand Name :
XZH TEST
Model Number :
XHGG501B
Certification :
CE
Place of Origin :
Xi'an
MOQ :
1set
Payment Terms :
T/T
Supply Ability :
3000unit/year
Delivery Time :
5-8 work days
Packaging Details :
wooden packaging
Description
XHGG501B Smart LV TDR Cable Fault Locator
Professional-grade cable fault detection system featuring Time Domain Reflectometry (TDR) technology and impulse current testing capabilities for precise low-voltage cable diagnostics.

XHGG501B is designed for underground power cable fault per-locating, to provide quick accurate and safe measurement solution. Measure the power cable of different sections, different media of various materials, short circuit, open circuit short line fault and the low and middle resistance fault.


Main Features

Advanced Time Domain Reflectometry (TDR) technology
Specialized for low-voltage cable systems
Precise fault location identification
Impulse current testing capability
Smart diagnostic functionality
Sampling mode

automatic continuous sampling, never miss any discharge waveform
Sampling frequency

100MHz, minimum resolution 0.5m (100m/us)
Measurement accuracy Coarse measurement error: ±10m (absolute value) or 1% (relative value)
Sampling frequency

100MHz, minimum resolution 0.5m (100m/us)


Smart LV TDR Cable Fault Locator with Impulse Current Testing

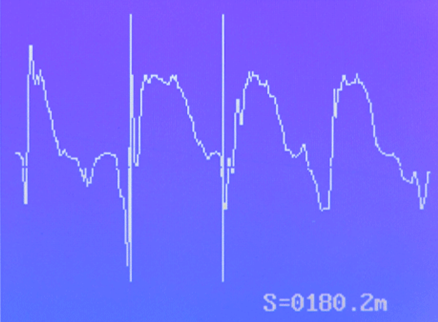

High-voltage flashover method (ARC-single shot) tests the cable fault distance.



Smart LV TDR Cable Fault Locator with Impulse Current Testing

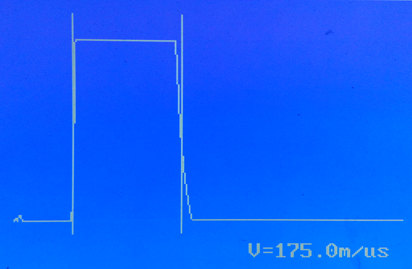

Measuring cable wave speed

Applications: Power distribution, industrial cable maintenance, utility infrastructure, electrical troubleshooting
