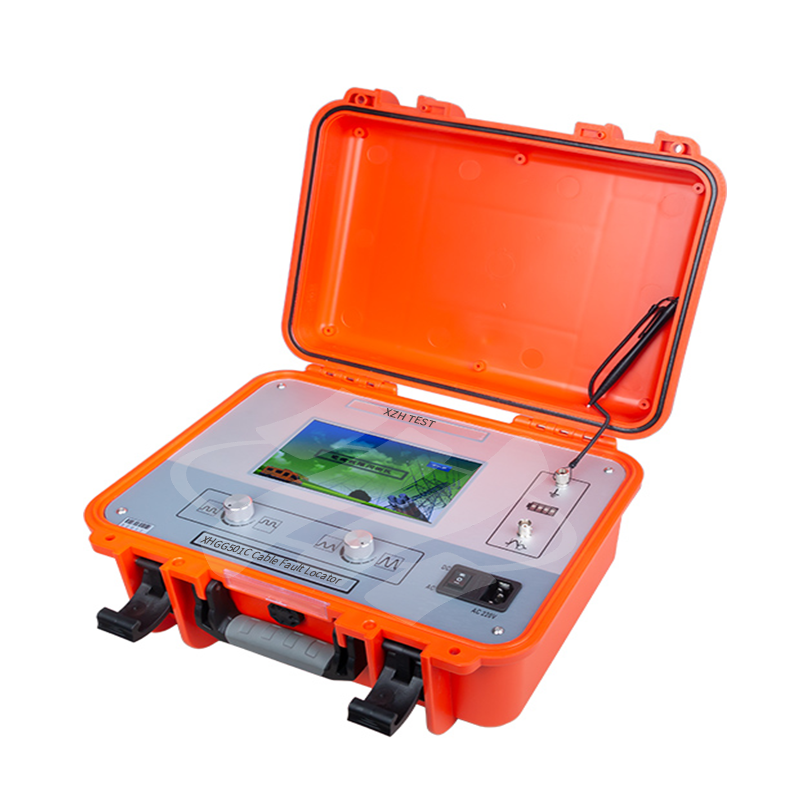

XHGG501C LV TDR Cable Fault Locator
The LV TDR cable fault locator provides accurate detection and location of faults in low voltage cables. Combined with impulse current testing capability, this system offers comprehensive cable fault analysis for efficient maintenance and repair operations.
Key Features
Time Domain Reflectometry (TDR) technology for precise fault location
Impulse current testing capability for comprehensive analysis
Designed for low voltage cable systems
Accurate fault detection and distance measurement
Professional-grade cable maintenance solution
Screen size 7-inch
Power supply method Charging AC110V～240V, 50Hz/60Hz；Powered by built-in 10400mAh lithium battery
Working conditions -20～+65℃, relative humidity ≤90%

LV TDR Cable Fault Locator with Impulse Current Testing for Accurate Fault Detection

Regarding waveforms

Standard waveforms for the entire length and intermediate joints

LV TDR Cable Fault Locator with Impulse Current Testing for Accurate Fault Detection

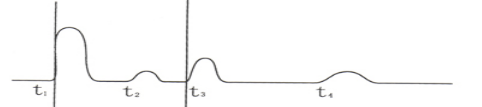

Analysis: At time t1, the pulse waveform generated by the flash detector is positive (or negative); at time t2, the back pulse waveform from the intermediate joint in the cable is shown; at time t3, the full-length (terminal) reflected pulse waveform is positive, representing a reflection of the same polarity (similar to an open circuit fault); at time t4, the full-length (terminal) secondary reflected waveform is shown. Due to pulse attenuation, the secondary reflected pulse waveform at time t4 has a smaller amplitude than the primary reflected pulse waveform at time t3. The total length of the cable and the distance between the intermediate joints are also considered.
