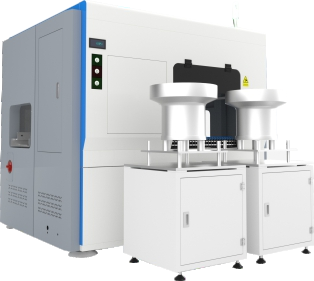

Multi Functional Irregular Insertion Machine XZG-8500APM
Multi Functional Irregular Insertion Machine XZG-8500APM
Multi Functional Irregular Insertion Machine XZG-8500APM
Multi Functional Irregular Insertion Machine XZG-8500APM
Multi Functional Irregular Insertion Machine XZG-8500APM
Multi Functional Irregular Insertion Machine XZG-8500APM
Multi Functional Irregular Insertion Machine XZG-8500APM
Multi Functional Irregular Insertion Machine XZG-8500APM
Multi Functional Irregular Insertion Machine XZG-8500APM
Multi Functional Irregular Insertion Machine XZG-8500APM
Multi Functional Irregular Insertion Machine XZG-8500APM
Multi Functional Irregular Insertion Machine XZG-8500APM
Specifications
Brand Name :
Sciencgo
Model Number :
XZG-8500APM
Place of Origin :
China Dongguan
MOQ :
1
Payment Terms :
L/C,D/A,D/P,T/T
Supply Ability :
Have spot goods available
Delivery Time :
7~14days
Description
XZG-8500APM/Machine features
  • Longmen dual drive, high operational stability;
  • The plug-in has a wide range and is suitable for a wide range of substrates；
  • Rotating 2-head, suitable for server memory conditional socket plugin;

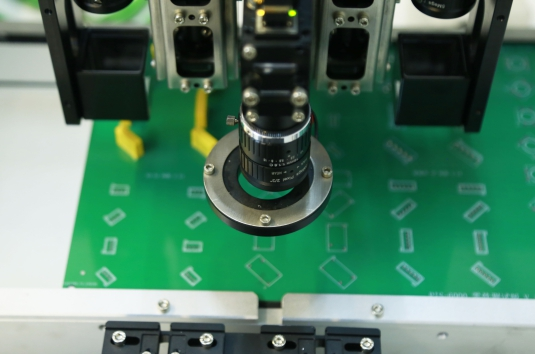

  • Three camera photography;
  • Two sets of feeding materials, with 10 workstations per set;
  • Flexible and independent feeders with strong versatility and easy replacement;
  • It can automatically supply components in four packaging methods: bulk, tape, tube, and pallet packaging;
  • Different corresponding plans can be developed according to different customers to meet their requirements.
Features

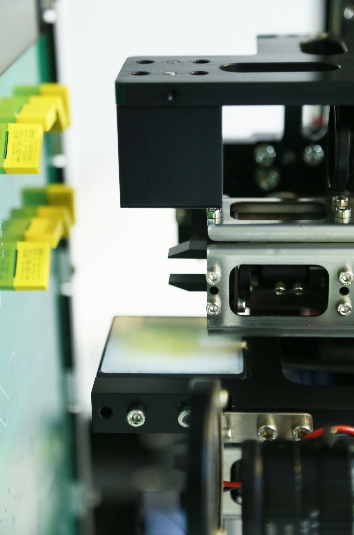

  • Provide portable and quick replacement jaws.
  • Software monitoring of the current changes in the lifting motor, converted into pressure values; Compared with the preset pressure threshold, an alarm is triggered when the overpressure plugin is activated.

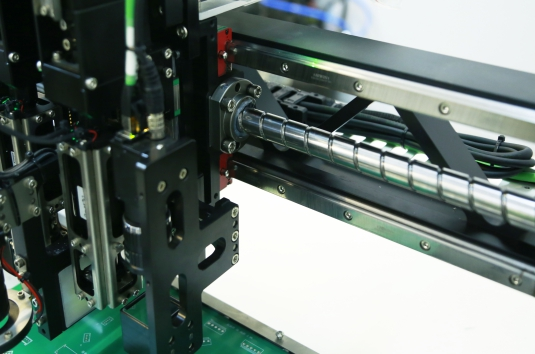

  • Using ultra precision grinding screws to ensure more precise and smooth head movement.
  • Provide diversified and diverse feeder bases
  • Higher speed than devices of the same type
  • Simple stack layout, easy to install and debug
  • Small size, flexible wiring
  • High return on investment
Track amplitude modulation method Automatic adjustment Working votage AC220V / 50-60Hz
Circult board conveying speed In-Line Total power 1.6KW
Maximum conveying speed 20m/min Pressure requirements 0.5-0.7Mpa
Orbit altitude above ground 900±20mm Air consumption 50L/min(excluding feeder)
Plugin duplicate positioning accuracy ±0.02mm. Total weight of equipment 200KG
Feeding method Strip packing, bulk packing, tube packing, pallet packing. Substrate positioning mode Camera positioning
Plugin material retrieval form Pneumatic claw Edge of substrate 5mm
Number of claw groups 2 of them Direction of substrate transport L-R/R-L
Arrangement Vertically arranged in a straight line Applicble specification for substrate 70*70-600*550(mm)
Plugin corner meaning Any angle Applicble thickness of substrate 0.75mm-5mm
Insertion pressure 0-50N Substrate weight Max5kg
Insertion accuracy ±0.05mm Element size 3*50-20*155mm
Plugin speed Theoretical 1sec(excluding substrate transfer) Component Height 3-35(mm)
Plug in driver shaft X/Y/Z/R Component weight Max100g
Number of feeding gruops 10 of them Incoming pin positioning detection Camera positioning detection
