Specifications
Brand Name :
Sciencgo
Model Number :
3000KL
MOQ :
1
Delivery Time :
1~7days
Supply Ability :
Have spot goods available
Place of Origin :
China Dongguan province
Payment Terms :
L/C,D/A,D/P,T/T
Price :
Quotation based on configuration
Theoretical speed :
24000 points/hour
Insertion failure rate :
less than 500 PPM
Weight :
850KG
Insertion direction :
0-360° (increment 1)
Power supply :
220VAC (Single phase) 50/60HZ, 2.0KVA/1.6KW
Air pressure :
0.6~0.8Mpa
Description

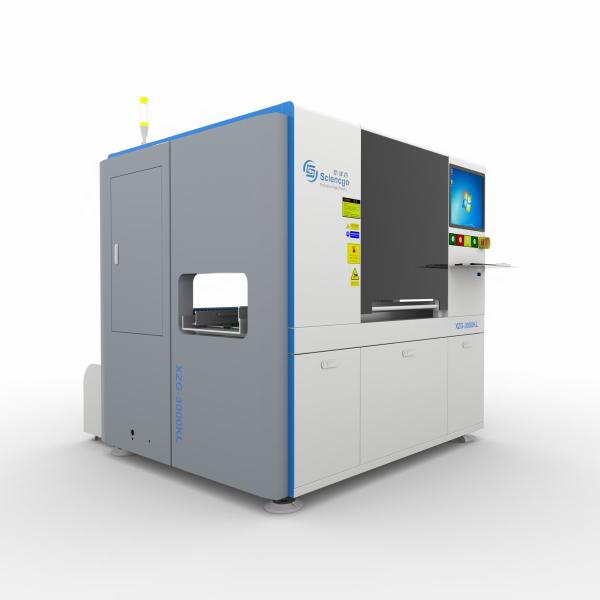

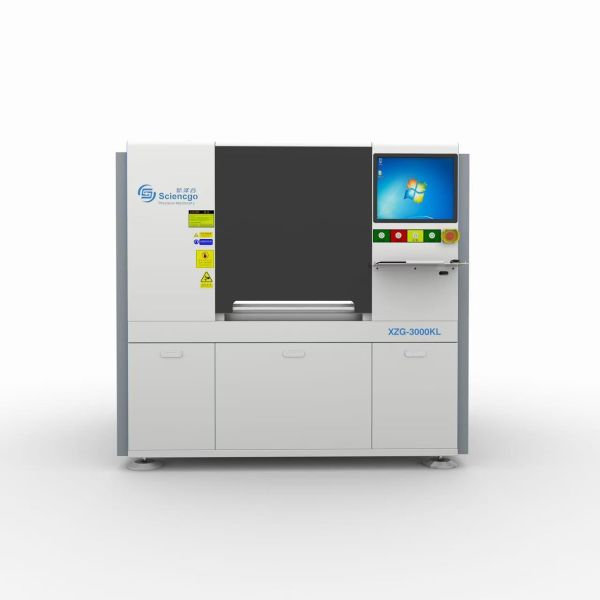

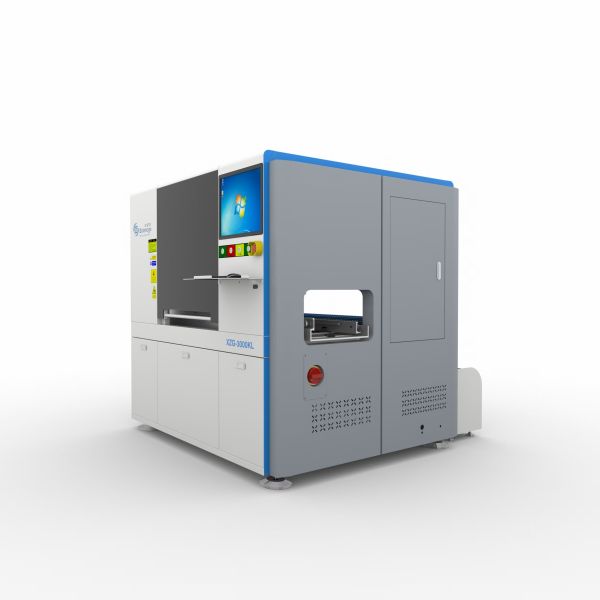

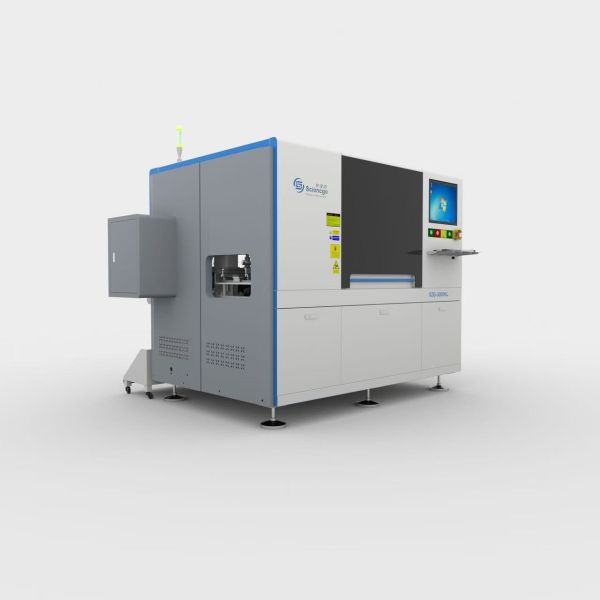

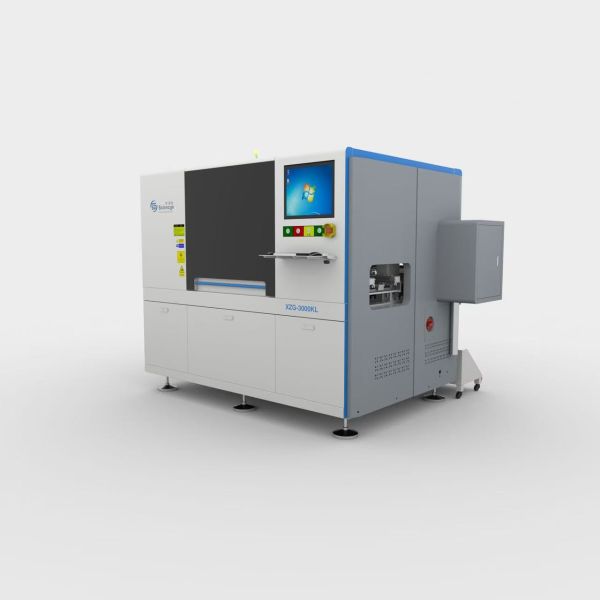

Fully Automatic High Speed Online Vertical Insertion Machine
3000KL is the most advanced and practical fully automatic vertical plug-in machine for upper and lower plates. The equipment features multiple independent servo control systems for practical application. Continuous loading and unloading ensures high and stable plugin performance, achieving high-speed and high-density insertion effects.
Machine Features
  • Exclusive industry-leading patented technology
  • New operating system: Latest self-developed Chinese operating system with exclusive intelligent visual recognition technology for simpler, faster operation
  • New THK Customization: Latest imported THK customized high-speed precision integrated plug-in head structure
  • New overall control design: Latest bus control design replaces traditional sensor control for more precise transmission
  • New feeding function: Exclusive automatic intelligent feeding function with intelligent hole and misinsertion recognition
  • New EMS System: Professional EMS system available for free private customization
  • New Plug-in Design: 360-degree plug-in design with no dead corners and any angle capability
Advanced Transmission System
Cam transmission mechanism replaces traditional rack and pinion transmission structure, achieving high-speed stable operation with simple structure, strong stability, and lower maintenance costs.
Patent number: ZL 2009 20193765.6
Automatic Component Management
  • Automatic complementary component function for allocation head
  • Sensitive detection mechanism activates automatic replenishment when missing components are detected
  • Machine prompts material shortage function when allocation head materials are depleted
Installation & Design Options
  • Module installation location options with embedded integrated design
  • New high-speed Feida system
  • Automatic material replenishment function
  • Significantly saves land use area
Plugin Head Options
Available in 2.5mm (single span), 2.5mm/3.5mm/5.0mm (three spans) and 2.5/5.0/7.5/10.0mm (four span) plug-in head configurations. Small footprint capable of high-density plugins with extended lifespan.
360-Degree Plugin Capability
Servo motor-driven plug-in head provides precise, fast operation with 1-degree increments from 0-360 degrees.
Technical Specifications
Theoretical Speed 24000 points/hour (software system upgrade can speed up)
Insertion Failure Rate less than 500 PPM
Weight 850KG
Insertion Direction Any angle from 0-360° (1-degree increment)
Power Supply 220VAC (Single phase) 50/60HZ, 2.0KVA/1.6KW (energy saving)
Pin Span Double Spacing 2.5/5.0/3.5/7.5/10.0mm (optional)
Air Pressure 0.6~0.8Mpa
Gas Consumption 0.2 cubic meter per minute (dry gas)
Substrate Size Min. 50 x 50mm / Max. 350 x 600mm
Substrate Thickness 0.79~2.36mm
Hole Position Correction Machine vision system, multi-point MARK visual correction
Component Specifications Pin diameter: 0.4mm to 0.6mm
Driving System Imported Japan NIDEC SANKYO High-Speed Servo Motor
Component Types Capacitors, transistors, triodes, LED lights, button switches, resistors, connectors, coils, potentiometers, fuse holder, fuse, etc.
PCB Operation Mode Automatic across board (left to right or right to left, optional)
Lead Cutting Length 1.2~2.6mm Adjustable
Lead Bending Angle 0°~35°
Internet of Things 4G IoT MES system interface
Feeder Standard: 10 multifunctional standard feeders (optional 10/14/20/30)
Dimensions 10 Feeders: 2000mm*1860mm*1627mm (L*W*H)
14 Feeders: 2000mm*2263mm*1648mm (L*W*H)
