Fully Automatic Shrapnel machine XZG-9500APM

Specifications

Brand Name :

Sciencgo

Model Number :

XZG-9500APM

Place of Origin :

China Dongguan

MOQ :

Payment Terms :

L/C,D/A,D/P,T/T

Supply Ability :

Have spot goods available

Delivery Time :

7~21days

Description

XZG-9500APM /Machine features

Longmen dual drive, high operational stability;
The plug-in has a wide range and is suitable for a wide range of substrates;

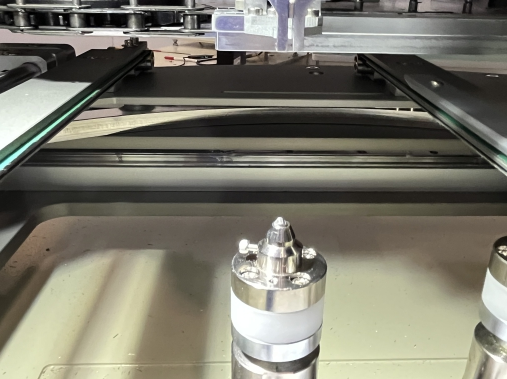

Rotating multi head, more stable and convenient material retrieval
Multi functional visual system;
Can automatically replenish shrapnel;
Different corresponding plans can be developed according to different customers to meet their requirements.

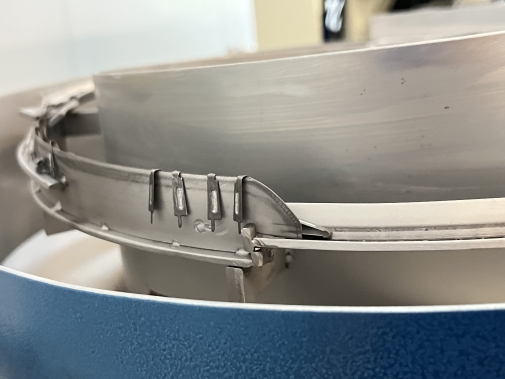

Adopting the vibrating disc feeding method.
The vacuum pneumatic gripper 360 degree rotating plug-in has no limit on the angle of the plug-in, and the unique head design can save material retrieval time by simultaneously retrieving materials.
Adopting a rotating multi head and multi material clamp grip, it has stronger applicability, a brand new design structure, and eliminates jamming and shrapnel.
The base adopts the latest design concept and can be molded and bent in one piece, making material insertion more stable.

Track amplitude modulation method	Automatic adjustment	Working voltage	AC220V / 50-60Hz
Circult board conveying speed	In-Line	Total power	1.6KW
Maximum conveying speed	20m/min	Pressure requirements	0.5-0.7Mpa
Orbit altitude above ground	900±20mm	Air consumption	50L/min(excluding feeder)
Plugin duplicate positioning accuracy	±0.02mm.	Total weight of equipment	200KG
Feeding method	Strip packing, bulk packing, tube packing, pallet packing.	Substrate positioning mode	Camera positioning
Plugin material retrieval form	Pneumatic claw	Edge of substrate	5mm
Number of claw groups	2 of them	Direction of substrate transport	L-R/R-L
Arrangement	Vertically arranged in a straight line	Applicble specification for substrate	7070-600550(mm)
Plugin corner meaning	Any angle	Applicble thickness of substrate	0.75mm-5mm
Insertion pressure	0-50N	Substrate weight	Max5kg
Insertion accuracy	±0.05mm	Element size	350-20155mm
Plugin speed	Theoretical 1sec(excluding substrate transfer)	Component Height	3-35(mm)
Plug in driver shaft	X/Y/Z/R	Component weight	Max100g
Number of feeding gruops	10	Incoming pin positioning detection	Camera positioning detection
