Specifications
Brand Name :
Sciencgo
Model Number :
XZG-4000KM
Place of Origin :
China Dongguan
MOQ :
1
Payment Terms :
L/C,D/A,D/P,T/T
Supply Ability :
Have spot goods available
Delivery Time :
7~14days
Price :
Quotation based on configuration
Description
Product introduction:

4000KM is the sixth generation horizontal joint plug-in machine independently developed and produced by Science. It is a high-speed, high-precision, and high-performance automation equipment that integrates our company's new generation sequential arrangement machine and multi-functional horizontal plug-in machine exquisite technology.

Machine features:
  • Integrating the essence of the sequencer and the horizontal plug-in machine
  • Save space, labor costs, and tape production costs
  • High speed, high precision, high performance
  • Non-stop refueling
  • Compared to second-generation machines, the gas consumption has been reduced by 60-70%
  • Compared to the second-generation machine, the overall speed has increased by 30%
  • Component spacing of 5MM and 10MM
  • Adjust the span synchronization mechanism of the jumper: Reduce jumper waste and save costs
    Patent number: ZL 2011 20367492.X

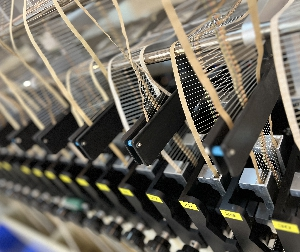

  • Brand new exclusive electric feeder feeding station design, more stable feeding, saving 70% gas consumption compared to traditional models, more energy-efficient, and quieter.
  • Component centering device: precise centering effectIncrease the pass through rate of components
    Patent number: ZL 2009 20263895.2
  • Industry exclusive implementation of (360 degree plug-in at any angle, redefining the horizontal plug-in mode, exclusive patented technology, more comprehensive adaptability to products.
  • Material station detection: automatic alarm for material shortage.
Recommended application industry
  • DVD decoding board
  • Energy conservation
  • Ballast
  • Amplifier sound system
  • Other electronic industries
Technical Specifications
Theoretical Plugin Speed 22000 points/hour (calculated based on 150 points per single board plugin)
Insertion failure rate less than 500 PPM Auxiliary machine dimensions 600mm*1600mm*900mm
Insertion direction any angle from 0°~360° (increment 1),electric workbench, exclusive patended technology Weight 1500KG
Lead Span Double sapacing 5mm~26mm Use power supply/power 220V AC (Single phase) 50/60HZ, 2.0KVA/1.6KW (energy saving)
Substrate size Min. 50 x 50mm / Max. 280 x 580mm Use air pressure 0.6~0.8Mpa
Substrate thickness 0.79~2.36mm Gas comsumption 0.2 cubic meter per minute( dry gas)
Component specifications The pin diameter of electronic components should be between 0.4mm and 0.6mm. Hole position correction method Machine vision system, multi-point MARK visual correction.
Component type Vertical braided packaging materials for diodes, transistors, resistors connectors,coiils, potentiometers, fuse holders, fuse, etc. Driving system Imported Japan NIDEC SANKYO High-Speed Servo Motor
Component lead cutting length 1.2~2.2 mm (adjustable) PCB operation mode Automatic across board (L to R, R to L, optional)
Component lead bending angle 0~35 degrees (adjustable) Internet of Things 4G IoT MES system interface
Dimensions 1700mm x 1300mm x 1600mm Feeder Standard configuration includes 10 multifunctional electric feeders (optional 10~60 stations)
