GYTA Armoured Strand Loose Tube with filling ointment fiber optic cable PE jacket
GYTA Armoured Strand Loose Tube with filling ointment fiber optic cable PE jacket
Specifications
Brand Name :
XYFiber/OEM
Model Number :
GYTA
Certification :
SGS,RoHS
Place of Origin :
Shanghai,China
MOQ :
1PCS
Supply Ability :
1000PCS/Day
Delivery Time :
3-5 days
Packaging Details :
3KM/Reel
Fiber Core :
4-144
Fiber Type :
G.652D, OM2, OM3
Payment Terms :
T/T, Western Union, MoneyGram, L/C
Description

GYTA Armoured Strand Loose Tube with filling ointment fiber optic cable PE jacket

Quick Detail:

  1. Amoured: steel tape
  2. Fiber core: 2~144 cores
  3. Jacket: PE material, black color
  4. Mode: Single mode, Multimode
  5. Bare fiber inside
  6. Gel Filled


Description:

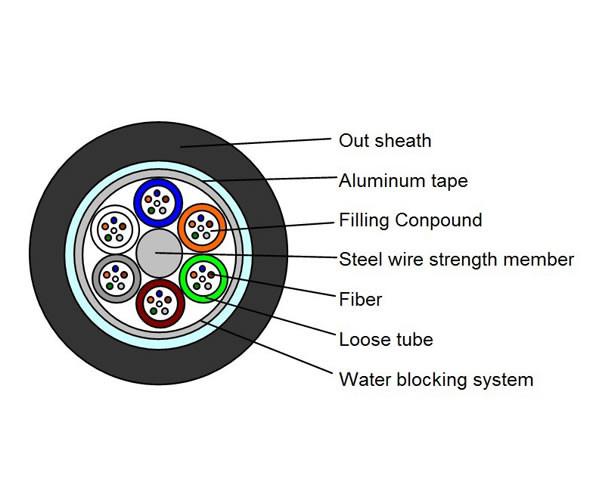

GYTA Aluminum Polyethylene Laminate (APL) is applied around the cable core, which isfilled with the filling compound to protect it from water ingress.

Features:

  1. Low dispersion and attenuation
  2. The armoring of corrugated steel tape makes cable have nice moisture resistance and crush resistance performance
  3. Small cable diameter, light cable weight, easily to install
  4. Proper design, precise control for fiber excess length and distinct stranding process render the cable excellent mechanical and environmental characteristics


Application:

  1. Junction communication system
  2. Local area network systems
  3. Usable in Duct or Aerial
  4. Long-haul communication system


Technical Parameters:

Technical Parameters:

Cable CountOut sheath
Diameter		WeightMinimum allowable Tensile Strength
(N)		minimum allowable Crush Load
(N/100mm)		Minimum Bending Radius
(MM)		Storage
temperature
(MM)(KG)short termlong termshort termlong termshort termlong term(℃)
2410.590.001500600100030020D10D-40+60
3610.590.001500600100030020D10D-40+60
4210.590.001500600100030020D10D-40+60
4810.590.001500600100030020D10D-40+60
6010.590.001500600100030020D10D-40+60
7213.5160.001500600100030020D10D-40+60
9613.5160.01500600100030020D10D-40+60
14415.5180.01500600100030020D10D-40+60

Optical Characteristics:
Fiber SortMultimodeG.651A1a:50/125Graded-index fiber
A1b:62.5/125
SinglemodeG.652(A,B,C)B1.1:Conventional fiber
G.652DB2: Zero dispersion shifted
G.655B1.2 :Cut-off wavelength shifted
G.657(A1,A2 ,B3)

B4: Main technical data for positive
dispersion shifted single-mode fiber





Shipping:

  1. Door to Door: by express (such as DHL, UPS, TNT, FedEx etc.)
  2. Airport to Airport: by air
  3. Seaport to Seaport: by sea (our location Shenzhen is a seaport.)
