13.3 Inch Smart Picture Frame Low Power Digital Picture Frames For Indoor Advertising
13.3 Inch Smart Picture Frame Low Power Digital Picture Frames For Indoor Advertising
13.3 Inch Smart Picture Frame Low Power Digital Picture Frames For Indoor Advertising
13.3 Inch Smart Picture Frame Low Power Digital Picture Frames For Indoor Advertising
13.3 Inch Smart Picture Frame Low Power Digital Picture Frames For Indoor Advertising
13.3 Inch Smart Picture Frame Low Power Digital Picture Frames For Indoor Advertising
13.3 Inch Smart Picture Frame Low Power Digital Picture Frames For Indoor Advertising
13.3 Inch Smart Picture Frame Low Power Digital Picture Frames For Indoor Advertising
13.3 Inch Smart Picture Frame Low Power Digital Picture Frames For Indoor Advertising
13.3 Inch Smart Picture Frame Low Power Digital Picture Frames For Indoor Advertising
13.3 Inch Smart Picture Frame Low Power Digital Picture Frames For Indoor Advertising
13.3 Inch Smart Picture Frame Low Power Digital Picture Frames For Indoor Advertising
Specifications
Outline :
118.5×84.7×5.2 mm
Signal Interface :
LVDS
Lumens Degrees :
1000cd/m²
Interface :
RGB, SPI, MIPI, LVDS, or Parallel
Display Mode :
Normally White, Transmissive
View Direction :
free/all
Viewing Area :
116.2mm×87.1mm
Controller Ic :
SSD1316
Storage Temperature :
-30℃~80℃
Lcm Dimension :
34.60(H) X 47.80(V) X 1.90(T)
Brand Name :
XXT
MOQ :
100
Price :
358-458USD/Pcs
Delivery Time :
3-5 Weeks
Response Time :
6ms
Display Color :
Monochrome Black and White
Operating_Temperature :
-20°C to 70°C
Model Number :
PH133_E6_V1
Place of Origin :
Guangdong, China
Payment Terms :
T/T
Supply Ability :
10000Pcs/Month
Packaging Details :
Box
Color Gamut :
72 % of NTSC(Typ.)
Drive System :
a-Si TFT active matrix
Name :
Smart Picture Frame
Description
XXT 13.3 Inch Smart Digital Photo Frame with E Ink Spectra 6 Full Color Display and Low Power Consumption for Indoor Advertising
Detail Information
Place of Origin
china shenzhen
Brand Name
XXT
Certification
CE ROHS
Model Number
PH133_E6_V1
Highlight:

E Ink Spectra 6 Full Color Smart Digital Photo Frame

,

13.3 Inch Display Smart Advertising Board

,

Low Power Consumption E Ink Display

Product Description
YZY 13.3" Smart WiFi Digital Photo Frame
Indoor Smart Advertising Board with E Ink Spectra 6 (E6) Full Color E-Paper E-Ink Display
Product Features
  • Advanced E Ink Spectra 6 color technology displaying six rich colors with exceptional clarity
  • Extremely low power consumption with minimal electricity usage during screen refresh
  • Energy-saving circuit powered by large-capacity 5-volt dry battery for up to one year of worry-free operation
  • Elegant solid wood frame design with horizontal/vertical support and hook for flexible placement options
  • Open-source platform enabling full customization of functions and features
13.3 Inch Smart Picture Frame Low Power Digital Picture Frames For Indoor Advertising
PH133_E6_V1 13.3 Inch E-Ink Display Specifications
Display Size (diagonal) 13.3 Inch
Display Type Eink Spectra 6
Color Support Red, Yellow, Blue, White, Green, Black
Display Viewing Area 202.8(H) * 270.4(V)
Resolution 1600*1200
Charging Interface Type-C with USB communication support
Function Keys Power, Reset, Registration
Wireless Connectivity WiFi b/g/n, Bluetooth 5.0
Status Indicator RGB status indicator light
Shell Material Solid wood (Pine wood)
Power Adapter 5V/1.5A
Built-in Battery 3.8V/5000mAh
Power Consumption (graph refresh) ≤ 3W
Dormant Power Approximately 400μA
Update Time ≤ 15 seconds
Update Method Mobile phone APP
Product Dimensions 349.5*282.5*20mm
Net Weight Approximately 0.5kg
Gross Weight Approximately 1kg
Storage Temperature -25°C to 60°C
Working Temperature 0°C to 50°C
Humidity 30% to 90%
13.3 Inch Smart Picture Frame Low Power Digital Picture Frames For Indoor Advertising
Device Registration Process
Press and hold the Registration key without releasing it. The green light will remain on continuously. Then press the Reset key once. Wait for the green light to flash briefly, and then release the key. The green light will slow down its flashing, and the device will enter the configuration registration mode.
13.3 Inch Smart Picture Frame Low Power Digital Picture Frames For Indoor Advertising

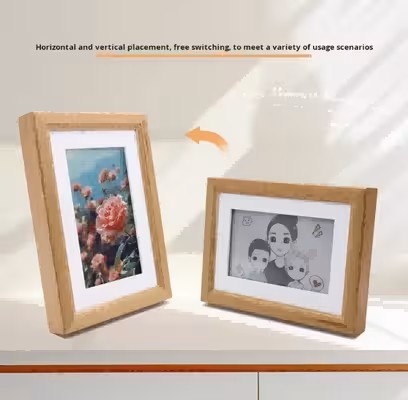

Flexible Placement Options
Multifunctional placement design suitable for both horizontal and vertical use, with wall mounting and tabletop options for various usage scenarios.
13.3 Inch Smart Picture Frame Low Power Digital Picture Frames For Indoor Advertising
