Heat Shrink Fiber Optic Sleeve Protector 1.57 Inch 1.5mm
Heat Shrink Fiber Optic Sleeve Protector 1.57 Inch 1.5mm
Specifications
Brand Name :
XXR
Model Number :
OFSS-40T
Certification :
SGS
Place of Origin :
China
MOQ :
50,000 pcs
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
200K pcs/day
Delivery Time :
5-7 days
Packaging Details :
100 pcs
Name :
fiber hot fusion sleeve
Brand :
XXR
Spec. :
1.5*40*304
Use :
FTTx & FTTH
Material :
PE
Length :
40MM
Color :
clear
OD after shrink :
3.0mm
Used for :
fiber splice closure
Packing :
100 pcs
Description

Heat Shrinkable Fiber Optic Fusion Splicing Protection Sleeve

1.57 Inch Heat Shrink Splice Protector , 1.5mm Sleeve Protector Fiber Optic

For Fiber Optic Patch Panels/ODF/Fiber Distribution Box

Cross Connect Cabinet/Splice Tray/Splice Closures

/40mm long / PE Tube/304 Stainless Steel /OD 3.0mm

Steel Rod Dia.1.5mm

Description:

  • Optical fiber splicing protective sleeve, also known as optical fiber heat shrink tube. It is designed to enhance protection or support the positioning of fiber splicing.
  • As FTTH and FTTx projects, optical fiber splicing protective sleeve is widely used in the field of optical communication.
  • As the world's leading manufacturer of optical fiber splice protective sleeves, XXR is committed to manufacturing optical fiber splice protective sleeves such as optical fiber junction boxes/ODFs, junction boxes, optical fiber splice boxes, optical fiber distribution boxes, and cross connection cabinets.
  • This product is composed of cross-linked polyolefin heat shrinkable tube, hot melt tube and stainless steel needle. It is specially designed to protect the optical fiber enclosure.
  • It is the most reliable method to protect the connection point and improve the mechanical strength.
  • Easy to operate, reducing the risk of fiber damage during installation.
  • Transparant tube, it is easy to see the closed state of optical fiber.
  • The sealing structure makes the sealing have good temperature resistance and moisture resistance.

Production capability: 180,000 pcs/day Payment: T/T, Western Union, others
Delivery: By Air via DHL, FedEx, UPS, TNT, EMS etc or By Sea Delivery time: 5-7 days

Specifications:
Part No. Spec. (mm)

Steel rod

dia.(mm)

Outer tube

L.(mm)

OD after shrinking

(mm)

Inner tube

L.(mm)

ID

(mm)
OFSS-40T 1.5 * 40 1.5 40 3.0 40 ≥1.2
OFSS-45T 1.5 * 45 1.5 45 3.0 45 ≥1.2
OFSS-60T 1.5 * 60 1.5 60 3.0 60 ≥1.2
OFSS-40T 1.2 * 40 1.2 40 2.7 40 ≥1.2
OFSS-45T 1.2 * 45 1.2 45 2.7 45 ≥1.2
OFSS-60T 1.2 * 60 1.2 60 2.7 60 ≥1.2
OFSS-40T 1.0 * 40 1.0 40 2.5 40 ≥1.2
OFSS-45T 1.0 * 45 1.0 45 2.5 45 ≥1.2
OFSS-60T 1.0 * 60 1.0 60 2.5 60 ≥1.2

Characteristics:

. Executive standard: UL 224, CAN/CSA C22.2 N0198.1-99
. Operating temperature: -55 ℃ / +105 ℃
. Minimum shrink temperature: ≥70 ℃
. Full recovery temperature: ≥105 ℃
. Environmental standards: RoHS

Technical Data:

Property Criterion Test Method Value
Longitudinal change -5%~5% ASTM D2671 PASS
Tensile strength ≥10.4MPa ASTM D2671 PASS
Elongation at break ≥200% ASTM D2671 PASS
Volume resistivity ≥1014 Ω·cm IEC 60093 PASS

Composition:

Heat Shrink Fiber Optic Sleeve Protector 1.57 Inch 1.5mm

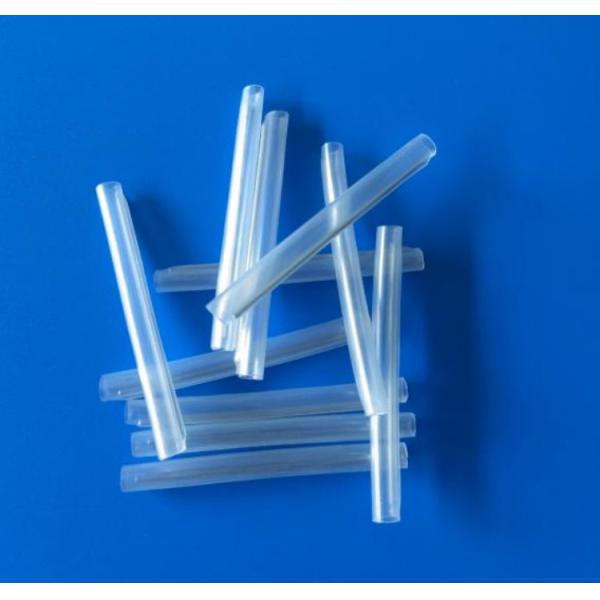

Physical Pic.:

Heat Shrink Fiber Optic Sleeve Protector 1.57 Inch 1.5mm

Heat Shrink Fiber Optic Sleeve Protector 1.57 Inch 1.5mm

Application:

Heat Shrink Fiber Optic Sleeve Protector 1.57 Inch 1.5mm
Heat Shrink Fiber Optic Sleeve Protector 1.57 Inch 1.5mm
Heat Shrink Fiber Optic Sleeve Protector 1.57 Inch 1.5mm
Heat Shrink Fiber Optic Sleeve Protector 1.57 Inch 1.5mm
Heat Shrink Fiber Optic Sleeve Protector 1.57 Inch 1.5mm
Heat Shrink Fiber Optic Sleeve Protector 1.57 Inch 1.5mm
