Specifications
Brand Name :
XXR
Model Number :
BFPT
Certification :
SGS
Place of Origin :
China
MOQ :
1 roll
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1000000 Meters per Week
Delivery Time :
5-7 days
Packaging Details :
100 / 200 meters/ roll
Name :

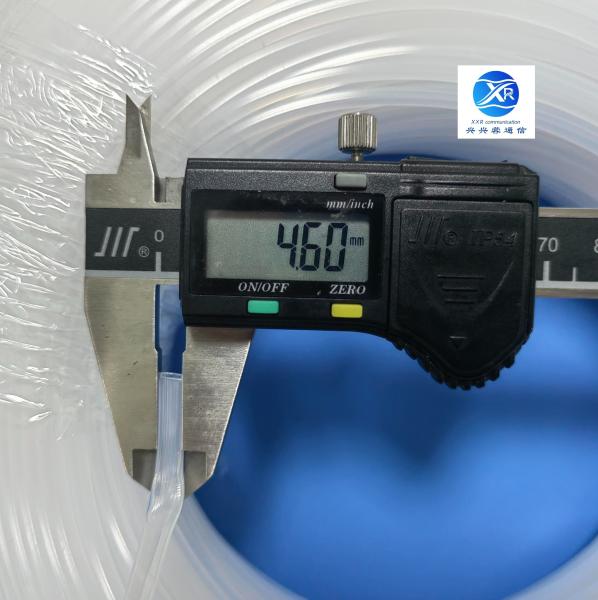

Ф5mm Round & Ribbon Shape Bare Fiber Protection Tube
Spec. :
3*5 MM
Shape :
Round/Rectangular/Oval
Operating temperature :
-55 ℃ ~ +100 ℃
Min.Shrink temperature :
120 ℃
Atmospheric pressure :
70 ~ 106 Kpa
Suitable for :
Fiber splice closure
Color :
Clear
Description

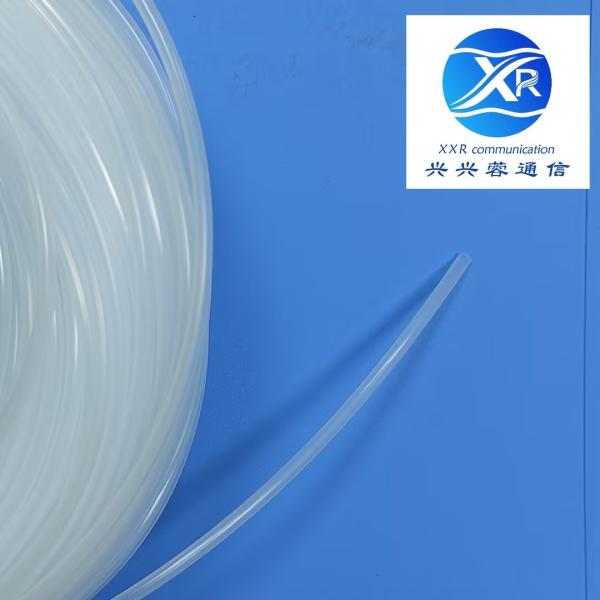

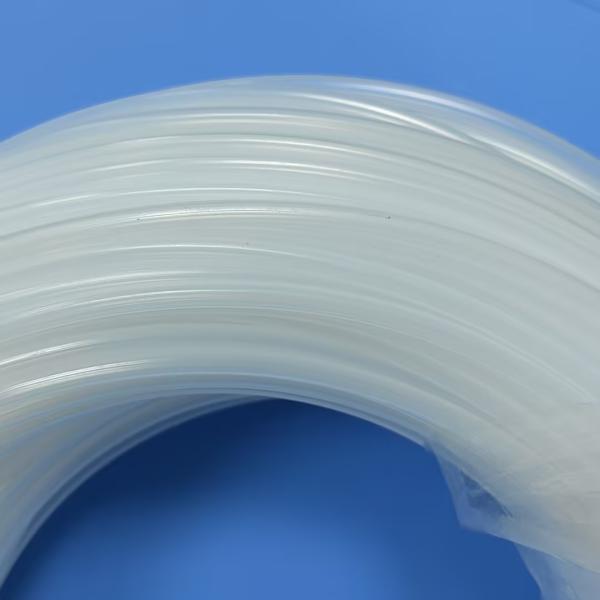

XXR Bare Fiber Protection Tube
Bare fiber protection tube, designed for the protection of fiber that
be stripped of housing,mainly used for ODF, Optical Distribution Box,
Fiber Splice Closure, Optical cross-connecting cabinet.
Shape: . Round/Rectangular/Oval
Property:
Operating temperature: -55 ℃ ~ +100 ℃
Min.Shrink temperature: 120 ℃
Atmospheric pressure: 70 ~ 106 Kpa
Material: Cross-linked polyolefin
Feature: clear color, not easy to break, with excellent performance.
Technical data:
Properties Test method Value
Tensile strength (MPa) ASTM D 2671 ≥10.4
Elongation at break (%) ASTM D 2671 ≥200
Withstand voltage (300v) UL 224 1500V,1MIN
Dielectric strength (KV/MM) ASTM D 149 ≥15
Volume resistivity (Ω.cm) IEC 60093 ≥1014
Length change ratio (%) ASTM D 2671 ±5%

Round/Rectangular/Oval Shape
Ribbon Fiber Protection Tube , SGS Fiber Optic Protection Tubing
Ribbon Fiber Protection Tube , SGS Fiber Optic Protection Tubing
Ribbon Fiber Protection Tube , SGS Fiber Optic Protection Tubing
