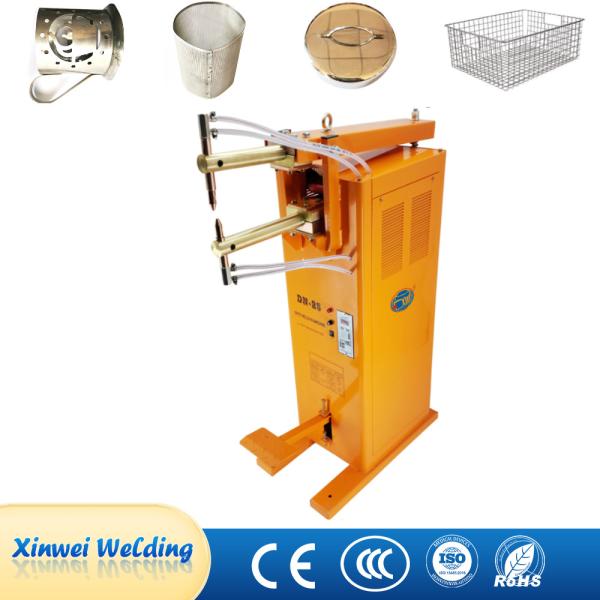

Resistance Welders Point Spot Welders Foot Spot Welding Machine
Resistance Welders Point Spot Welders Foot Spot Welding Machine
Resistance Welders Point Spot Welders Foot Spot Welding Machine
Resistance Welders Point Spot Welders Foot Spot Welding Machine
Specifications
Brand Name :
XWH
Model Number :
DN
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
$500.00 - $700.00
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
50 sets/month
Delivery Time :
15 Working days
Packaging Details :
Wooden Case
Product name :
Foot Operated Spot Welding Machine
Machine type :
Resiatance Welding Machine
Application :
Metal Spot Welding
Welding material :
Alloy Metal Aluminum Stainless Steel
Keyword :
Manual Spot Welding Machine
After Warranty Service :
Video technical support, Online support and Spare parts
After-sales Service Provided :
Free spare parts, Field installation, commissioning and training
Description
Resistance Welders Soldadora De Punto Point Spot Welders Foot Spot Welding Machine
Product Introduction:

The principle of a pedal type spot welding machine is to use the characteristics of double-sided double point overcurrent to compress the welded piece between two electrodes, causing two layers of metal to form a certain contact resistance under the pressure of the two electrodes. When the welding current flows from one electrode to the other electrode, it forms an instantaneous hot melt connection between the two contact resistance points, and the welding current instantly forms a circuit from the other electrode along the two workpieces to this electrode, forming a metal structure.

Technical Parameters:
Models/Item
 DN-35 DN-25 DN-16 DN-10
Rated Power at 50% 35KVA 25KVA 16KVA 10KVA
Rated Primary Power 380V 380V 380V 380V
Rated Primary Current 92A 66A 42.1A 26.3A
Rated Duty Cycle 10% 10% 10% 10%
Secondary Unload Voltage 2.6～4.2V 2.3～3.55V 1.98～3.01V 1.65～2.4V
Adjustment Rated 4 4 4 4
Welding Time Adjustment 0～9.99s
0～9.99s
 0～9.99s 0～9.99s
Arms Length 280mm 280mm 280mm 260mm
Max. Welding Capacity 3+3mm 2.5+2.5mm 2+2mm 1.5+1.5mm
Cooling Ways
Main Transformer: Air air cooling Electrode: Water cooling

Advantages:

1. Using lever type pedals: simple operation, agile response.
2. Insulation design: Insulation design is used between the welding circuit and the body to avoid power consumption while ensuring safety.
3. Fully digital control system with control circuit, welding, stability, and no spark splashing.
4. The welding arm moves vertically and can be used for single spot welding and row welding. The lower electrode arm can be adjusted in the up, down, left, right, front, and back directions, which can be used for complex welding processes.
5. Widely used for welding of low carbon steel, wire stainless steel plate etc.

Detail Images:

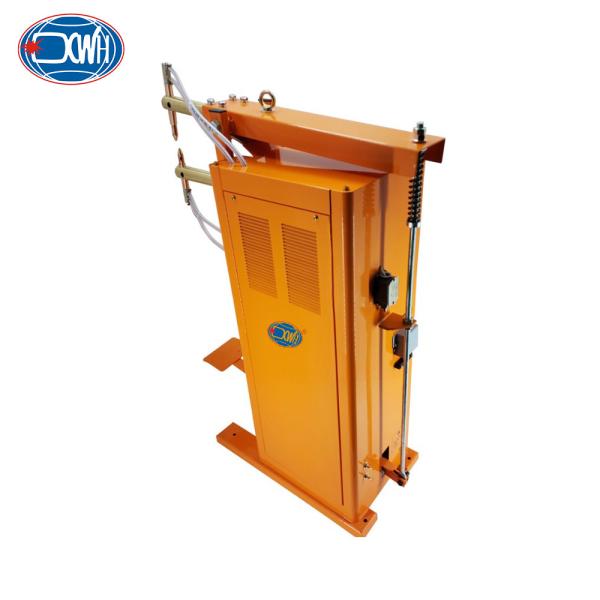

Resistance Welders Point Spot Welders Foot Spot Welding Machine
Resistance Welders Point Spot Welders Foot Spot Welding Machine

Scene Images:

Resistance Welders Point Spot Welders Foot Spot Welding Machine

Please note: the pedal spot welder can be custom-made according to your requirements.

Frequently Asked Questions
1. When can you arrange shippment?
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.

2.Do you inspect the finished products?
Yes, each step of production products will be came out inspection by QC department before shipping.

3.Are you factory?
Yes, we are factory, all machine is made by ourself and we can provide customize service according to your requirement.

4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.
5. How to contact you?
You can send a mail for us and call us.

6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.

7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.


8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.
