360 Rotatable Pneumatic Flexible Arm Construction & Hardware Suspension Spot Welder

Specifications

Brand Name :

XWH

Model Number :

DN2-31X, DN2-31C, DN2-40X, DN2-40C, DN2-63X, DN2-63C

Certification :

CE, RoHs

Place of Origin :

China

MOQ :

Price :

USD3500-USD4500

Payment Terms :

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability :

50 sets/month

Delivery Time :

30 working days

Packaging Details :

Wooden Case

Product name :

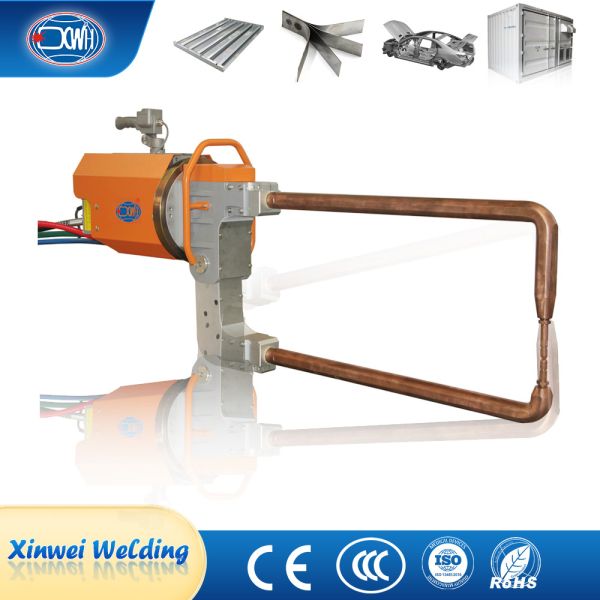

Automotive Use CE Portable Spot Welding Machine Integrated Gun

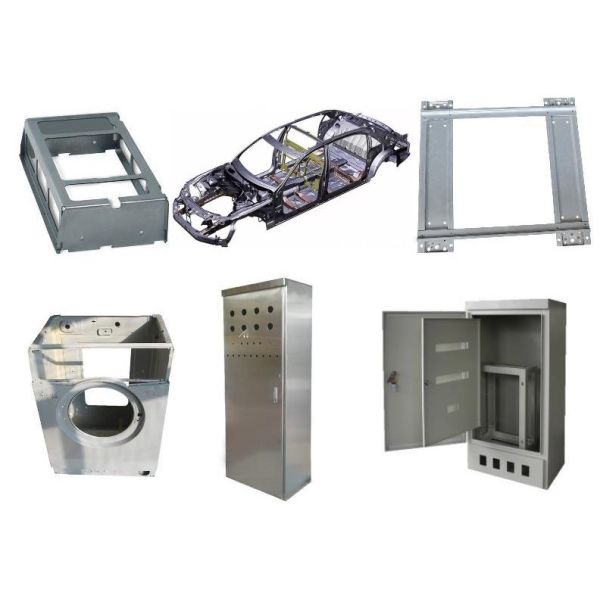

Application :

Metal Plate Spot Welding

Function :

Sheet Metal Spot Welding

Machine type :

Mobile Spot Welding Machine

Keyword :

Resistance Spot Welding Equipment

Welding Material :

Alloy Metal Aluminum Stainless Steel

Feature :

Stainless Steel Spot Welding Machine

Warranty :

12 months Guarantee

After Warranty Service :

Video technical support, Online support and Spare parts

After-sales Service Provided :

Free spare parts, Field installation, commissioning and training

Description

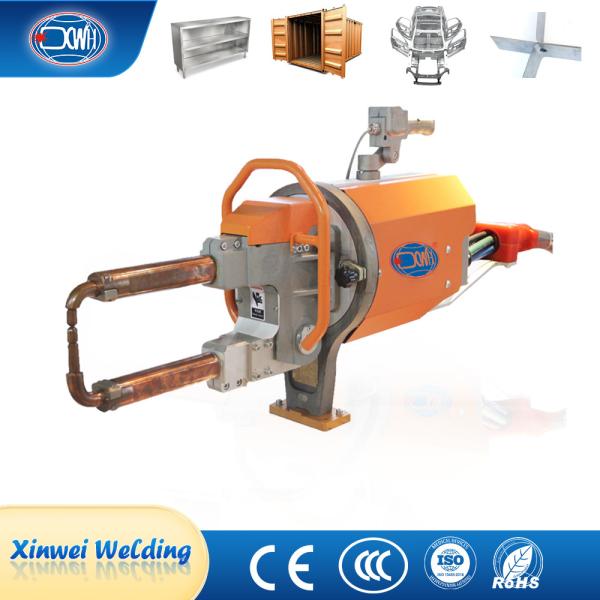

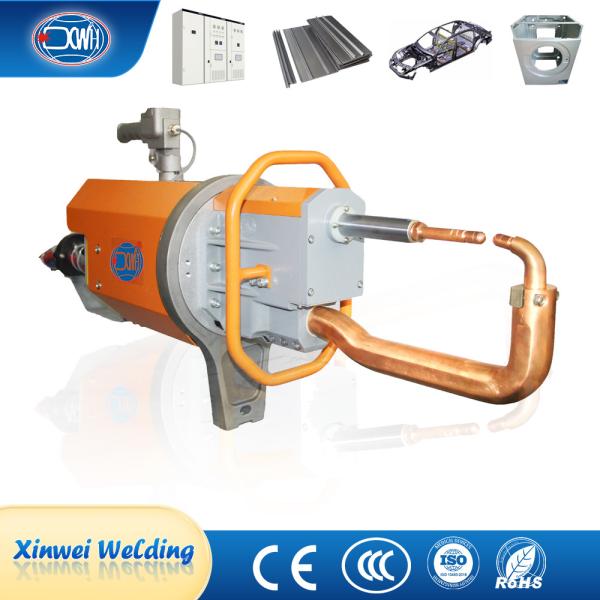

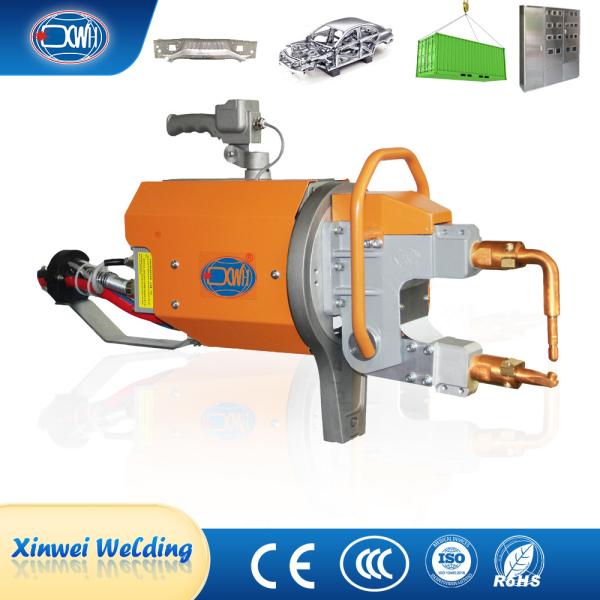

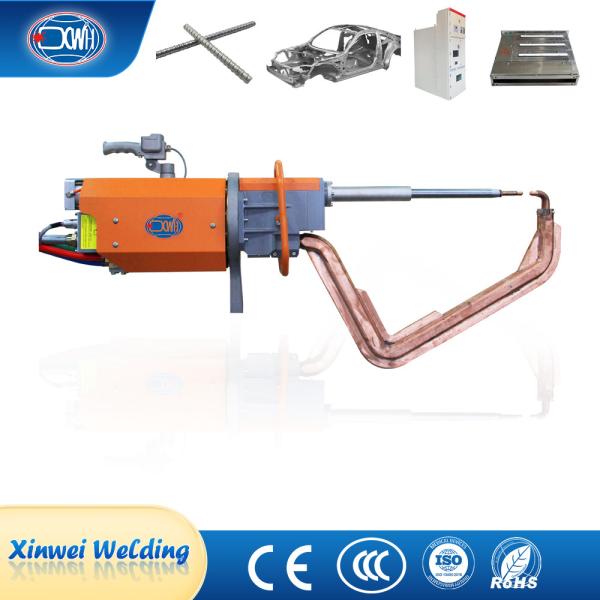

360 Rotatable Pneumatic Flexible Arm Construction & Hardware Suspension Spot Welder

Product Introduction:

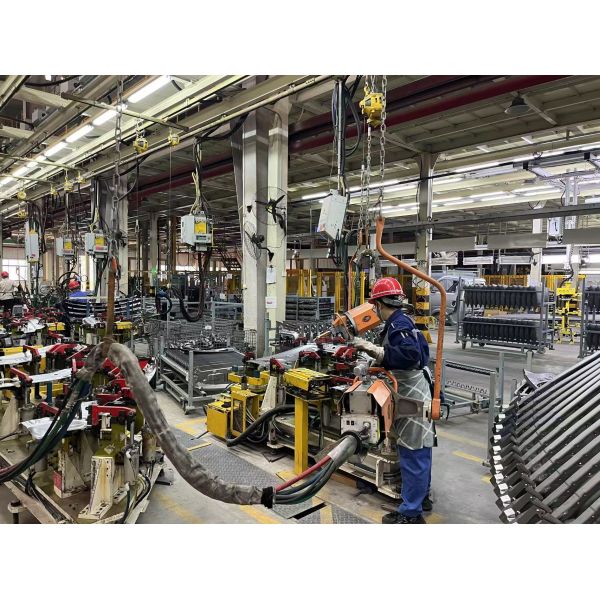

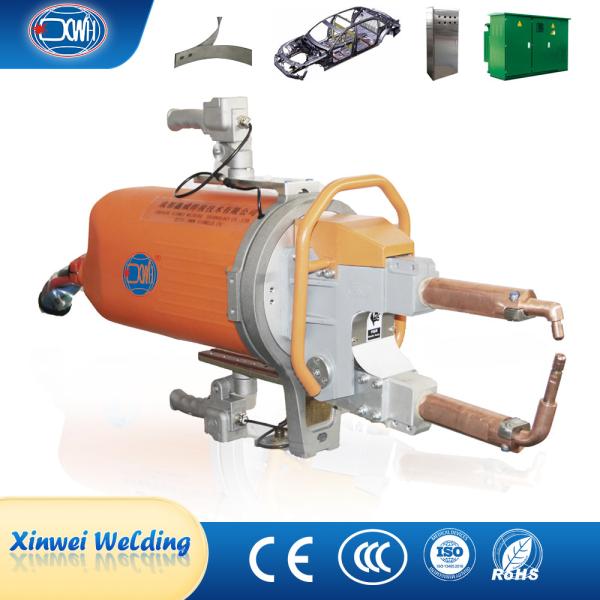

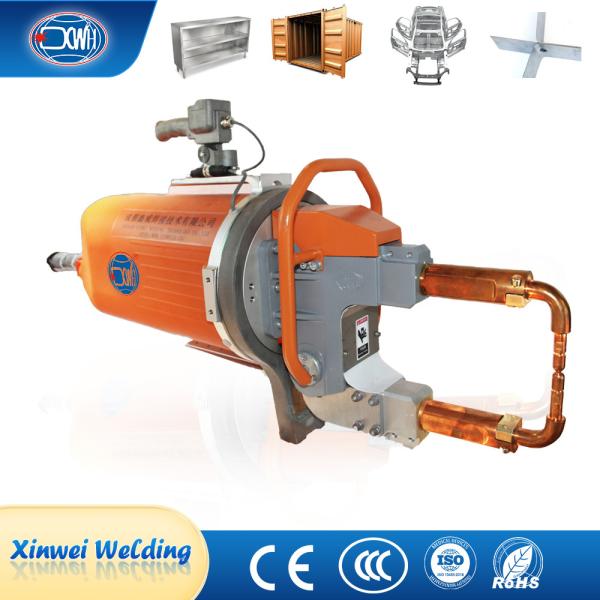

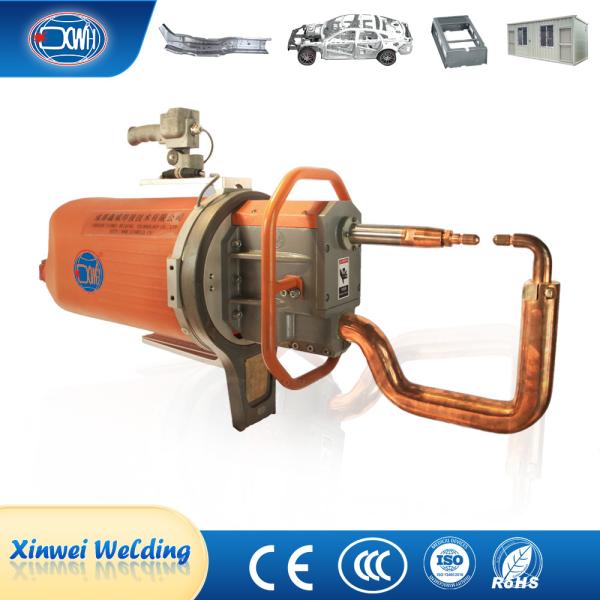

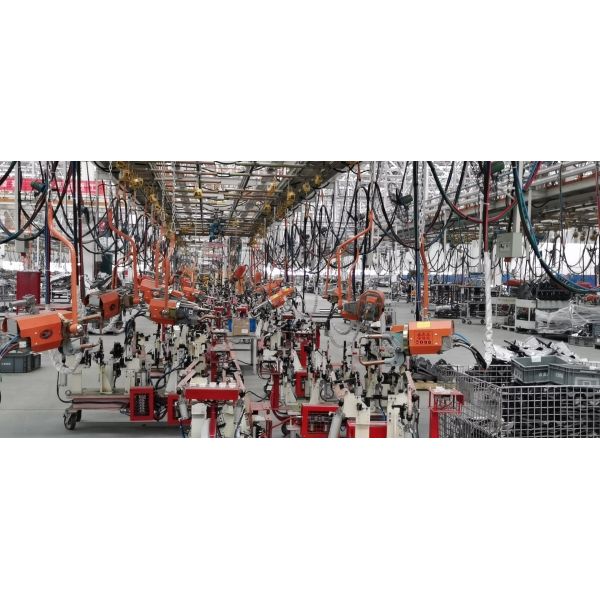

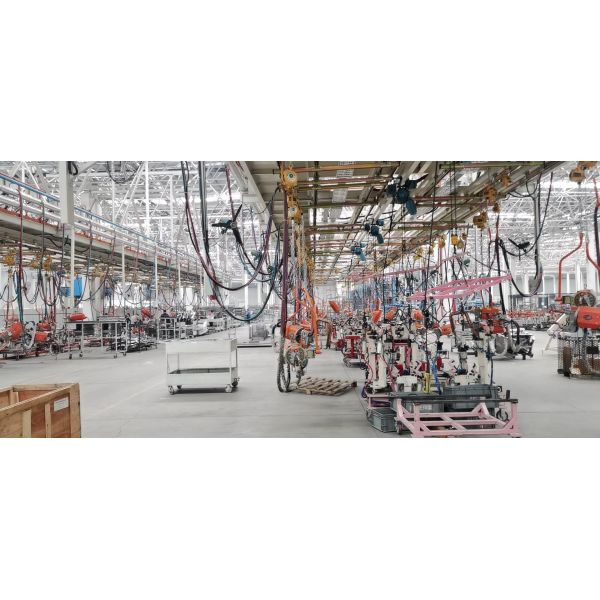

The integrated spot welding machine features "floating operation" and "full-dimensional mobility" as its core highlights. Coupled with a spring balancer, the operating force on the welding torch is minimized; paired with a lightweight slide rail, it achieves coverage over a large working area. The core welding machine part adopts an integrated design, with a built-in high-reliability transformer, a fast-response pneumatic system, and an efficient water cooling system. The 360° adjustable limit rotary disk allows for one-step adjustment of the welding torch posture. Whether from the perspective of reducing the burden on workers or improving welding efficiency and quality, this is a cost-effective upgrade product.

Features:

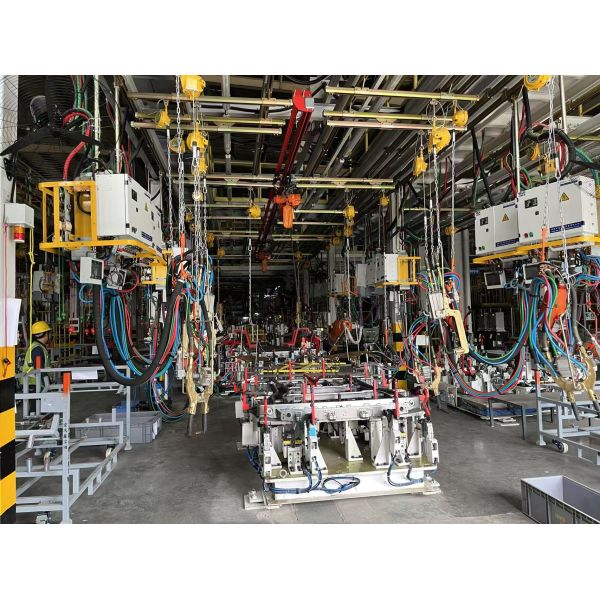

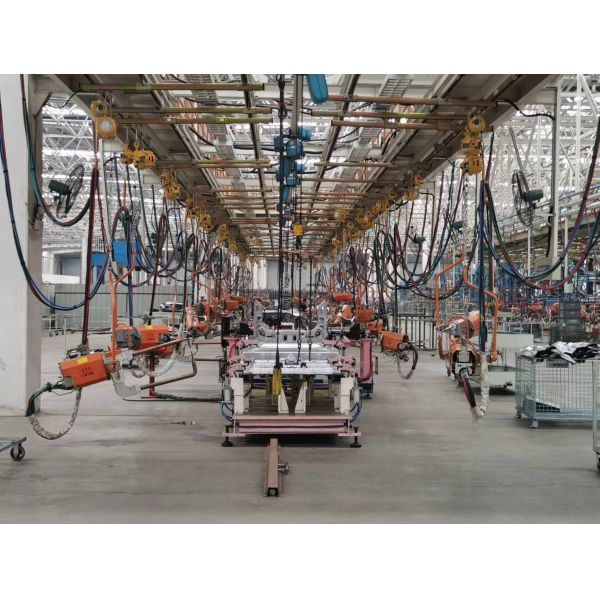

1. Full spatial coverage: With the cooperation of slide rails and pulleys, free movement along the X, Y, and Z axes is achieved, eliminating any welding dead zones.

2. Fully adjustable posture: With a 360° rotating disc with limit, the posture of the welding torch can be adjusted in all directions.

3. High system integration: The welding machine main unit and the auxiliary hanging system are designed integratively, resulting in a neat appearance and good performance matching.

4. Extremely easy to operate: The counterbalance cancels out the self-weight, allowing women or young welders to easily operate large welding tongs.

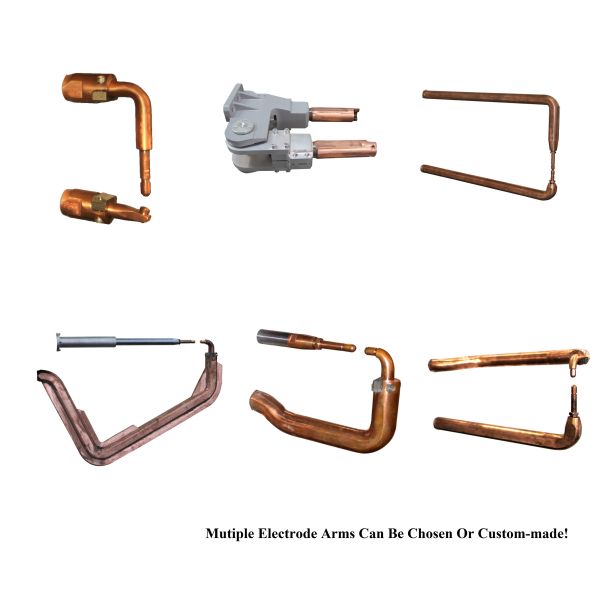

5. Turnkey project: from transformers to electrode caps, from balancers to water pipes, with a complete set of accessories, offering one-stop procurement.

Technical Parameters:

Models Item	DN2-31X	DN2-31C	DN2-40X	DN2-40C	DN2-63X	DN2-63C
Power at 50% (KVA)	31	31	40	40	63	63
Transformer turns ratio ( )	70	70	56	56	48	48
Maximum short circuit current (KA )	14	14	18	18	20	20
Secondary unload voltage ( V)	5.58	5.58	6.8	6.8	7.9	7.9
Voltage at 50Hz/60Hz (V )	380	380	380	380	380	380
Distance between the arms (mm )	168-288	100	168-328	100	168-428	100
Min. length of arms ( mm)	220	200	300	200	400	200
Max. strength at electrodes (N )	3000	3000	3500	3000	3500	3000
Working stroke (mm )	15-45	15-25	15-45	15-25	15-45	15-25
Max. stroke of cylinder (mm )	70	50	100	50	100	50
Max. arm length (mm )	750	350	1000	450	1100	500
Compressed air supply (MPa )	0.5	0.5	0.5	0.5	0.5	0.5
Max.thickness of mild steel sheet with min. length s arm (mm )	3+3	3+3	4+4	4 +4	5+5	5+5
With 500mm arms (mm )	2+2	2+2	3+3	3+3	3+3	3+3
With maximum length arms (mm )	1.2+2	1.2+1.2	2+2	1.8+1.8	2.0+2.0	2.0+2.0
Cross wire maximum (mm )	14+14	14+14	16+16	16+16	20+20	20+20
Cooling water pressure ( MPa)	0.2-0.3	0.2-0.3	0.2-0.3	0.2-0.3	0.2-0.3	0.2-0.3
Cooling water flow (L/min )	4	4	4	4	4	4

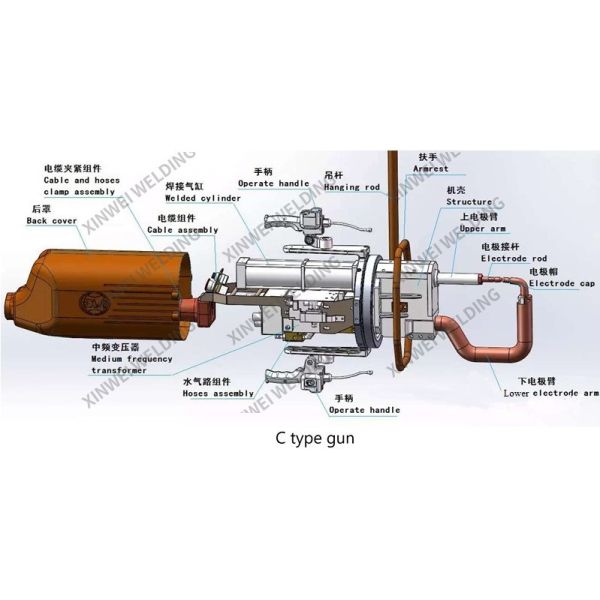

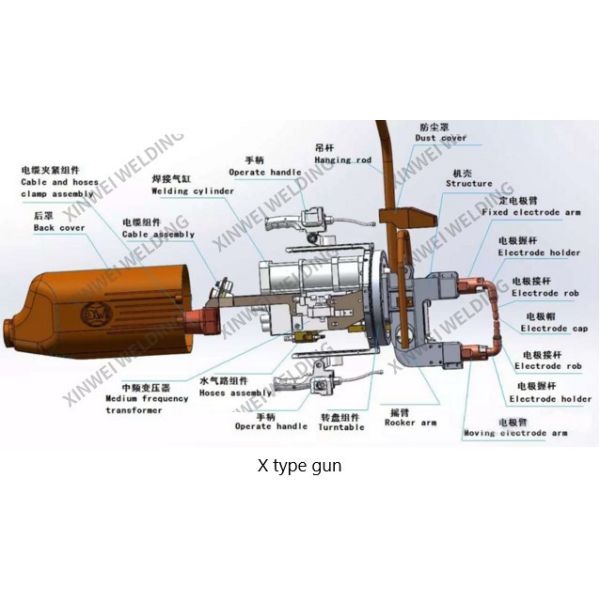

General Structures:
