Specifications
Brand Name :
XWH
Model Number :
D(N)B--100，D(N)B--160, D(N)B--200, D(N)B--250
Certification :
CE, RoHs
Place of Origin :
China
MOQ :
1
Price :
USD20000-USD25000
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
50 sets/month
Delivery Time :
30 working days
Packaging Details :
Wooden Case
Product name :
Energy Storage Spot Welding Machine
Application :
Welding Bolt
Function :
Nuts Welding
Machine type :
Pneumatic Projection Welding Machine
Keyword :
Capacitor Discharge Welder
Welding Material :
Steel Copper Aluminum
Feature :
High Efficiency
Warranty :
12 months Guarantee
After Warranty Service :
Video technical support, Online support and Spare parts
After-sales Service Provided :
Free spare parts, Field installation, commissioning and training
Description

Stud Bolt Capacitive Capacitor Discharge Energy Storage Nut Spot Welding Machine


Product Introduction:

Capacitive energy storage spot welding machine adopts advanced capacitive energy storage technology, instantly releasing strong and stable current, suitable for various fastener projection welding and conventional spot welding. Manual loading and unloading, automatic welding, combined with a 2000KG heavy-duty body, operate smoothly with uniform welding points, making it an ideal equipment for high-efficiency and high-quality welding.


Features:

1. The discharge of the capacitive energy storage system is rapidly concentrated, and the energy output is highly controllable, ensuring that each welding has a stable and reliable huge current.
2. Widely compatible with various fastener projection welding and conventional spot welding tasks, one machine for multiple purposes, suitable for diversified high standard welding needs.
3. The automated welding process, combined with manual loading and unloading, achieves the best balance between convenient operation and precise control, ensuring the efficiency of continuous operations.
4. The ultra heavy rigid body (2000KG) provides excellent mechanical stability, ensuring smooth welding power from the root and achieving uniform welding quality.


Technical Parameters:

Items Models DN(B)-100 DN(B)-160 DN(B)-200 DN(B)-250
Rated power (KVA) 100 160 200 250
Power input(V) 3φAC 380V 3φAC 380V 3φAC 380V 3φAC 380V
Max. short circuit current (KA) 30 35 40 45
Duty cycle(%) 50 50 50 50
Max. force(N) 6000 6000 10000 15000
Electrode length( MM) 450 450 450 500
Working stroke( MM) 80 80 80 80
Cooling consumption(L/min) 20 20 20 20
Max. welding capacity(MM) 3.0+3.0 4.0+4.0 5.0+5.0 6.0+6.0


General Structures:

Stud Bolt Capacitive Capacitor Discharge Energy Storage Nut Spot Welding Machine

Stud Bolt Capacitive Capacitor Discharge Energy Storage Nut Spot Welding Machine

Detailed Images:

Stud Bolt Capacitive Capacitor Discharge Energy Storage Nut Spot Welding Machine

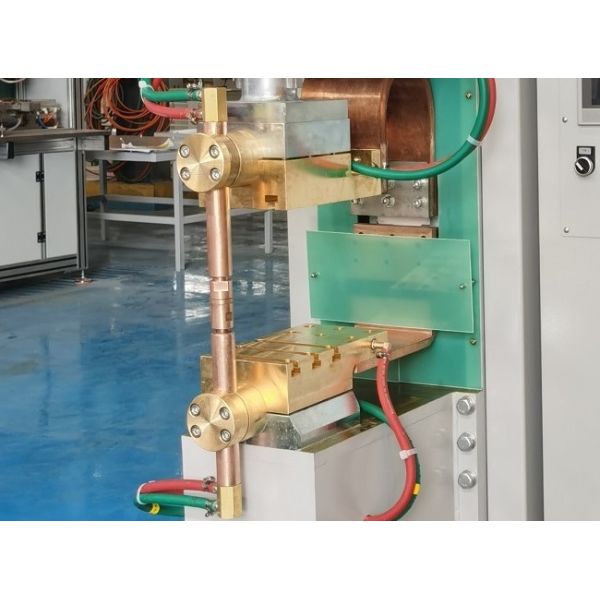

The Upper Electrode:The upper electrode moves vertically up and down in the linear guide, with high precision in repeated positioning, thus ensuring accurate welding points. Adopting double-layer cylinder pressurization, welding pressure is sufficient and stable.


Stud Bolt Capacitive Capacitor Discharge Energy Storage Nut Spot Welding Machine

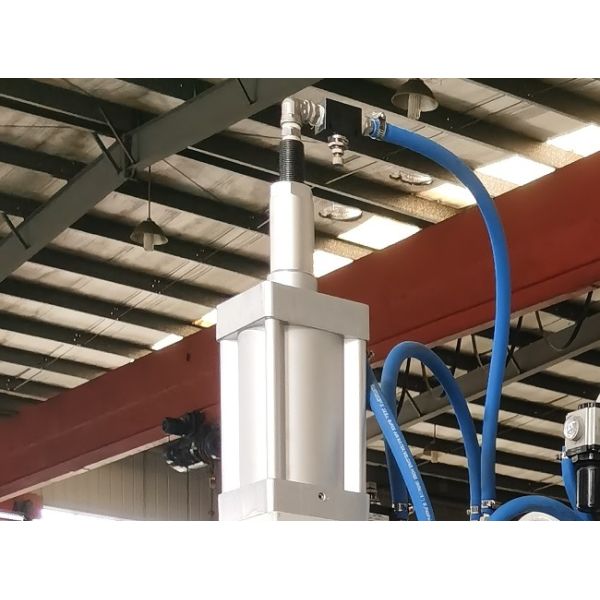

Cylinders:The cylinder adopts a combination of aluminum alloy cylinder barrel, low damping sealing ring, and light friction ring, with wear-resistant surface and long service life, achieving extremely high spot welding speed, electrode pressurization, smooth and fast.


Stud Bolt Capacitive Capacitor Discharge Energy Storage Nut Spot Welding Machine

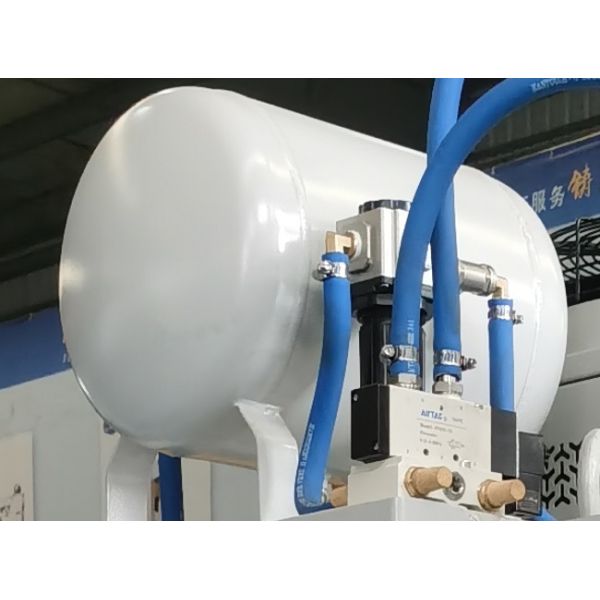

Gas Storage Tanks:Dual backup dedicated gas storage tanks, greatly reducing welding pressure fluctuations and ensuring stable welding force.


Stud Bolt Capacitive Capacitor Discharge Energy Storage Nut Spot Welding Machine

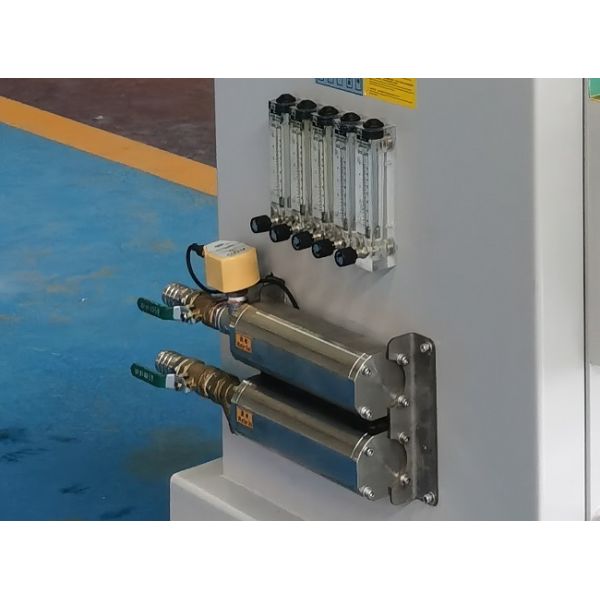

Waterway Components: All waterway components undergo surface treatment to prevent rusting, and waterway drainage is independently discharged to the water tank. Based on the outflow situation, blockages in the waterway can be observed and eliminated.

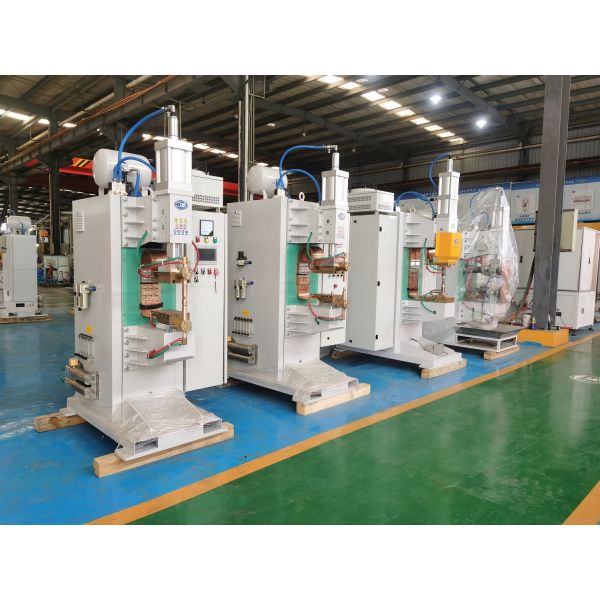

Scene Images:

Stud Bolt Capacitive Capacitor Discharge Energy Storage Nut Spot Welding Machine

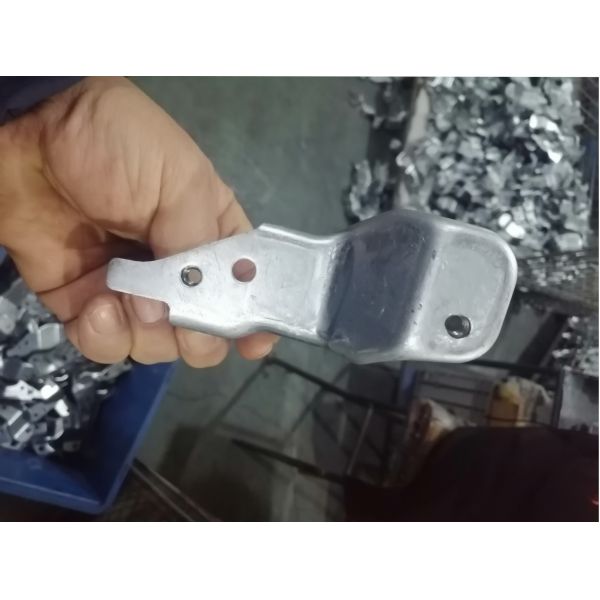

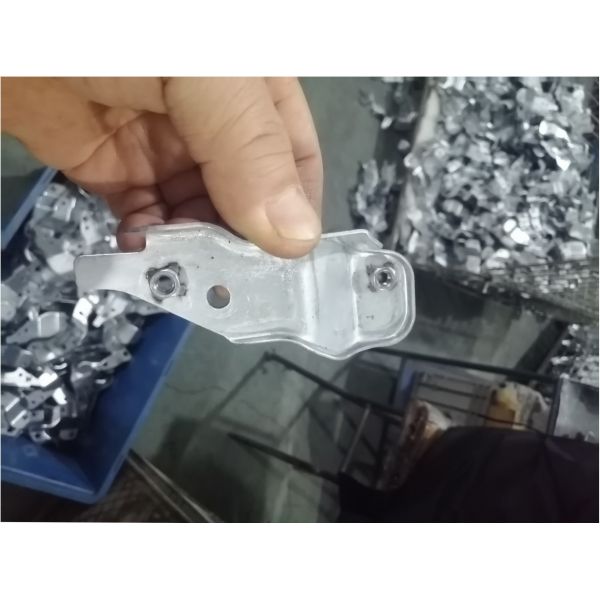

Welding Test:

Stud Bolt Capacitive Capacitor Discharge Energy Storage Nut Spot Welding Machine

Stud Bolt Capacitive Capacitor Discharge Energy Storage Nut Spot Welding Machine


Stud Bolt Capacitive Capacitor Discharge Energy Storage Nut Spot Welding Machine

FAQ:

1. When can you arrange shippment?
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.

2.Do you inspect the finished products?
Yes, each step of production products will be came out inspection by QC department before shipping.

3.Are you factory?
Yes, we are factory, all machine is made by ourself and we can provide customize service according to your requirement.

4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.

5. How to contact you?
You can send a mail for us and call us.

6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.

7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.

8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.
