High Freqauency Aluminum Iron Spot Welders Welding Machine For Fuel Tank
High Freqauency Aluminum Iron Spot Welders Welding Machine For Fuel Tank
High Freqauency Aluminum Iron Spot Welders Welding Machine For Fuel Tank
High Freqauency Aluminum Iron Spot Welders Welding Machine For Fuel Tank
Specifications
Brand Name :
XWH
Model Number :
D(N)B--160, D(N)B--200, D(N)B--250
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
USD35000-USD40000
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
50 sets/month
Delivery Time :
15 working days
Packaging Details :
Wooden Case
Product name :
Multi Head Spot Welding Machine
Welding Material :
Steel Copper Aluminum Etc
Feature :
High Efficiency
Machine type :
Resistance Welding Machine
AIndustrialpplication :
Fuel Thank Spot Welding
MOQ :
1 set
After Warranty Service :
Video technical support, Online support and Spare parts
After-sales Service Provided :
Free spare parts, Field installation, commissioning and training
Description

High Freqauency Aluminum Iron Spot Welders Welding Machine For Fuel Tank

High Freqauency Aluminum Iron Spot Welders Welding Machine For Fuel Tank



Product Introduction

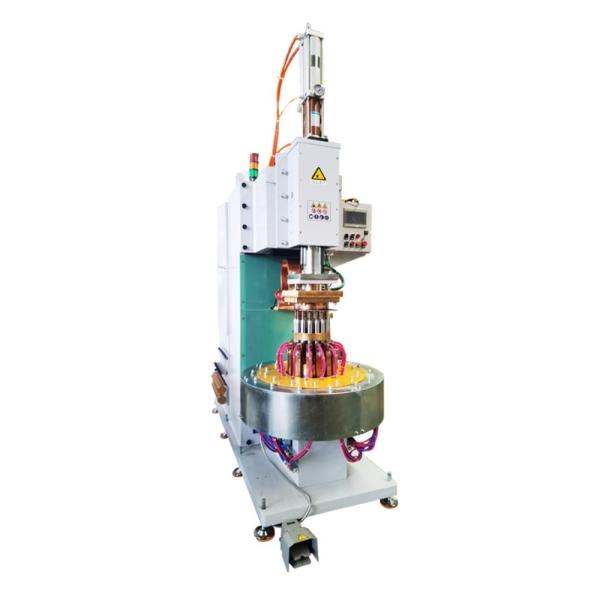

The multi head spot welder is customized for welding the car fuel tank. The welding machine is is mainly composed of welding equipment host, welding fixture, welding power supply system, PLC electrical control system and other components.

This type of welding machine is widely used in aerospace, automobile and automobile parts manufacturing,new energy and power battery and other special areas of high quality welding requirements.



Technical Parameters

Models/Item D(N)B--160 D(N)B--200 D(N)B--250
Rated power (KVA) 160 200 250
Power input(V) 3φAC 380V 3φAC 380V 3φAC 380V
Max. short circuit current(KA) 40 40 45
Max. force (N) 6000 10000 15000
Electrode length(MM) 450 450 500
Working stroke(MM) 80 80 80
Cooling consumption(L/min) 20 20 20
Max.welding capacity(MM) 4.0+4.0 5.0+5.0 6.0+6.0

Advantages

1. The welding current is DC. When there are inductive/magnetic materials in the secondary winding, the welding will not be affected;

2. The three-phase power supply is more adaptable to the fluctuation and voltage drop of the power grid;

3. Compared with power frequency’s power supply, it has more accurate and fast current control;

4. Faster reaching the set current: the intermediate frequency can be 20 times faster than the traditional power frequency when adjusting the welding current;

Structure

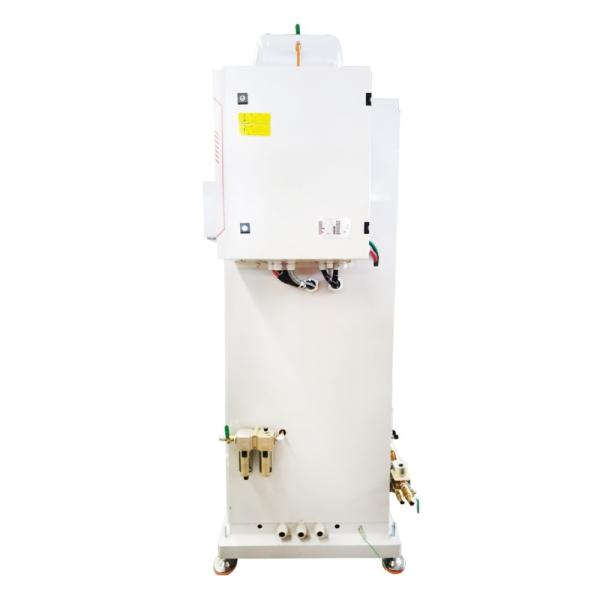

Welding equipment host, welding fixture, welding power supply system, PLC electrical control system and other components

High Freqauency Aluminum Iron Spot Welders Welding Machine For Fuel Tank

High Freqauency Aluminum Iron Spot Welders Welding Machine For Fuel Tank

Working Environment

The multi head spot welding equipment shall be placed in an environment free from direct sunlight, rain, dry ventilation and dust. Gas, steam, chemical deposition, mold and other explosive and corrosive media that seriously affect the use of the equipment shall be avoided as far as possible, and the equipment shall be kept away from violent vibration and turbulence.

Images

High Freqauency Aluminum Iron Spot Welders Welding Machine For Fuel Tank


Application

High Freqauency Aluminum Iron Spot Welders Welding Machine For Fuel Tank
Frequently Asked Questions
1. When can you arrange shippment?
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.

2.Do you inspect the finished products?
Yes, each step of production products will be came out inspection by QC department before shipping.

3.Are you factory?
Yes, we are factory, all machine is made by ourself and we can provide customize service according to your requirement.

4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.
5. How to contact you?
You can send a mail for us and call us.

6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.

7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.

8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.
