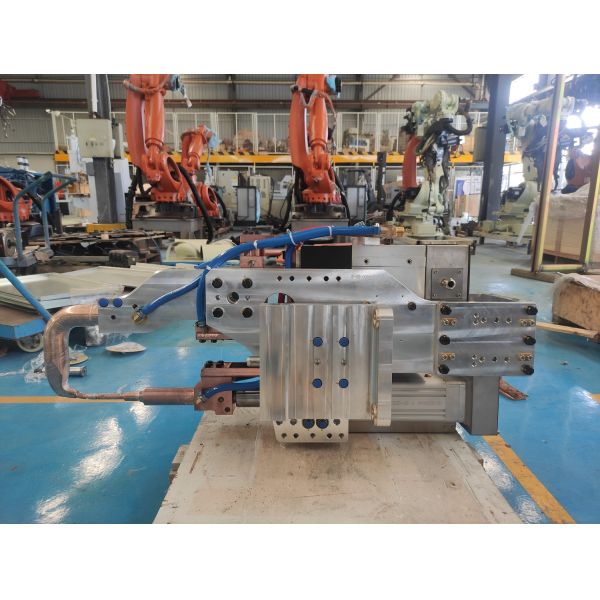

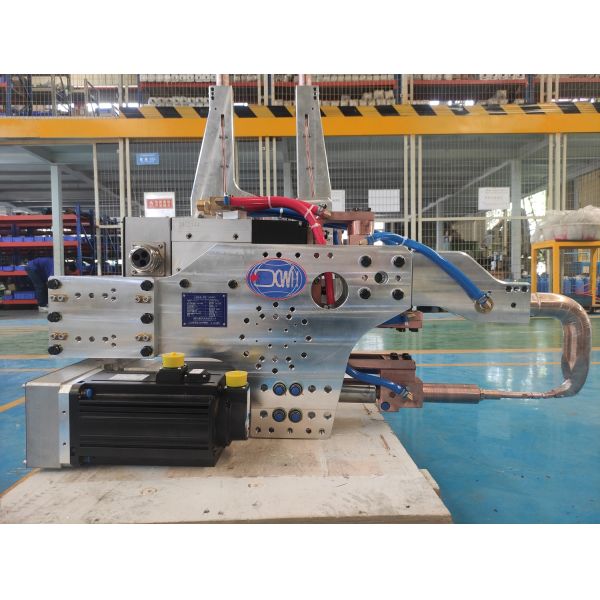

This Industrial CNC C-Type Robotic Spot Welder is a highly integrated welding workstation designed for the high-intensity, high-precision production demands of the automotive manufacturing industry. It deeply integrates the path programming capability of industrial robots, the structural rigidity of C-type welding guns, servo pressure control, and medium-frequency inverter welding technology. The gun's unique four-link floating compensation mechanism automatically adjusts the welding posture and compensates for electrode wear and workpiece tolerances, achieving adaptive precision welding that surpasses manual and ordinary mechanized methods. The workstation not only significantly reduces labor costs and enables 24/7 continuous operation but also, through its high-precision force and current control, delivers high-quality, low-spatter, well-formed welds on a variety of materials (0.1-5mm thick) including high-strength steel, aluminum, and galvanized metals. It is a professional solution for enhancing the automation level, weld quality, and overall efficiency of automotive body-in-white production lines

• Outstanding Productivity & Automation: A single unit can replace 3-5 workers, greatly improving labor productivity and enabling 24/7 continuous operation in harsh environments. One robot can control up to 3 welding guns, working in coordination with medium-frequency inverter welders for highly efficient operation.

• Precise Adaptive Welding Control: Welding force is driven by a servo motor and can be precisely set. The system features automatic current switching, preheat/weld/temper current settings, and current up-slope/down-slope, resulting in minimal spatter. It can weld a variety of materials with thicknesses from 0.1-5mm, achieving excellent results on high-strength steel, aluminum, and galvanized sheets.

• High Intelligence & Flexibility: Can store 32 welding programs for quick recall. Features include automatic dressing and electrode changing, single/continuous spot welding, weld/part counting, fault self-diagnosis and protection, communication, and remote control. Installation and operation are straightforward.

• Reliable System Design & Maintainability: Welding arms are made of lightweight, high-strength materials like aviation aluminum. The highly integrated and intelligent circuit design includes built-in air switches and leakage detection, resulting in a low failure rate and easy maintenance. It is compatible with robots from any manufacturer
